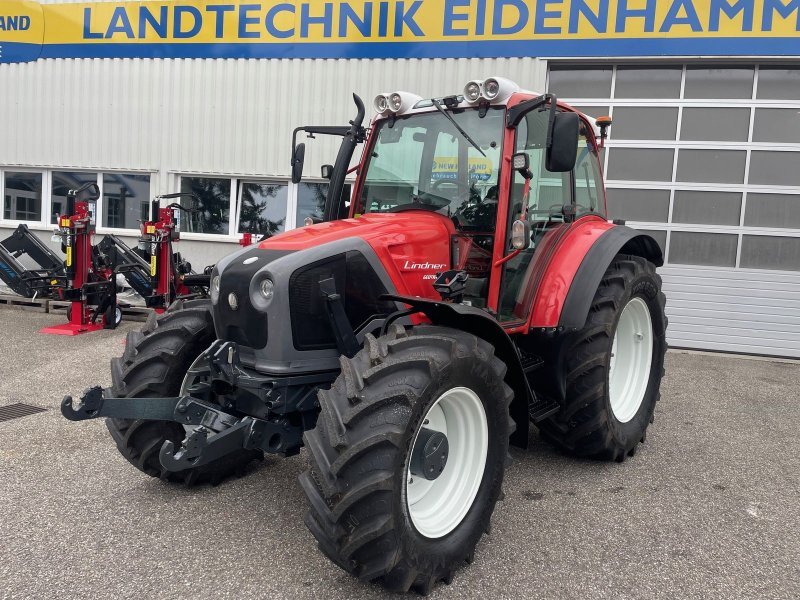

Lindner Geotrac 94

Built: 2010 · Series: Serie 4

More machines from model year 2010

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Geotrac 94 from Lindner is part of the 4 series. Production: 2010. The engine delivers 102 hp (74.5 kW), has 4 cylinders, with a displacement of 4,400 cm³. Torque is 420 Nm. Rated speed is 2,200 rpm. The machine is 3,960 mm long, 2,120 mm wide and 2,600 mm high. The unladen weight is 3,950 kg. The wheelbase measures 2,280 mm. Top speed is 40 km/h. The tank holds 120 litres. The engine is water-cooled. Tyres: front 340/85-R24, rear 420/85-R34. The fuel is diesel. The Serie 4 series covers 3 models. Rated output within it ranges from 76 to 102 hp; the Geotrac 94 sits at the top of that range with 102 hp. Its immediate neighbours are the Geotrac 74 below it with 78 hp. Unladen weight within it ranges from 2,880 to 3,950 kg; here the Geotrac 94 sits at the top of that range with 3,950 kg. 48 Lindner models across 18 series are on record.

Lindner Series 4 – the Geotrac 64, 74 and 94 from Kundl: three- and four-cylinder diesels, 55 to 75 kW, lift capacity up to 3.5 t

Series 4 covers at Lindner the Geotrac range with the 64, 74 and 94 models, whose numbers denote the power class. Geotrac replaced the older Bergfreund ranges from the 1990s and remains aimed at mountain farming, with a compact build for use on tight and sloping ground.

Read on 4 more paragraphs

The register lists here 3 versions with 55 to 74.5 kW or 76 to 102 hp from three- to four-cylinder diesel engines of 3,300 to 4,400 cm³ displacement at rated speeds of 1,400 to 2,200 rpm. Unladen weights range from 2,880 to 3,950 kg, lift capacity from 2,800 to 3,500 kg, lengths from 3,201 to 3,960 mm, widths from 1,921 to 2,120 mm and heights from 2,365 to 2,600 mm.

With a compact build, a low centre of gravity and high manoeuvrability, the Geotrac range remains Lindner's answer to the demands of steep-slope farms, forestry and viticulture in the Alpine region, where standard tractors reach their limits.

On a used example, operating hours and service history of the diesel, clutch and gearbox condition, hydraulic tightness at the lift capacity used for front loaders and implements, and rust on chassis and mudguards after field use count; parts run through Lindner itself.

With lift capacities of 2,800 to 3,500 kg, Series 4 falls within the internationally standardised Category II of the ISO 730 three-point linkage, sufficient for the implements typical of mountain farming such as rotary tedders, balers and snow blowers. The PTO runs at 540 rpm as standard, and on the more powerful versions also at 1,000 rpm, which allows the use of higher-speed implements such as mulchers as well.

Sources: SpecCodex register, model data: Lindner Serie 4, Lindner

Technical data

Engine

Fueldieselcorrect
Power102 hp (74.5 kW)correct
Rated speed2,200 rpmcorrect
Torque420 Nmcorrect
Cylinders4correct
Displacement4,400 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,960 mmcorrect
Width2,120 mmcorrect
Height2,600 mmcorrect
Wheelbase2,280 mmcorrect
Unladen weight3,950 kgcorrect

Drivetrain and chassis

Gearbox16/8-Gang-ZF-STEYR-Lastschaltgetriebe mit Zweifach-Lastschaltungcorrect
Front tyres340/85-R24correct
Rear tyres420/85-R34correct
Top speed40 km/hcorrect

Working data

Fuel tank capacity120 lcorrect

Where this model stands

Power-to-weight ratio: 18.9 kW/t (74 kW / 4 t)

Power class: Large (100–180 hp)

Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Lindner Geotrac 94 have?

The Lindner Geotrac 94 delivers 102 hp.

How much does the Lindner Geotrac 94 weigh?

The unladen weight is 3,950 kg.

What engine does the Lindner Geotrac 94 have?

4 cylinders, 4,400 cm³ displacement, Diesel.

How fast does the Lindner Geotrac 94 go?

Top speed is 40 km/h.

What are the dimensions of the Lindner Geotrac 94?

3,960 mm × 2,120 mm × 2,600 mm.

When was the Lindner Geotrac 94 built?

Production years: 2010.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
