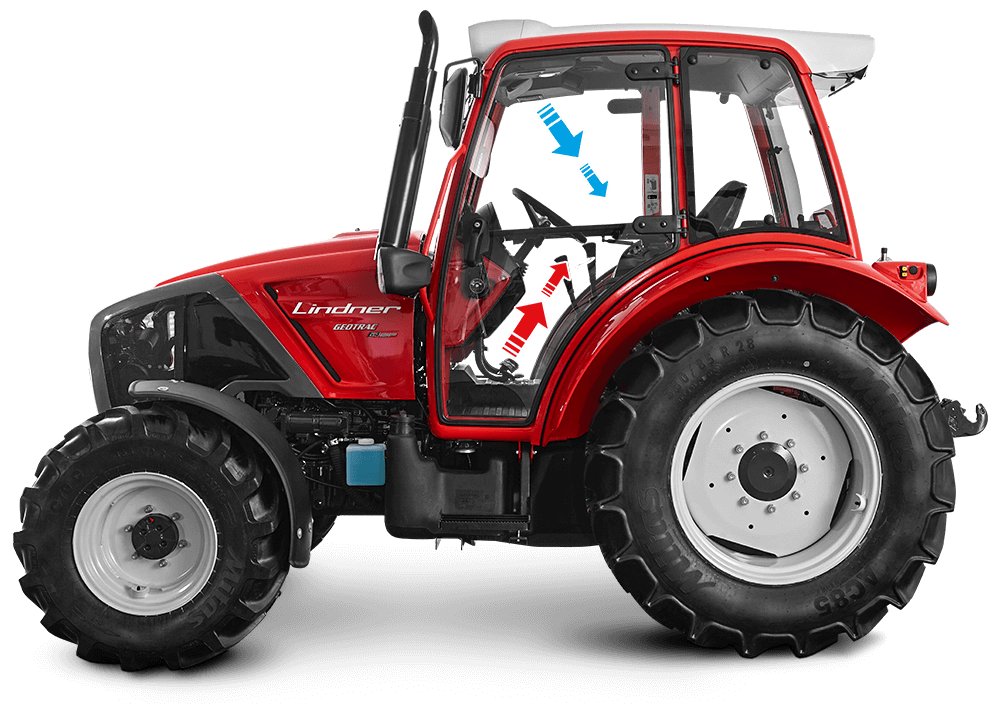

Lindner Geotrac 64

Built: 2010–2017 · Series: Serie 4

More machines from model year 2010

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Lindner Geotrac 64 is a model in the 4 series. Production: 2010–2017. The engine delivers 76 hp (55 kW), has 3 cylinders, with a displacement of 3,300 cm³. Rated speed is 1,400 rpm. The machine is 3,201 mm long, 1,921 mm wide and 2,365 mm high. The unladen weight is 2,880 kg. The wheelbase measures 2,083 mm. Top speed is 40 km/h. Lifting capacity is 2,800 kg. The engine is water-cooled. Tyres: front 365/70 R18, rear 380/85 R28. The fuel is diesel. The Serie 4 series covers 3 models. Rated output within it ranges from 76 to 102 hp; the Geotrac 64 sits at the bottom of that range with 76 hp. Its immediate neighbours are the Geotrac 74 above it with 78 hp. Unladen weight within it ranges from 2,880 to 3,950 kg; here the Geotrac 64 sits at the bottom of that range with 2,880 kg. 48 Lindner models across 18 series are on record.

Lindner Series 4 – the Geotrac 64, 74 and 94 from Kundl: three- and four-cylinder diesels, 55 to 75 kW, lift capacity up to 3.5 t

Series 4 covers at Lindner the Geotrac range with the 64, 74 and 94 models, whose numbers denote the power class. Geotrac replaced the older Bergfreund ranges from the 1990s and remains aimed at mountain farming, with a compact build for use on tight and sloping ground.

Read on 4 more paragraphs

The register lists here 3 versions with 55 to 74.5 kW or 76 to 102 hp from three- to four-cylinder diesel engines of 3,300 to 4,400 cm³ displacement at rated speeds of 1,400 to 2,200 rpm. Unladen weights range from 2,880 to 3,950 kg, lift capacity from 2,800 to 3,500 kg, lengths from 3,201 to 3,960 mm, widths from 1,921 to 2,120 mm and heights from 2,365 to 2,600 mm.

With a compact build, a low centre of gravity and high manoeuvrability, the Geotrac range remains Lindner's answer to the demands of steep-slope farms, forestry and viticulture in the Alpine region, where standard tractors reach their limits.

On a used example, operating hours and service history of the diesel, clutch and gearbox condition, hydraulic tightness at the lift capacity used for front loaders and implements, and rust on chassis and mudguards after field use count; parts run through Lindner itself.

With lift capacities of 2,800 to 3,500 kg, Series 4 falls within the internationally standardised Category II of the ISO 730 three-point linkage, sufficient for the implements typical of mountain farming such as rotary tedders, balers and snow blowers. The PTO runs at 540 rpm as standard, and on the more powerful versions also at 1,000 rpm, which allows the use of higher-speed implements such as mulchers as well.

Sources: SpecCodex register, model data: Lindner Serie 4, Lindner

Technical data

Engine

Fueldieselcorrect
Power76 hp (55 kW)correct
Rated speed1,400 rpmcorrect
Cylinders3correct
Displacement3,300 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,201 mmcorrect
Width1,921 mmcorrect
Height2,365 mmcorrect
Wheelbase2,083 mmcorrect
Unladen weight2,880 kgcorrect

Drivetrain and chassis

Drivefour-wheel drivecorrect
Gearbox16/8-Gang Optional: 16/16-Gangcorrect
Front tyres365/70 R18correct
Rear tyres380/85 R28correct
Top speed40 km/hcorrect

Working data

Lifting capacity2,800 kgcorrect

Where this model stands

Power-to-weight ratio: 19.1 kW/t (55 kW / 2.9 t)

Power class: Universal (40–100 hp)

Stronger than 51% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Lindner Geotrac 64 have?

The Lindner Geotrac 64 delivers 76 hp.

How much does the Lindner Geotrac 64 weigh?

The unladen weight is 2,880 kg.

What engine does the Lindner Geotrac 64 have?

3 cylinders, 3,300 cm³ displacement, Diesel.

How fast does the Lindner Geotrac 64 go?

Top speed is 40 km/h.

How much does the rear linkage of the Lindner Geotrac 64 lift?

The rear linkage lifts 2,800 kg.

What are the dimensions of the Lindner Geotrac 64?

3,201 mm × 1,921 mm × 2,365 mm.

When was the Lindner Geotrac 64 built?

Production years: 2010–2017.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
