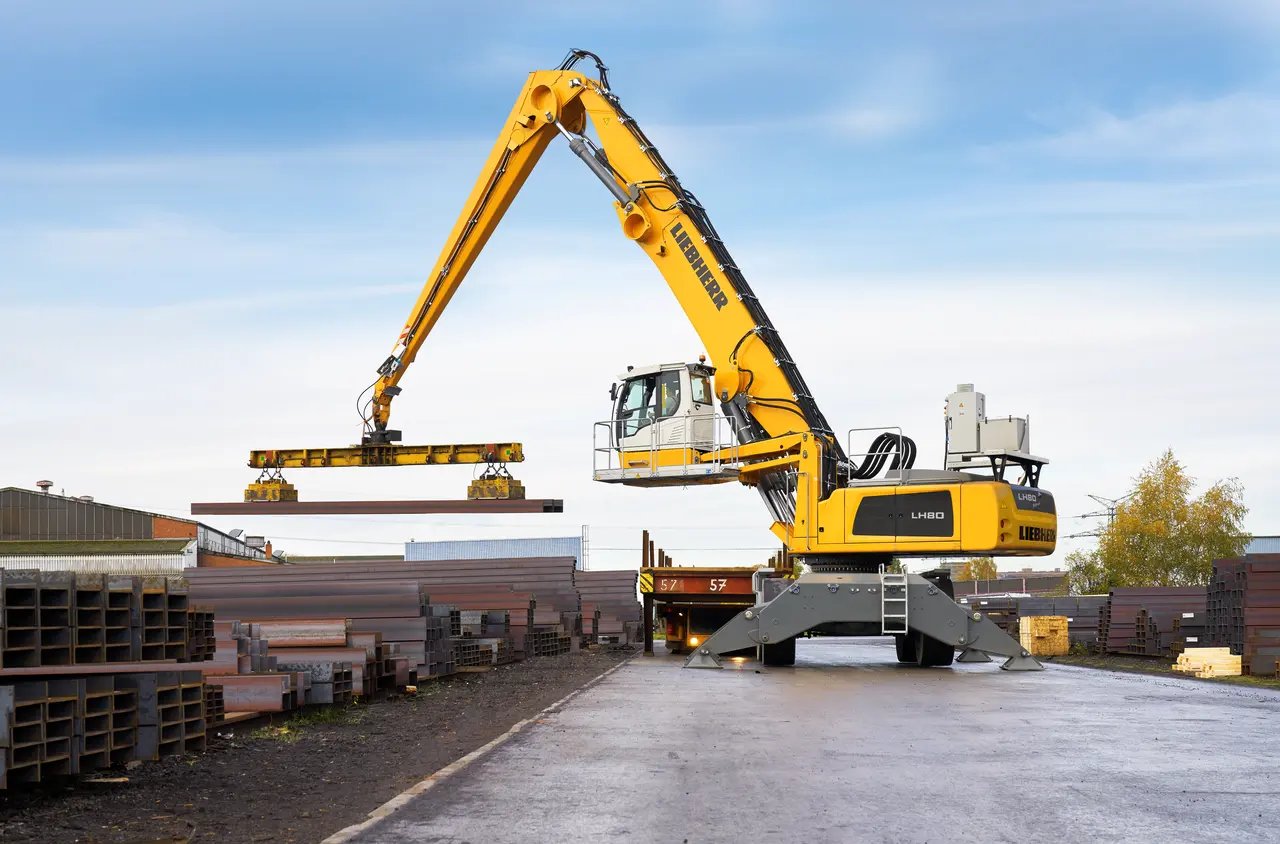

Liebherr LH80M-2 PORT LITRONIC

Series: Liebherr Material Handler

Source: https://www.liebherr.com/en-int/p/177047-5393391

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the LH80M-2 PORT LITRONIC, Liebherr offers a model from the Liebherr Material Handler series. The engine delivers 229.7 kW, with a displacement of 11,951.1 cm³. Rated speed is 1,800 rpm. The wheelbase measures 4,846.3 mm. Ground clearance is 480.1 mm. The tank holds 658.7 litres. The hydraulic tank holds 240.4 litres. The electrical system runs on 24 V. The engine fitted is the Liebherr D946. The Liebherr Material Handler series covers 51 models. Rated output within it ranges from 87.2 to 404.9 kW; the LH80M-2 PORT LITRONIC sits in the middle of that range with 229.7 kW. Its immediate neighbours are the A954BHD below it with 225.2 kW and the LH80C GANTRY INDUSTRY LITRONIC above it with 233.4 kW. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 10 verified figures from 1 source are on file.

Technical data

Engine

Engine modelLiebherr D946correct
Power229.7 kWcorrect
Rated speed1,800 rpmcorrect
Displacement11,951.1 cm³correct

Dimensions and weights

Wheelbase4,846.3correct
Ground clearance480.1correct

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Hydraulic oil capacity240.4 lcorrect
Fuel tank capacity658.7 lcorrect

Other data

Height3,657.6correct

Frequently asked questions

How much power does the Liebherr LH80M-2 PORT LITRONIC have?

The Liebherr LH80M-2 PORT LITRONIC delivers 230 kW.

What engine does the Liebherr LH80M-2 PORT LITRONIC have?

11,951 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
