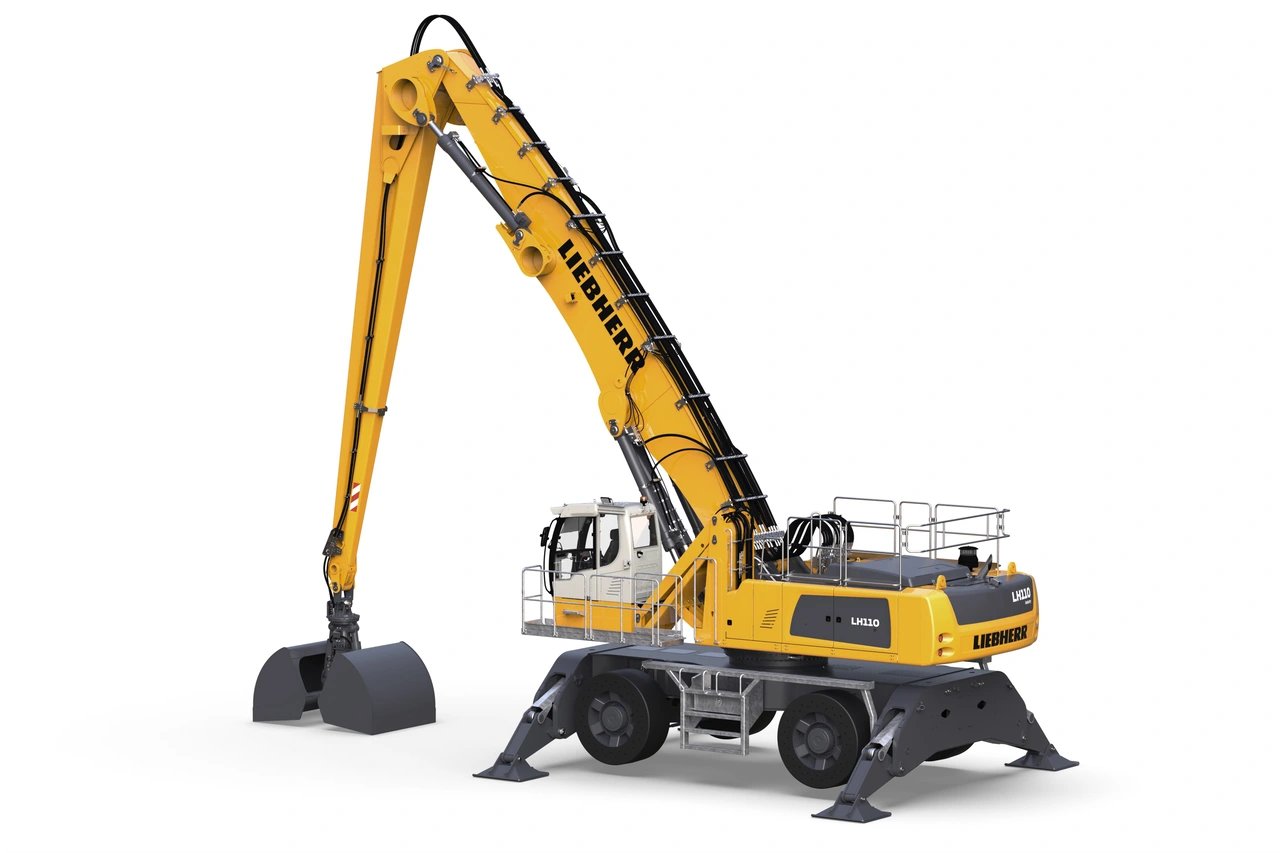

Liebherr LH110M PORT LITRONIC

Series: Liebherr Material Handler

Source: https://www.liebherr.com/en-int/p/68713-5393391

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr LH110M PORT LITRONIC belongs to the Liebherr Material Handler series. The engine delivers 407.6 hp (304.2 kW), has 6 cylinders. Rated speed is 1,800 rpm. The wheelbase measures 4,419.6 mm. Ground clearance is 563.9 mm. The tank holds 1,351.4 litres. The hydraulic tank holds 1,173.5 litres. The engine fitted is the D946. The Liebherr Material Handler series covers 51 models. Rated output within it ranges from 136.9 to 543.4 hp; the LH110M PORT LITRONIC sits in the upper part of that range with 407.6 hp. Its immediate neighbours are the A954CHD below it with 330.5 hp and the A974B above it with 496.8 hp. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 9 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD946correct
Power407.6 hp (304.2 kW)correct
Rated speed1,800 rpmcorrect
Cylinders6correct

Dimensions and weights

Wheelbase4,419.6correct
Ground clearance563.9correct

Working data

Hydraulic oil capacity1,173.5 lcorrect
Fuel tank capacity1,351.4 lcorrect

Frequently asked questions

How much power does the Liebherr LH110M PORT LITRONIC have?

The Liebherr LH110M PORT LITRONIC delivers 408 hp.

What engine does the Liebherr LH110M PORT LITRONIC have?

6 cylinders.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
