Leroy Somer FLSES200L

Series: FLSES

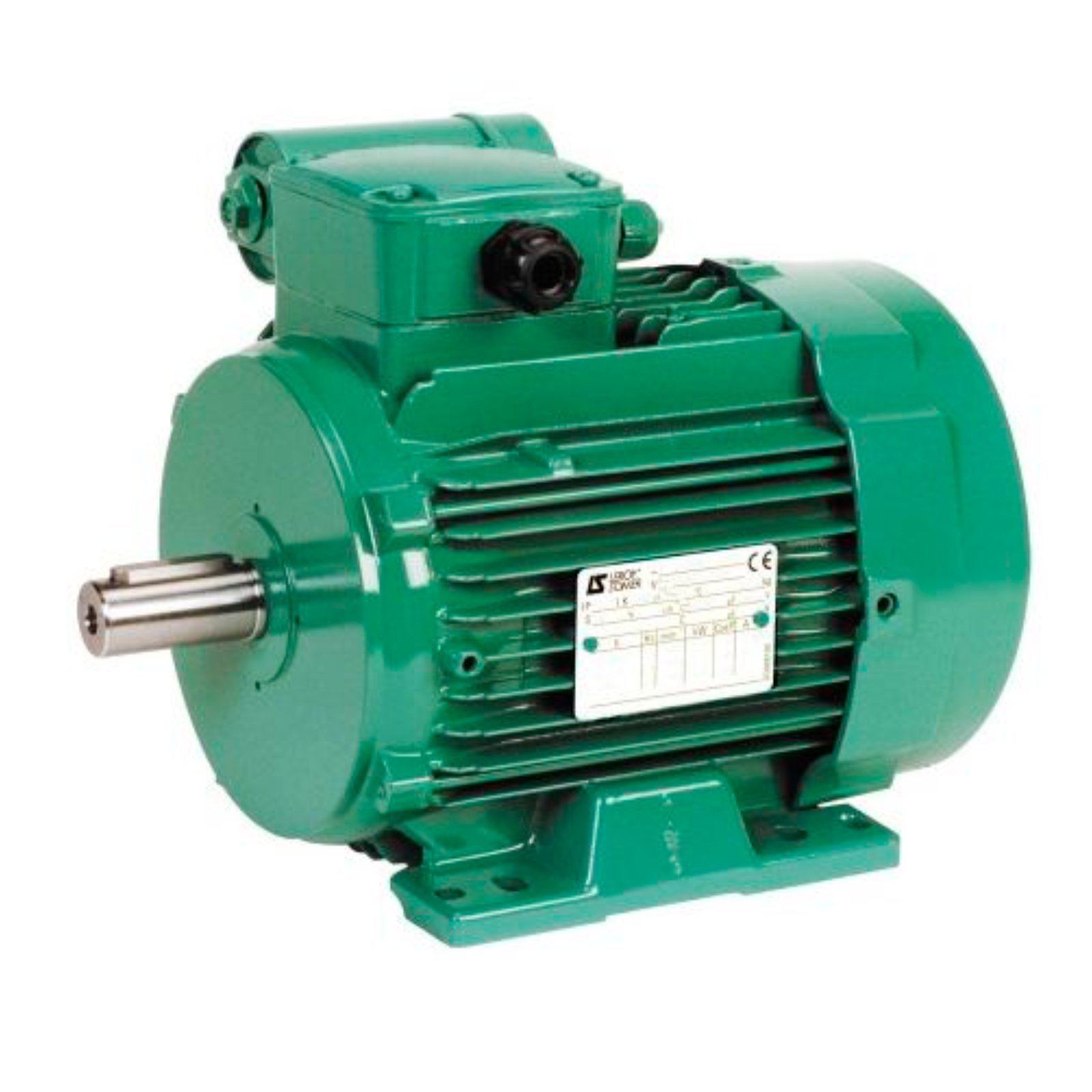

The photo shows the FLSES180L from the same series. Source: saluteh.by

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Leroy Somer FLSES200L is a three-phase induction motor. The rated output is 30 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 200 L in foot-mounted form. The protection class is IP55. The efficiency is 93.4 per cent at full load, 93.4 per cent at 75 per cent load and 92.3 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Leroy Somer range ranges from 0.75 to 160 kW; the FLSES200L sits in the lower part of that range with 30 kW. Its immediate neighbours are the LSES180LR below it with 22 kW and the FLSES225ST above it with 37 kW. 103 Leroy Somer models are on record.

Leroy Somer – FLSES series at a glance

The FLSES series from Leroy Somer comprises 12 models in the register, in the Electric motors group. Rated power ranges from 11 to 75 kW. Listed in the register: FLSES160L, FLSES160M, FLSES160MA, FLSES160MB.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output30 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size200 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load93.43 %correct
Efficiency at 75 % load93.41 %correct
Efficiency at half load92.31 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Leroy Somer FLSES200L have?

The Leroy Somer FLSES200L delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
