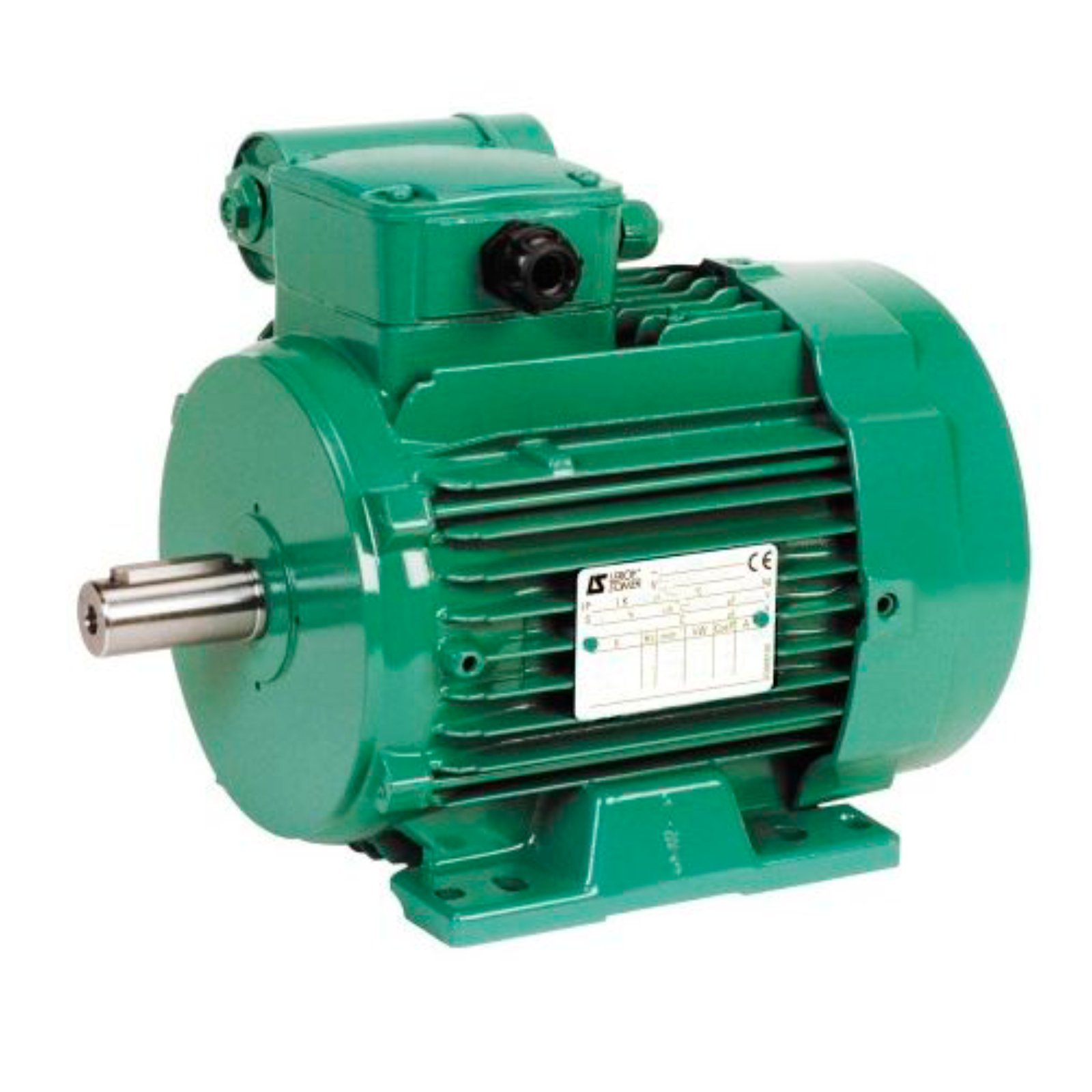

Leroy Somer FLSES160MA

Series: FLSES

Source: saluteh.by

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FLSES160MA from Leroy Somer is a three-phase induction motor. The rated output is 11 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 160 M in foot-mounted form. The protection class is IP55. The efficiency is 89.9 per cent at full load, 89.9 per cent at 75 per cent load and 88.4 per cent at half load. The motor weighs 97 kg. At full load it delivers 36 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B14 and B34. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Leroy Somer range ranges from 0.75 to 160 kW; the FLSES160MA sits at the bottom of that range with 11 kW. Its immediate neighbours are the LSES132MTI below it with 7.5 kW and the FLSES160L above it with 15 kW. 103 Leroy Somer models are on record.

Leroy Somer – FLSES series at a glance

The FLSES series from Leroy Somer comprises 12 models in the register, in the Electric motors group. Rated power ranges from 11 to 75 kW. Listed in the register: FLSES160L, FLSES160M, FLSES160MA, FLSES160MB.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output11 kWcorrect

Dimensions and weights

Weight97 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size160 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34, B34correct
Efficiency at full load89.92 %correct
Efficiency at 75 % load89.94 %correct
Efficiency at half load88.41 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Leroy Somer FLSES160MA have?

The Leroy Somer FLSES160MA delivers 11 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
