Lanz Bulldog – specifications
Built: 1921-1960 · Series: Other models
Data for the version built 1921-1960 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

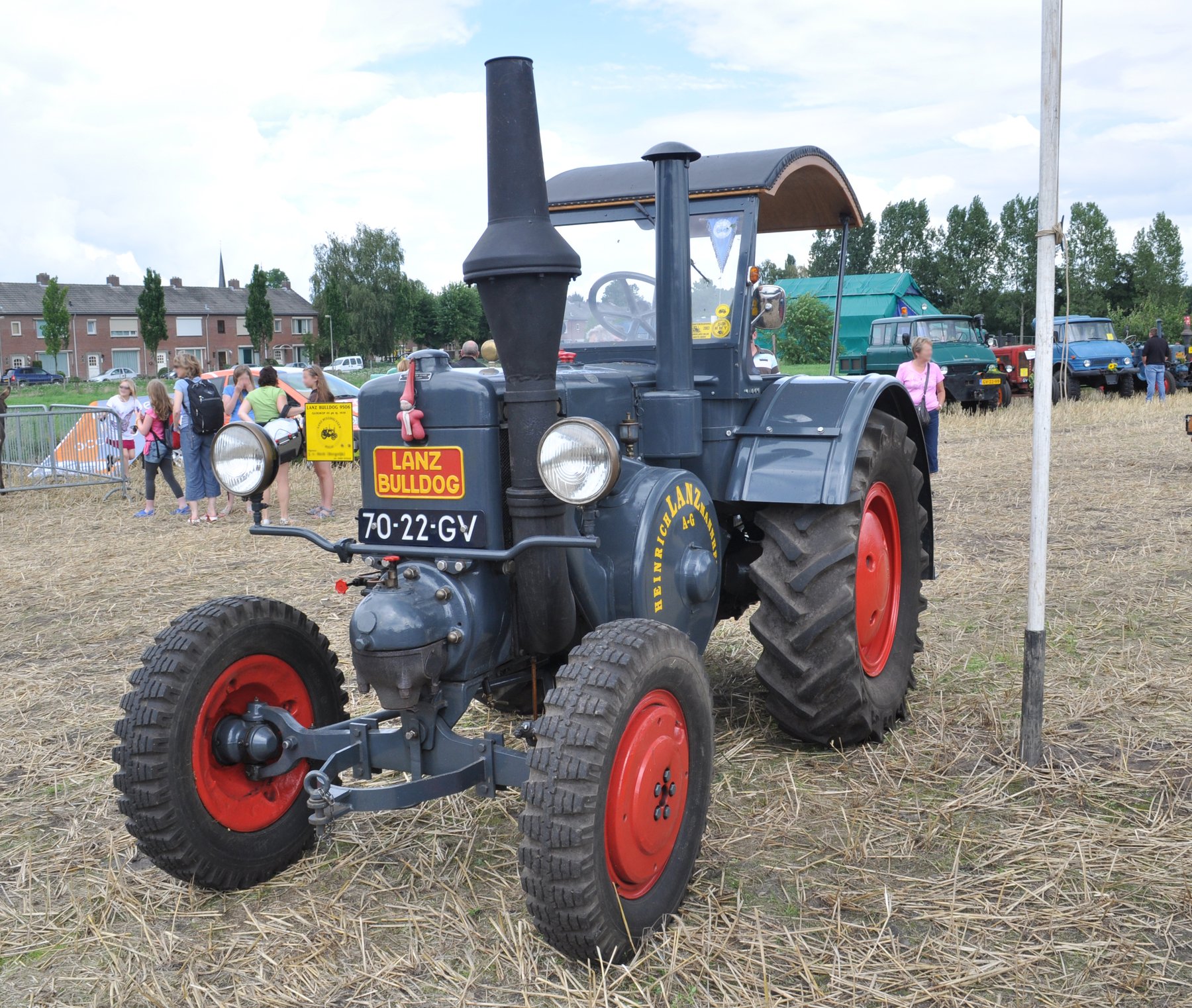

The Lanz Bulldog is a historical tractor manufactured at the Mannheim plant between 1921 and 1960. As a representative of early tractor development, this model significantly shaped the mechanization of agriculture in Germany. The series includes various variants that differ in performance and dimensions, yet all are based on the characteristic single-cylinder hot-bulb engine.
Technically, the Bulldog features a single cylinder with a displacement ranging from 6.3 liters to 10.9 liters, producing 12 to 54 hp at a rated speed of 500 rpm. This low speed generates high torque, which is crucial for heavy draft work in the field. The curb weight of 3,330 kg is distributed over a wheelbase of 1,805 mm and a width of 1,900 mm, ensuring stable ground contact. The top speed of 7.4 km/h is typical for the era and designed to meet the requirements of field work. Water cooling ensures a constant operating temperature even under prolonged load.
The transmission offers four forward gears and four reverse gears, allowing flexible adaptation to various soil conditions and working speeds. This number of gears enables the driver to precisely adjust the traction to the respective conditions without frequent shifting. The combination of high weight and low speed makes the tractor particularly suitable for heavy plowing and draft work, where stability and pulling power are paramount.
Lanz – other Bulldog models from Mannheim: the collective page of the Bulldog, HL, HM and HP types, single-cylinders of 3.8 to 6.4 litres, 6 to 16 kW, running on tar oil, crude oil, paraffin and diesel
This page gathers the Lanz Bulldog types the register could not assign to their own range: Bulldog, HL, HM and HP. Heinrich Lanz AG of Mannheim, a farm-machinery maker since 1859, launched the Bulldog in 1921 with its single-cylinder two-stroke hot-bulb engine, the first field tractor fit for mass production; in 1956 John Deere took over the works, which remains Deere's largest tractor plant outside North America to this day.
Read on 3 more paragraphs
The register lists here 4 versions with 5.9 to 16.1 kW or 8 to 12 hp from the throughout single-cylinder engine of 3,818 to 6,400 cm³ displacement at rated speeds of 420 to 500 rpm. Unladen weights range from 1,150 to 3,330 kg, lengths from 2,050 to 3,180 mm, widths from 1,250 to 1,900 mm and heights from 2,130 to 2,345 mm; fuels used were tar oil, crude oil, paraffin and diesel.
The Bulldog's hot-bulb engine burned practically any available raw fuel, making the tractor independent of diesel shortages and prices – a decisive advantage for farmers from the 1920s to the 1950s that helped make the Bulldog the most widely built German field tractor of its era.
On a used example, the condition of the hot bulb, cylinder liner and water jacket, tightness of the oil sump, condition of the large flywheel, and rust on chassis, mudguards and bonnet after decades of use count; parts for the single-cylinder Bulldogs are available through specialist Lanz Bulldog workshops and vintage-machinery dealers.
Sources: SpecCodex register, model data: Lanz (weitere Modelle)
Technical data
Engine
| Power | 12 - 54 hp (16.1 kW)correct |
|---|---|
| Rated speed | 500 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 6.3L - 10.9Lcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,180 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Height | 2,345 mmcorrect |
| Wheelbase | 1,805 mmcorrect |
| Unladen weight | 3,330 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 4V/4Rcorrect |
| Forward gears | 4correct |
| Reverse gears | 4correct |
| Top speed | 7.4 km/hcorrect |
Origin and approval
| Plant | Mannheim, Baden-Württemberg, Germanycorrect |
|---|
Where this model stands
Power-to-weight ratio: 4.8 kW/t (16 kW / 3.3 t)
Power class: Compact (< 40 hp)
Stronger than 9% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lanz Bulldog have?
The Lanz Bulldog delivers 16.1 kW.
How much does the Lanz Bulldog weigh?
The unladen weight is 3,330 kg.
What engine does the Lanz Bulldog have?
1 cylinders.
How fast does the Lanz Bulldog go?
Top speed is 7.4 km/h.
What are the dimensions of the Lanz Bulldog?
3,180 mm × 1,900 mm × 2,345 mm.
When was the Lanz Bulldog built?
Production years: 1921-1960.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
