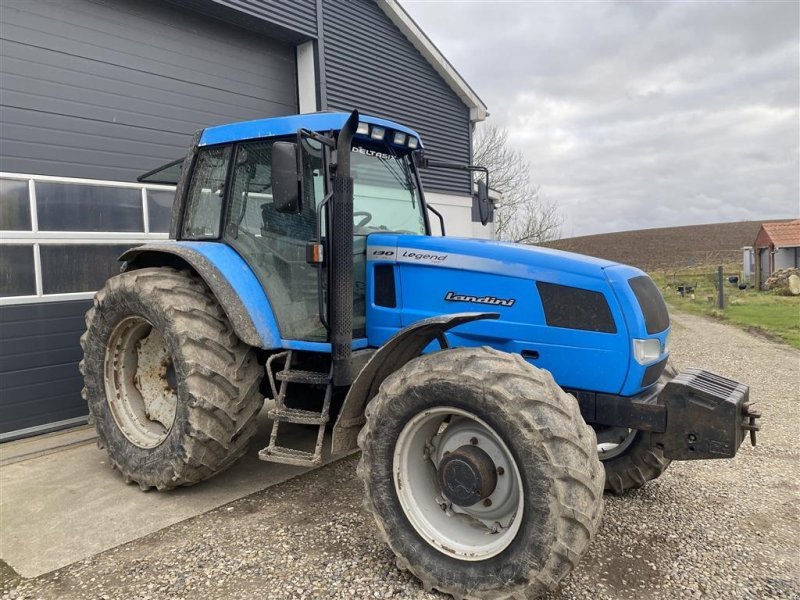

Landini 130 DT

Built: 1993–1997 · Series: LEGEND

More machines from model year 1993

Source: https://www.technikboerse.com/marke/landini-687 technikboer

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Landini 130 DT belongs to the LEGEND series. Production: 1993–1997. The engine delivers 125 hp (91.9 kW), has 6 cylinders, with a displacement of 5,985 cm³. Torque is 457 Nm. Rated speed is 2,200 rpm. The machine is 5,420 mm long, 2,340 mm wide and 2,580 mm high. The unladen weight is 5,970 kg. The wheelbase measures 2,650 mm. Ground clearance is 520 mm. Top speed is 40 km/h. Transmission: 36 V/36 R or 72 V/72 R. The engine is water-cooled. Tyres: front 420/70 R 28 AS, rear 520/70 R 38 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 127 mm. Maximum torque is reached at 1,300 rpm. Construction: unit construction (no separate frame). The LEGEND series covers 9 models. Rated output within it ranges from 103 to 160 hp; the 130 DT sits in the lower part of that range with 125 hp. Its immediate neighbours are the 105 DT below it with 103 hp and the 165 DT above it with 160 hp. Unladen weight within it ranges from 5,410 to 5,970 kg; here the 130 DT sits at the top of that range with 5,970 kg. 222 Landini models across 35 series are on record.

Landini Legend – Italian large tractors from Fabbrico: six-cylinders from 76 to 118 kW, DT denoting permanent four-wheel drive

Landini builds the Legend series at the Fabbrico plant in the province of Reggio Emilia, the brand's traditional home, now part of the Argo Tractors group alongside McCormick and Valpadana. The DT suffix stands for Doppia Trazione, four-wheel drive, and appears on most Legend models such as the 105 DT, 130 DT and 165 DT. The number in the type designation follows the rated output, while TECHNO denotes a higher specification variant.

Read on 3 more paragraphs

The register lists here 9 versions with 75.8 to 117.7 kW (103 to 125 hp) from six-cylinders of 5,985 cm³, unladen weights of 5,410 to 5,970 kg, lengths of 4,780 to 5,420 mm, widths of 2,340 to 2,480 mm and heights of 2,580 to 2,890 mm.

The Legend series was Landini's offering in the upper power segment and competed with Fendt, John Deere and its sister brand McCormick; the large-displacement six-cylinder engines were built for drawbar pull in heavy tillage and work with large implements.

When buying Legend models used, what counts is the condition of the four-wheel drive and transfer gearbox, the tightness of the hydraulics, rust on wings and cab frame, and the service history of the six-cylinder engine; spare parts run through Landini's Argo Tractors dealer network. The condition of the PTO and trailer brake valves also belongs on the checklist, along with the seals of the cooling system.

Sources: SpecCodex register, model data: Landini Legend, Landini (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	125 hp (91.9 kW)correct
Rated speed	2,200 rpmcorrect
Torque	457 Nmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	6correct
Displacement	5,985 cm³correct
Bore	100 mmcorrect
Stroke	127 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,420 mmcorrect
Width	2,340 mmcorrect
Height	2,580 mmcorrect
Wheelbase	2,650 mmcorrect
Ground clearance	520 mmcorrect
Unladen weight	5,970 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	36 V/36 R or 72 V/72 Rcorrect
Front tyres	420/70 R 28 AScorrect
Rear tyres	520/70 R 38 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15.4 kW/t (92 kW / 6 t)

Power class: Large (100–180 hp)

Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Landini 130 DT have?

The Landini 130 DT delivers 125 hp.

How much does the Landini 130 DT weigh?

The unladen weight is 5,970 kg.

What engine does the Landini 130 DT have?

6 cylinders, 5,985 cm³ displacement, Diesel.

How fast does the Landini 130 DT go?

Top speed is 40 km/h.

What are the dimensions of the Landini 130 DT?

5,420 mm × 2,340 mm × 2,580 mm.

When was the Landini 130 DT built?

Production years: 1993–1997.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
