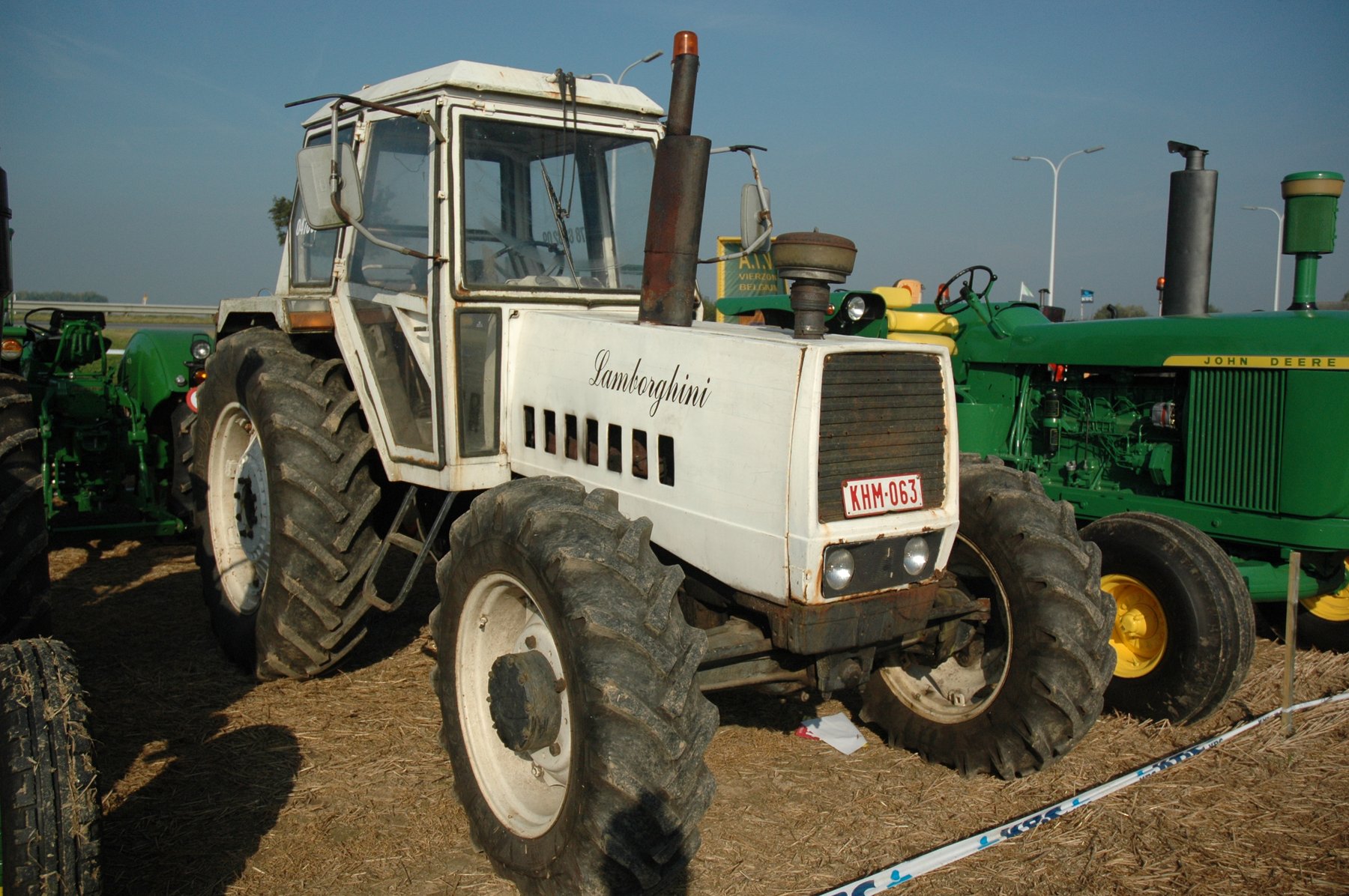

Lamborghini R-475 (DT)

Built: 1971–1973 · Series: Dritte R-Baureihe

More machines from model year 1971

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Lamborghini R-475 (DT) belongs to the Dritte R series. Production: 1971–1973. The engine delivers 74 hp (54.4 kW), has 4 cylinders, with a displacement of 4,561 cm³. Rated speed is 2,000 rpm. The machine is 3,790 mm long, 1,680 mm wide and 1,600 mm high. The unladen weight is 2,742 kg. The wheelbase measures 2,260 mm. Top speed is 25 km/h. The tank holds 65 litres. Transmission: 12 V/3 R. The engine is air-cooled. Tyres: front 7.50-16 ASF (DT: 9.5-24 AS), rear 14.9-30 AS. The fuel is diesel. The bore measures 110 mm. The stroke is 120 mm. The compression ratio is 17.5:1. Construction: unit construction (no separate frame). The gearbox offers 12 forward gears. There are also 3 reverse gears. Injection pressure is 180 bar. The linkage is category II. The PTO runs at 540/1000 rpm. Around 34 (DT: 73) units were built. The Dritte R-Baureihe series covers 3 models. Rated output within it ranges from 62 to 83 hp; the R-475 (DT) sits in the middle of that range with 74 hp. Its immediate neighbours are the R-365 (DT) below it with 62 hp and the R-485 (DT) above it with 83 hp. Unladen weight within it ranges from 2,537 to 3,025 kg; here the R-475 (DT) sits in the middle of that range with 2,742 kg. 136 Lamborghini models across 28 series are on record.

Lamborghini third R range – three- and four-cylinder four-wheel-drive tractors from Pieve di Cento: the R-365, R-475 and R-485 (DT), 45.6 to 61 kW, 2.5 to 3 t unladen weight

The third R range from Lamborghini Trattori of Pieve di Cento continued the R model family with the R-365, R-475 and R-485 types, each in DT form with the brand's typical standard four-wheel drive, Doppia Trazione. The range combined three- and four-cylinder diesels in a mid power segment and was aimed at farms needing sure pulling power even on tougher ground, from hillside grassland to heavier arable soils.

Read on 3 more paragraphs

The register lists here 3 versions with 45.6 to 61 kW output at a uniform 2,000 rpm, from three- to four-cylinder diesels of 3,739 to 4,986 cm³. Unladen weights range from 2,537 to 3,025 kg, lengths from 3,620 to 3,790 mm, widths from 1,680 to 1,750 mm and heights from 1,530 to 1,600 mm; all three models run on diesel.

With standard four-wheel drive, the third R range sat in the mid power segment against similarly equipped models from group sister SAME as well as Fiat, Deutz-Fahr and Renault; the four-wheel drive made the tractors particularly suited to slopes and heavier soils.

On a used purchase of these four-wheel-drive tractors, the condition of the front axle with its transfer gearbox and drive shafts counts, the clutch and gearbox, the tightness of injection pump and cooling system, and rust on mudguards, bonnet and cab; parts run through the SAME Deutz-Fahr network.

Sources: SpecCodex register, model data: Lamborghini Dritte R-Baureihe, Lamborghini Trattori (SAME Deutz-Fahr, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	74 hp (54.4 kW)correct
Rated speed	2,000 rpmcorrect
Cylinders	4correct
Displacement	4,561 cm³correct
Bore	110 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17.5correct
Injection pressure	180 barcorrect
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,790 mmcorrect
Width	1,680 mmcorrect
Height	1,600 mmcorrect
Wheelbase	2,260 mmcorrect
Unladen weight	2,742 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	12 V/3 Rcorrect
Forward gears	12correct
Reverse gears	3correct
Front tyres	7.50-16 ASF (DT: 9.5-24 AS)correct
Rear tyres	14.9-30 AScorrect
Top speed	25 km/hcorrect

Working data

Fuel tank capacity	65 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	34 (DT: 73)correct

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 19.8 kW/t (54 kW / 2.7 t)

Power class: Universal (40–100 hp)

Stronger than 51% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Lamborghini R-475 (DT) have?

The Lamborghini R-475 (DT) delivers 74 hp.

How much does the Lamborghini R-475 (DT) weigh?

The unladen weight is 2,742 kg.

What engine does the Lamborghini R-475 (DT) have?

4 cylinders, 4,561 cm³ displacement, Diesel.

How fast does the Lamborghini R-475 (DT) go?

Top speed is 25 km/h.

What are the dimensions of the Lamborghini R-475 (DT)?

3,790 mm × 1,680 mm × 1,600 mm.

When was the Lamborghini R-475 (DT) built?

Production years: 1971–1973.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
