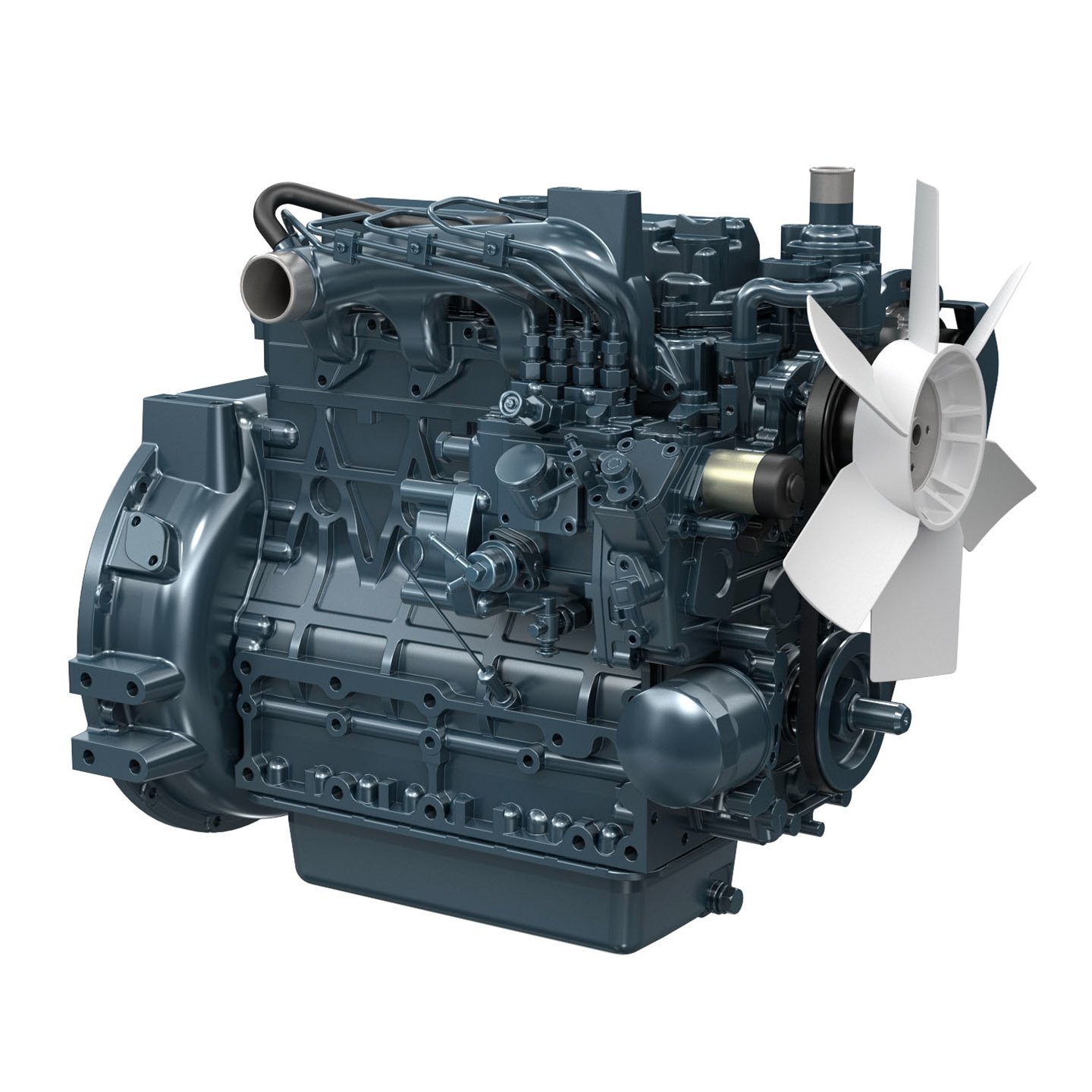

Kubota V2003-M-ET – specifications
Built: 2012 · Series: Other models
The Kubota V2003-M-ET is a machine built by Kubota. Production: 2012. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 31 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Kubota range ranges from 4 to 155 kW; the V2003-M-ET sits in the lower part of that range with 31 kW. Its immediate neighbours are the V2403-M-BG-ET below it with 30 kW and the V1505-T-ET above it with 33 kW. 1112 Kubota models across 46 series are on record.
Data for the version built 2012 · Data origin: Official register · sources
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Reading a Kubota engine — the letter is the cylinder count
On Kubota industrial engines the first letter gives the number of cylinders: Z for two, D for three, V for four. The number that follows gives the displacement. A Z482 is therefore a twin of 0.479 litres, a D722 a three-cylinder of 0.719 litres, a V1505 a four-cylinder of around 1.5 litres and a V2403 a four-cylinder of 2,434 cc. Know the scheme and the designation alone tells you the layout.
Read on 3 more paragraphs
The engines fall into families. The Super Mini series covers the Z482, Z602, D722 and D902 — the smallest units, designed for compact dimensions and quiet running. The 05 series spans D905 to V1505, the 03 series D1403 to V2403. Within a family many components are shared, which eases servicing and parts supply.
These engines rarely work alone. They sit in mini excavators, compact loaders, generators, sweepers and access platforms — wherever tight space meets high operating hours. The Z482 even powers light vehicles from the French manufacturer Aixam; the turbocharged V1505 works in the SHERP amphibious vehicle.
When buying a used machine it is therefore worth reading the engine plate rather than the machine name: parts availability follows the engine type, not the device it sits in.
Sources: Kubota Engine, Encyclopedia MDPI: Kubota Engines, Typhon Machinery
Technical data
Engine
| Engine code | V2003-M-ET04correct |
|---|---|
| Engine family | CKBXL02.0FCDcorrect |
| Engine families | CKBXL02.0FCDcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 31 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 2,700 rpmcorrect |
| Maximum torque | 130.3 N·mcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 83 mmcorrect |
| Stroke | 92.4 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | V2003-M-ET04correct |
|---|---|
| Built from | 2012correct |
| Built to | 2012correct |
| Model year from | 2012correct |
| Model year to | 2012correct |
| Sales region | bothcorrect |
