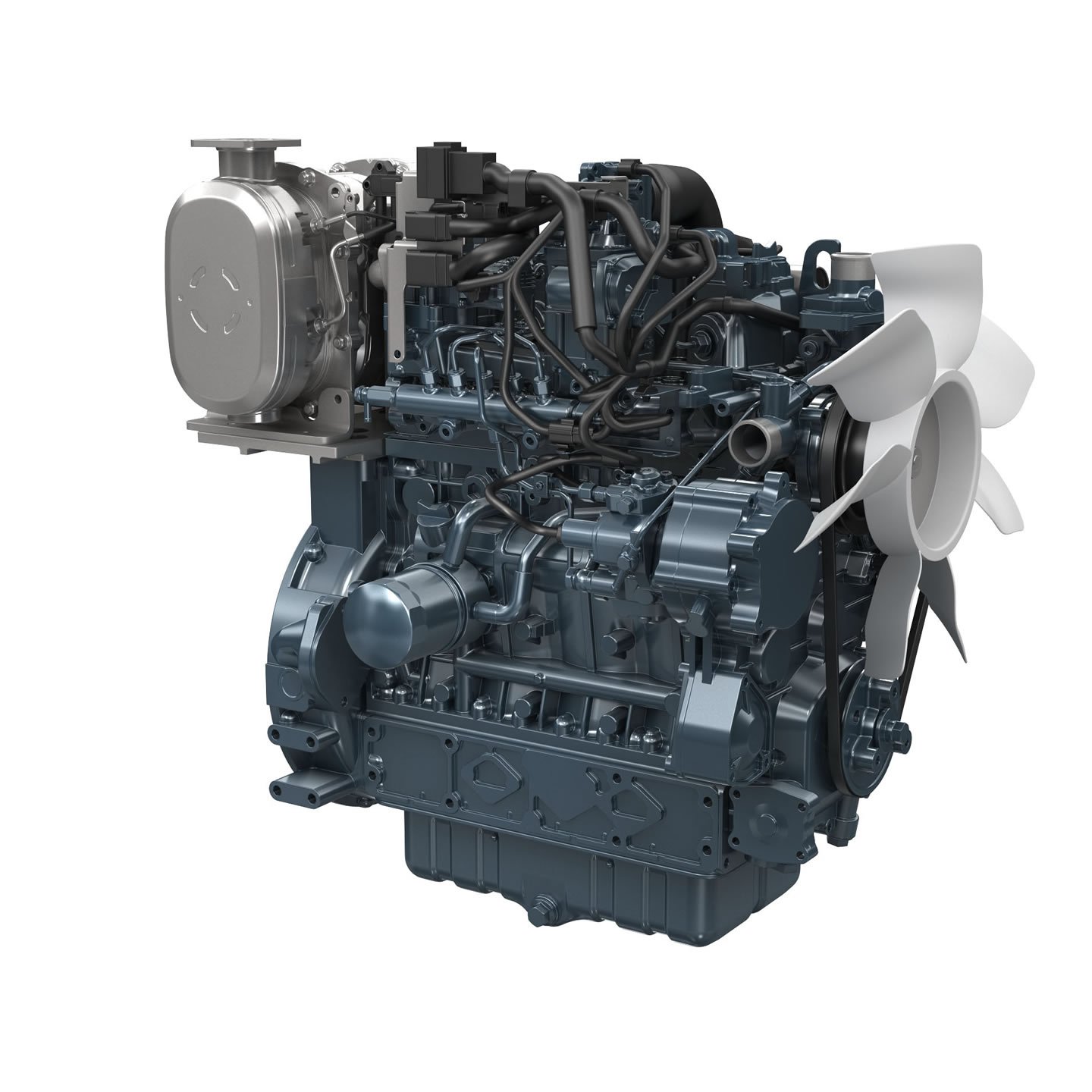

Kubota C2.4-CR-EF – specifications
Built: 2016-2026 · Series: Other models
The Kubota C2.4-CR-EF is a machine built by Kubota. Production: 2016-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 34 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Kubota range ranges from 4 to 155 kW; the C2.4-CR-EF sits in the lower part of that range with 34 kW. Its immediate neighbours are the V2403-M-DI-ET below it with 33 kW and the D1803-CR-TI-EW above it with 35 kW. 1112 Kubota models across 46 series are on record.
Data for the version built 2016-2026 · Data origin: Official register · sources
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Reading a Kubota engine — the letter is the cylinder count
On Kubota industrial engines the first letter gives the number of cylinders: Z for two, D for three, V for four. The number that follows gives the displacement. A Z482 is therefore a twin of 0.479 litres, a D722 a three-cylinder of 0.719 litres, a V1505 a four-cylinder of around 1.5 litres and a V2403 a four-cylinder of 2,434 cc. Know the scheme and the designation alone tells you the layout.
Read on 3 more paragraphs
The engines fall into families. The Super Mini series covers the Z482, Z602, D722 and D902 — the smallest units, designed for compact dimensions and quiet running. The 05 series spans D905 to V1505, the 03 series D1403 to V2403. Within a family many components are shared, which eases servicing and parts supply.
These engines rarely work alone. They sit in mini excavators, compact loaders, generators, sweepers and access platforms — wherever tight space meets high operating hours. The Z482 even powers light vehicles from the French manufacturer Aixam; the turbocharged V1505 works in the SHERP amphibious vehicle.
When buying a used machine it is therefore worth reading the engine plate rather than the machine name: parts availability follows the engine type, not the device it sits in.
Sources: Kubota Engine, Encyclopedia MDPI: Kubota Engines, Typhon Machinery
Technical data
Engine
| Engine code | C2.4-CR-EF04correct |
|---|---|
| Engine family | GKBXL02.4GNDcorrect |
| Engine families | HKBXL02.4GND; GKBXL02.4GND; PKBXL02.4GND; LKBXL02.4GND; NKBXL02.4GND; RKBXL02.4GND; KKBXL02.4GND; JKBXL02.4GND; MKBXL02.4GNDcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 34 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 2,400 rpmcorrect |
| Maximum torque | 157.4 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 87 mmcorrect |
| Stroke | 102.4 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | C2.4-CR-EF04correct |
|---|---|
| Built from | 2016correct |
| Built to | 2024correct |
| Model year from | 2016correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
