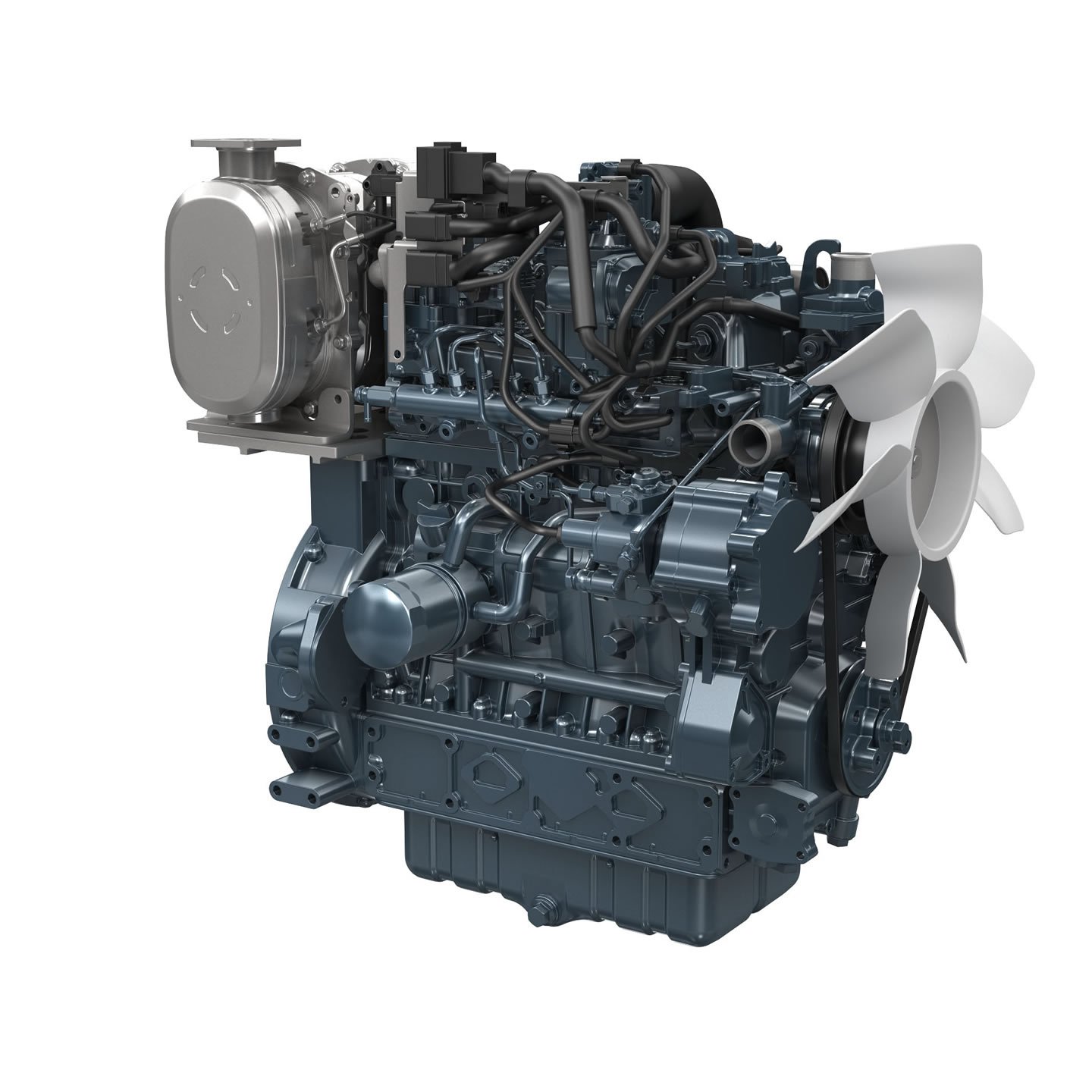

Kubota C3.8-CR-TI-DV
Built: 2023-2026 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Reading a Kubota engine — the letter is the cylinder count
On Kubota industrial engines the first letter gives the number of cylinders: Z for two, D for three, V for four. The number that follows gives the displacement. A Z482 is therefore a twin of 0.479 litres, a D722 a three-cylinder of 0.719 litres, a V1505 a four-cylinder of around 1.5 litres and a V2403 a four-cylinder of 2,434 cc. Know the scheme and the designation alone tells you the layout.
Read on 3 more paragraphs
The engines fall into families. The Super Mini series covers the Z482, Z602, D722 and D902 — the smallest units, designed for compact dimensions and quiet running. The 05 series spans D905 to V1505, the 03 series D1403 to V2403. Within a family many components are shared, which eases servicing and parts supply.
These engines rarely work alone. They sit in mini excavators, compact loaders, generators, sweepers and access platforms — wherever tight space meets high operating hours. The Z482 even powers light vehicles from the French manufacturer Aixam; the turbocharged V1505 works in the SHERP amphibious vehicle.
When buying a used machine it is therefore worth reading the engine plate rather than the machine name: parts availability follows the engine type, not the device it sits in.
Sources: Kubota Engine, Encyclopedia MDPI: Kubota Engines, Typhon Machinery
Technical data
Engine
| Engine code | C3.8-CR-TI-DV12correct |
|---|---|
| Engine family | SKBXL03.8C5Dcorrect |
| Engine families | SKBXL03.8C5D; RKBXL03.8C5D; TKBXL03.8C5D; PKBXL03.8C5Dcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 72 kWcorrect |
| Power band | 56<=kW<130correct |
| Rated speed | 2,400 rpmcorrect |
| Maximum torque | 330 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | C3.8-CR-TI-DV12correct |
|---|---|
| Built from | 2023correct |
| Built to | 2026correct |
| Model year from | 2023correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Kubota C3.8-CR-TI-DV have?
The Kubota C3.8-CR-TI-DV delivers 72 kW.
When was the Kubota C3.8-CR-TI-DV built?
Production years: 2023-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
