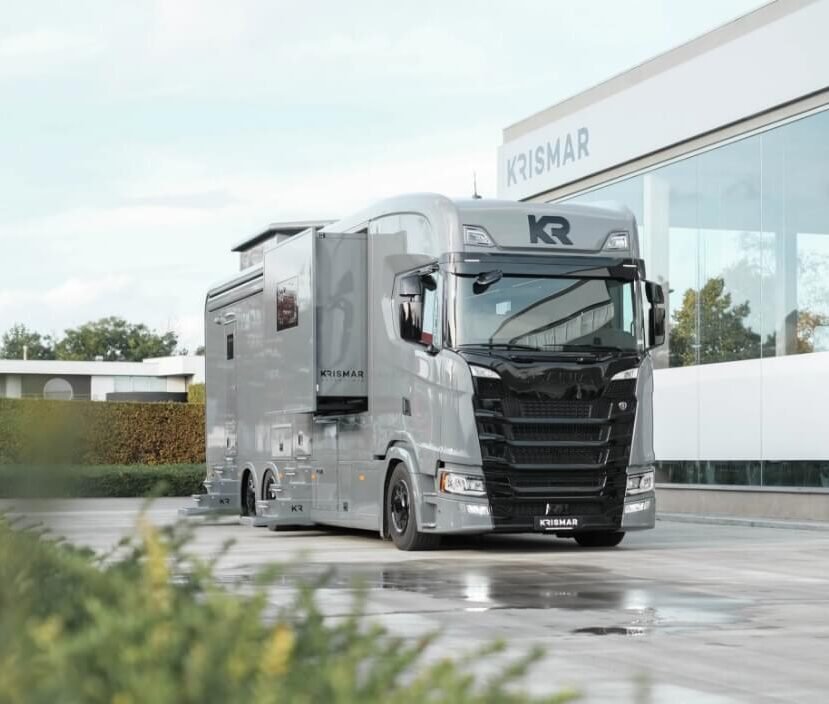

Krismar KR-ACTROS MOTORHOME
Built: 2023-2025 · Series: Other models
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Krismar – other models: the collective page of motorhomes on truck chassis, from Mercedes Actros and Antos bases to Scania Elite and Iveco Daily, 2,998 to 16,353 cm³
This page gathers Krismar vehicles the register could not assign to a named range: luxury motorhomes on heavy truck chassis, including bodies on the Mercedes-Benz Actros with Gigaspace cab and on the Antos, on a Scania chassis in Elite trim, and on the lighter Iveco Daily. The naming combines the chassis brand with the suffix Motorhome or Elite, as seen in model names such as KR-Actros Gigaspace Motorhome and KR-Elite-Scania. Gigaspace denotes Mercedes-Benz's tallest, flat-floor cab option on the Actros, whose standing height allows extra living space behind the cab.
Read on 3 more paragraphs
The register lists here 8 versions from four- to eight-cylinder engines of 2,998 to 16,353 cm³, unladen weights from 5,200 to 20,577 kg, gross weights from 7,200 to 28,000 kg, lengths from 8,420 to 11,990 mm and widths from 2,340 to 2,550 mm.
With chassis from Mercedes-Benz, Scania and Iveco and body lengths of over 11 metres, these motorhomes target a niche beyond the usual base or semi-integrated motorhomes, relying on truck engineering for long journeys and permanent living. Such conversions are typically built in small series or to individual order, offering features such as garages for a small car or motorcycle, large bathrooms and slide-out living sections not possible on series-built motorhomes based on cars or vans.
Buying used, these chassis need the same checks as heavy trucks – braking system, drivetrain, rust on the frame and axle mounts – plus, on the living bodies, damp in the roof and side-wall areas, the condition of the leisure battery and body systems, and leaks around roof penetrations.
Sources: SpecCodex register, model data: Krismar (weitere Modelle)
Technical data
Engine
| Power | 275 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 9,187.5 cm³correct |
Dimensions and weights
| Length | 11,350 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,450 mmcorrect |
| Unladen weight | 16,410 kgcorrect |
| Gross vehicle weight | 22,500 kgcorrect |
Drivetrain and chassis
| Gears | 8correct |
|---|---|
| Wheels | 8correct |
| Top speed | 100 km/hcorrect |
Where this model stands
Power-to-weight ratio: 16.8 kW/t (275 kW / 16.4 t)
Stronger than 47% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Krismar KR-ACTROS MOTORHOME have?
The Krismar KR-ACTROS MOTORHOME delivers 275 kW.
How much does the Krismar KR-ACTROS MOTORHOME weigh?
The unladen weight is 16,410 kg.
What is the gross vehicle weight of the Krismar KR-ACTROS MOTORHOME?
22,500 kg.
What engine does the Krismar KR-ACTROS MOTORHOME have?
6 cylinders, 9,188 cm³ displacement.
How fast does the Krismar KR-ACTROS MOTORHOME go?
Top speed is 100 km/h.
What are the dimensions of the Krismar KR-ACTROS MOTORHOME?
11,350 mm × 2,550 mm.
When was the Krismar KR-ACTROS MOTORHOME built?
Production years: 2023-2025.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
