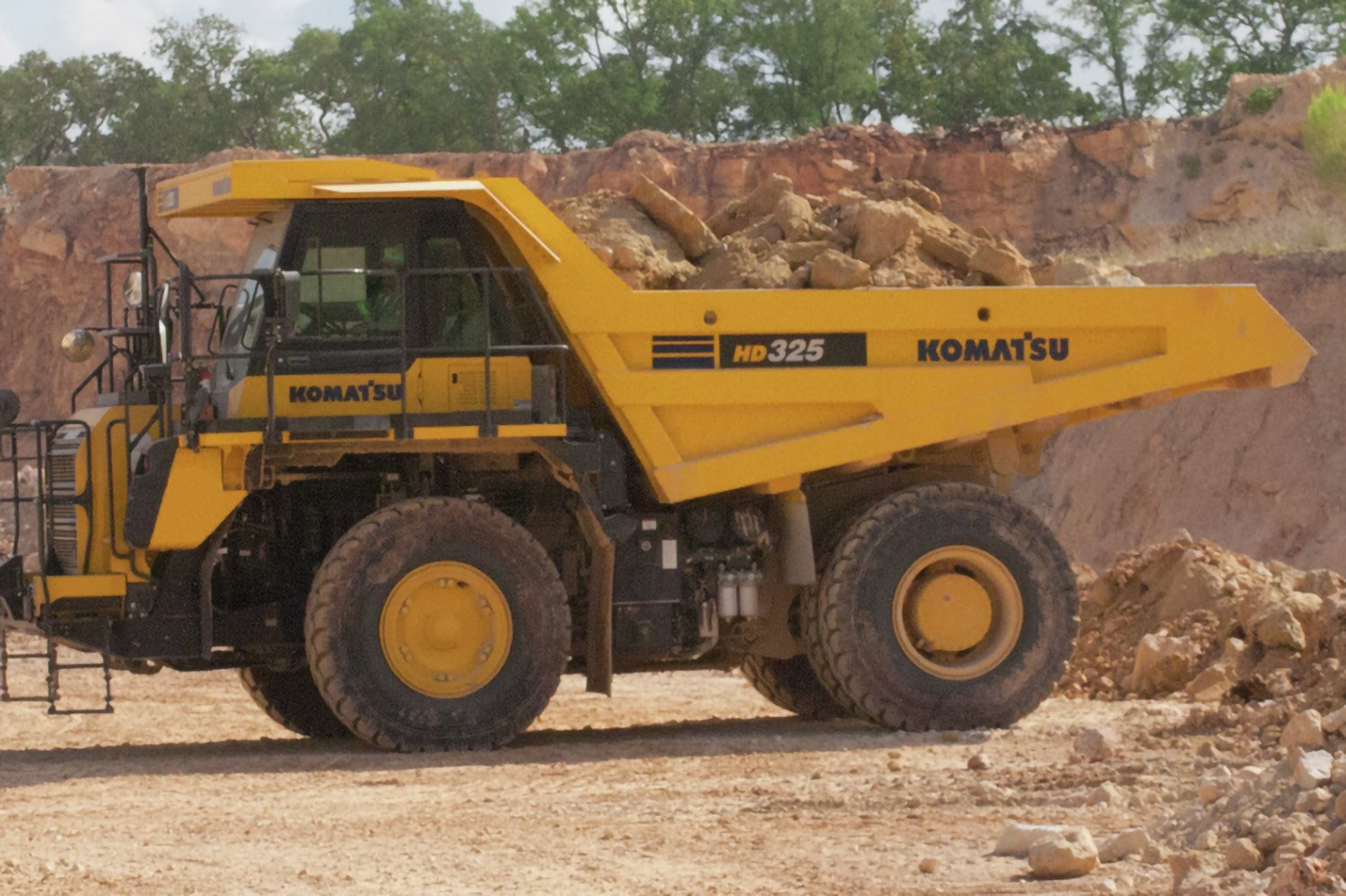

Komatsu HD325-3
Series: Komatsu Rock Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Komatsu Rock Truck HD785 to 960E: rigid haulers split between mechanical and electric drive, 171 to 2,495 kW, 6 to 18 cylinders
At Komatsu, "HD" marks the classic rigid-frame dump trucks with mechanical drivetrains, while the model number indicates payload class: the HD785 carries a manufacturer-rated payload of 92.2 tonnes. Models with the "E" suffix, such as the 830E, 930E and 960E, use diesel-electric drive instead – the diesel engine powers a generator that feeds two wheel motors on the rear axle through cabling, with no mechanical transmission.
Read on 4 more paragraphs
The number after the dash, as in 730E-7 versus 730E-8, marks the build generation. The "Komatsu Rock Truck" bucket here groups 35 live-listed models across both drive types, from smaller rigid HD haulers to the largest electric-drive trucks.
The technical spread is wide: among 33 models with recorded displacement, values run from 12,175 to 78,000 cm³, and cylinder count among 25 models spans 6 to 18 – figures consistent with the huge drive engines used in electric haulers. Among 19 models with recorded power, output ranges from 171 to 2,495 kW.
Buying used, operating hours and the engine's service history matter most; on diesel-electric models, also check the traction alternator and wheel motors. Models such as 830E, HD780, 730E-8 and 930E-4 appear across the listed inventory.
Generation (the dash number), drive type (the E suffix or its absence) and payload class (the model number) together make up the full code of a Komatsu haul truck.
Sources: SpecCodex register, model data: Komatsu Rock Truck, – Komatsu Muldenkipper HD785-8 (Nenn-Nutzlast 92,2 t), – Komatsu 830E (dieselelektrischer Antrieb) (Wikipedia)
Technical data
Engine
| Engine model | KT1150correct |
|---|---|
| Power | 444.1 hp (326.6 kW)correct |
| Displacement | 18,845.1 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 133.2 lcorrect |
| Engine oil capacity | 38.2 lcorrect |
Dimensions and weights
| Length | 7,650.5 mmcorrect |
|---|---|
| Width | 3,672.8 mmcorrect |
| Height | 3,950 mmcorrect |
| Wheelbase | 3,752.1 mmcorrect |
| Ground clearance | 530.4 mmcorrect |
Drivetrain and chassis
| Gearbox type | planetary gearcorrect |
|---|---|
| Tyre size | 18.00-33-28correct |
| Top speed | 62.1 km/hcorrect |
Working data
| Hydraulic oil capacity | 110.2 lcorrect |
|---|---|
| Fuel tank capacity | 500.1 lcorrect |
Frequently asked questions
How much power does the Komatsu HD325-3 have?
The Komatsu HD325-3 delivers 444 hp.
What engine does the Komatsu HD325-3 have?
18,845 cm³ displacement.
How fast does the Komatsu HD325-3 go?
Top speed is 62.1 km/h.
What are the dimensions of the Komatsu HD325-3?
7,650 mm × 3,673 mm × 3,950 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
