Komatsu 860E-1K
Series: Komatsu Rock Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

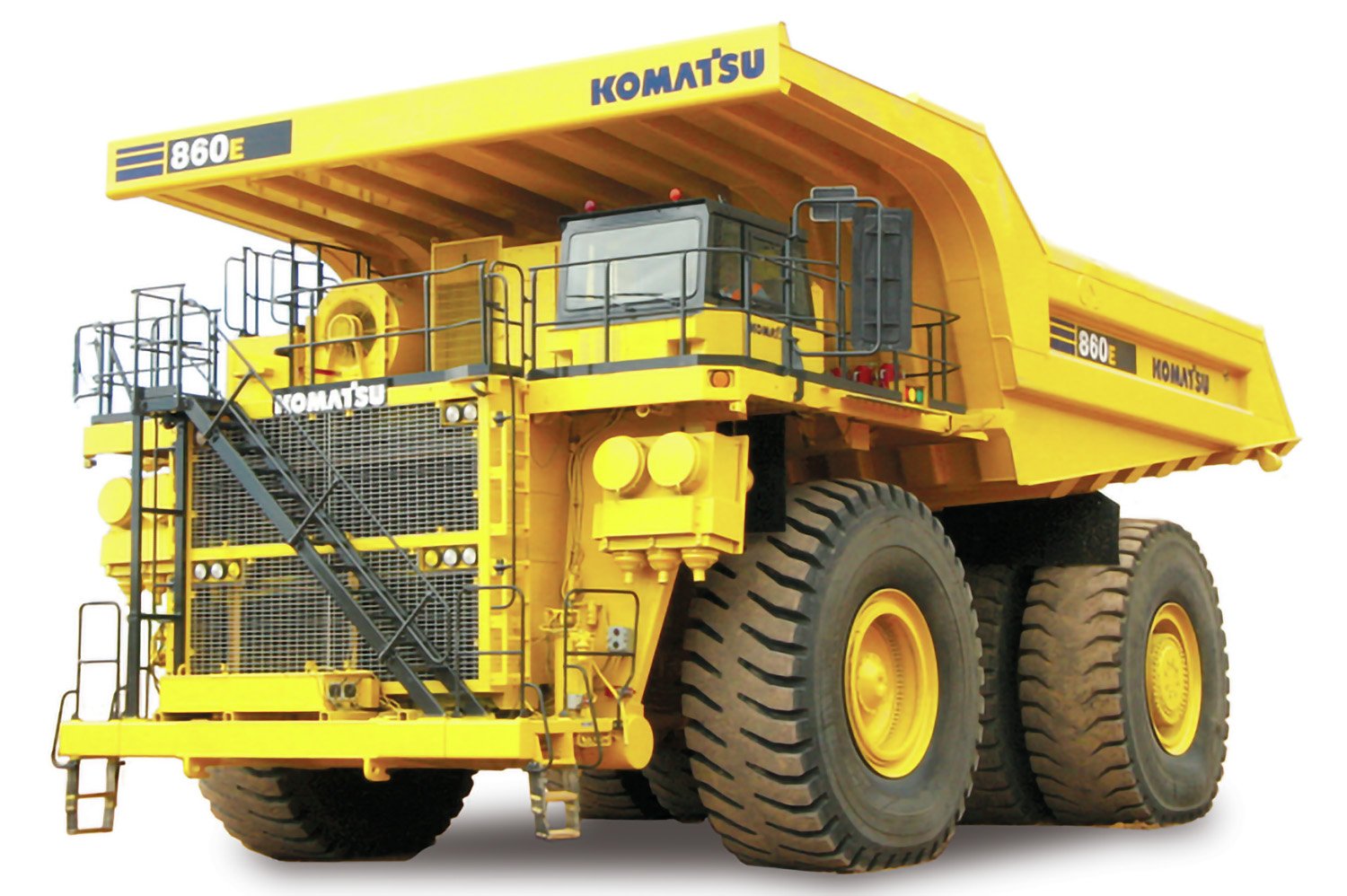

The Komatsu 860E-1K is an electrically driven haul truck from the Komatsu Rock Truck series, a family of mining vehicles built to move ore and overburden in open-pit mines. Electric drive in these trucks means that a diesel engine generates power and drives the wheel motors.
The diesel carries the designation SSDA16V160, has 16 cylinders and 60,001.2 cm³ displacement and runs at a rated speed of 1,900 rpm. Diesel is given as the fuel.
The dimensions: 14,932.2 mm long, 7,300 mm high, a wheelbase of 6,352 mm and a turning radius of 15,500 mm. The turning radius sets how tight the bends of the haul roads in the pit may be. Anyone planning a fleet therefore calculates with the turning radius as well as the length before ramps and turning areas are laid out in the pit.
Komatsu Rock Truck HD785 to 960E: rigid haulers split between mechanical and electric drive, 171 to 2,495 kW, 6 to 18 cylinders
At Komatsu, "HD" marks the classic rigid-frame dump trucks with mechanical drivetrains, while the model number indicates payload class: the HD785 carries a manufacturer-rated payload of 92.2 tonnes. Models with the "E" suffix, such as the 830E, 930E and 960E, use diesel-electric drive instead – the diesel engine powers a generator that feeds two wheel motors on the rear axle through cabling, with no mechanical transmission.
Read on 4 more paragraphs
The number after the dash, as in 730E-7 versus 730E-8, marks the build generation. The "Komatsu Rock Truck" bucket here groups 35 live-listed models across both drive types, from smaller rigid HD haulers to the largest electric-drive trucks.
The technical spread is wide: among 33 models with recorded displacement, values run from 12,175 to 78,000 cm³, and cylinder count among 25 models spans 6 to 18 – figures consistent with the huge drive engines used in electric haulers. Among 19 models with recorded power, output ranges from 171 to 2,495 kW.
Buying used, operating hours and the engine's service history matter most; on diesel-electric models, also check the traction alternator and wheel motors. Models such as 830E, HD780, 730E-8 and 930E-4 appear across the listed inventory.
Generation (the dash number), drive type (the E suffix or its absence) and payload class (the model number) together make up the full code of a Komatsu haul truck.
Sources: SpecCodex register, model data: Komatsu Rock Truck, – Komatsu Muldenkipper HD785-8 (Nenn-Nutzlast 92,2 t), – Komatsu 830E (dieselelektrischer Antrieb) (Wikipedia)
Technical data
Engine
| Engine model | SSDA16V160correct |
|---|---|
| Fuel | dieselcorrect |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 16correct |
| Displacement | 60,001.2 cm³correct |
Dimensions and weights
| Length | 14,932.2 mmcorrect |
|---|---|
| Height | 7,300 mmcorrect |
| Wheelbase | 6,352 mmcorrect |
Drivetrain and chassis
| Turning radius | 15,500 mmcorrect |
|---|
More machines with this engine (SSDA16V160, 2)
Frequently asked questions
What engine does the Komatsu 860E-1K have?
16 cylinders, 60,001 cm³ displacement, Diesel.
What are the dimensions of the Komatsu 860E-1K?
14,932 mm × 7,300 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
