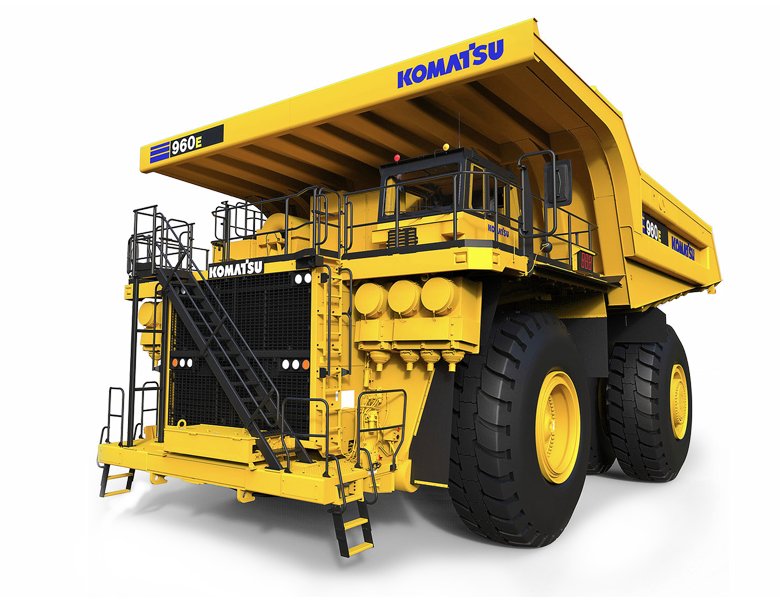

Komatsu 960E-1
Series: Komatsu Rock Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Komatsu Rock Truck HD785 to 960E: rigid haulers split between mechanical and electric drive, 171 to 2,495 kW, 6 to 18 cylinders
At Komatsu, "HD" marks the classic rigid-frame dump trucks with mechanical drivetrains, while the model number indicates payload class: the HD785 carries a manufacturer-rated payload of 92.2 tonnes. Models with the "E" suffix, such as the 830E, 930E and 960E, use diesel-electric drive instead – the diesel engine powers a generator that feeds two wheel motors on the rear axle through cabling, with no mechanical transmission.
Read on 4 more paragraphs
The number after the dash, as in 730E-7 versus 730E-8, marks the build generation. The "Komatsu Rock Truck" bucket here groups 35 live-listed models across both drive types, from smaller rigid HD haulers to the largest electric-drive trucks.
The technical spread is wide: among 33 models with recorded displacement, values run from 12,175 to 78,000 cm³, and cylinder count among 25 models spans 6 to 18 – figures consistent with the huge drive engines used in electric haulers. Among 19 models with recorded power, output ranges from 171 to 2,495 kW.
Buying used, operating hours and the engine's service history matter most; on diesel-electric models, also check the traction alternator and wheel motors. Models such as 830E, HD780, 730E-8 and 930E-4 appear across the listed inventory.
Generation (the dash number), drive type (the E suffix or its absence) and payload class (the model number) together make up the full code of a Komatsu haul truck.
Sources: Kennwerte der Modelle Komatsu Rock Truck, – Komatsu Muldenkipper HD785-8 (Nenn-Nutzlast 92,2 t), Komatsu 830E (dieselelektrischer Antrieb) (Wikipedia)
Technical data
Engine
| Engine model | SSDA18V170correct |
|---|---|
| Engine | Komatsu SSDA18V170Arrangement: V18Power: 3500 hp MWcorrect |
| Power | 3,548.6 hp (2,495 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 18correct |
| Displacement | 78,000.8 cm³correct |
| Engine oil capacity | 341.1 lcorrect |
Dimensions and weights
| Length | 15,602.7correct |
|---|---|
| Height | 7,370 mmcorrect |
| Wheelbase | 8,741.7correct |
| Ground clearance | 1,021.1correct |
Drivetrain and chassis
| Gearbox | GE GTA-39 alternator with (2) GE GDY108 induction traction motorscorrect |
|---|---|
| Gearbox type | Auto ECPCcorrect |
| Tyre size | 56/80 R63correct |
| Top speed | 64.5 km/hcorrect |
Working data
| Hydraulic oil capacity | 1,325.3 lcorrect |
|---|
Other data
| System voltage | 24 Vcorrect |
|---|
More machines with this engine (SSDA18V170, 4)
Frequently asked questions
How much power does the Komatsu 960E-1 have?
The Komatsu 960E-1 delivers 3,549 hp.
What engine does the Komatsu 960E-1 have?
18 cylinders, 78,001 cm³ displacement.
How fast does the Komatsu 960E-1 go?
Top speed is 64.5 km/h.
What are the dimensions of the Komatsu 960E-1?
15,603 mm × 7,370 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
