Kobelco SK35SR-5 – specifications
Series: Kobelco Hydraulic Excavator
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

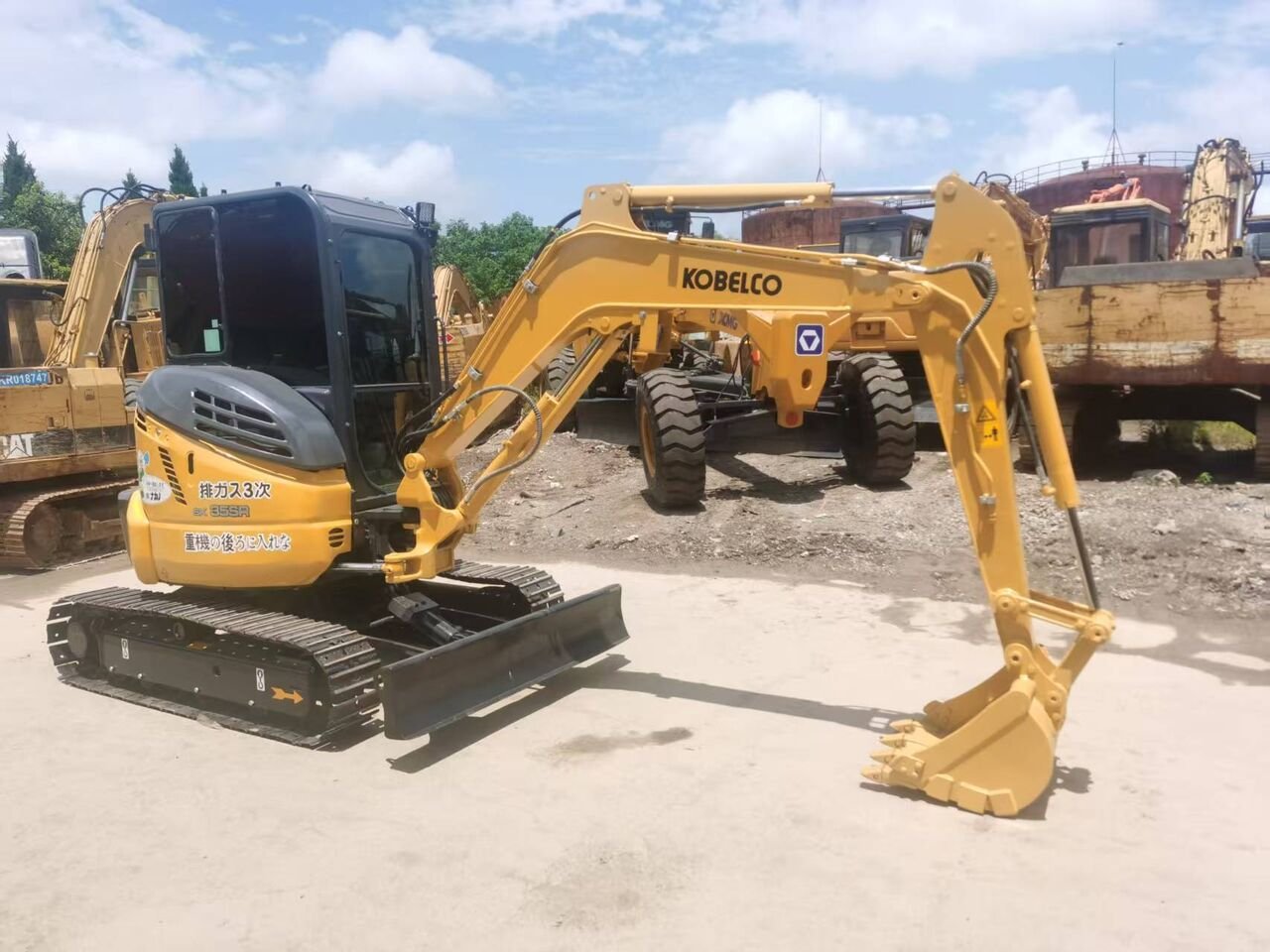

The Kobelco SK35SR-5 is a short-tail compact excavator of the Kobelco Hydraulic Excavator series: the tail swing is so short that the upper structure stays within the tracks when slewing. It is therefore meant for work against walls, in trenches beside carriageways and in gardens, where space is tight.
The drive is a Yanmar three-cylinder, type 3TNV88-BPYB, with 1,643.6 cm³ displacement and 98 Nm of torque. Compared with a smaller machine of the range the displacement is larger, and the pump delivers 12.9 l/min at 229.9 bar. The hydraulic tank holds 48.1 litres.
The wheelbase is 1,700.8 mm and the cab height 2,572.5 mm. The data show a machine that stays manageable in transport and use but provides more hydraulic output than the smaller models of the range.
Kobelco SK Excavators: What the Letters SR, LC and NLC Mean, the Generation Number, and Track Tension as a Used-Buy Check Point
Kobelco marks its crawler excavators with the SK prefix. The "Kobelco Hydraulic Excavator" bucket holds 52 models, from compact machines up to the 850 class (SK850LC), spanning 62 to 380 kW.
Read on 5 more paragraphs
LC denotes a wider, elongated undercarriage (more ground contact on soft terrain), while NLC ("Narrow Long Crawler") is the narrower counterpart for tight jobsites — both appear on models such as the SK350LC or SK480LC. SR ("Short Radius") is Kobelco's own design for minimal rear overhang: on SR models like the "115SR" or "135SR LC", the tail extends only about 185 mm past the tracks, which suits confined urban sites.
A separate ED line, such as the ED150 or ED190, combines an excavator with a 6-way dozer blade in one machine.
The digit after the hyphen (e.g. SK200-8) marks the generation — Kobelco has now reached generation 10 and 11, each bringing revised engine and emissions technology. When buying used, the generation number is worth checking: parts and control software aren't always compatible across generations.
On the track undercarriage itself, a used-buy check should also cover track tension: tracks that are too loose come off the rollers more easily on rough ground and speed up wear on the track links and rollers, while tracks pulled too tight increase load on the drive sprocket and idler wheel.
Cylinder count (3 to 6) and displacement (952 to 15,241 cm³) further indicate the size class.
Sources: SpecCodex register, model data: Kobelco Hydraulic Excavator
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● SK35SR-5 | — | — | — | Directory data |
| SK35SR-5 | — | 21,3 | — | Directory data |
Technical data
Engine
| Engine model | 3TNV88-BPYBcorrect |
|---|---|
| Torque | 98 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 1,643.6 cm³correct |
Dimensions and weights
| Wheelbase | 1,700.8 mmcorrect |
|---|
Working data
| Pump flow | 12.9 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 48.1 lcorrect |
| Hydraulic pressure | 229.9 barcorrect |
Other data
| Cab height | 2,572.5 mmcorrect |
|---|
More machines with this engine (3TNV88-BPYB, 3)
Frequently asked questions
What engine does the Kobelco SK35SR-5 have?
3 cylinders, 1,644 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
