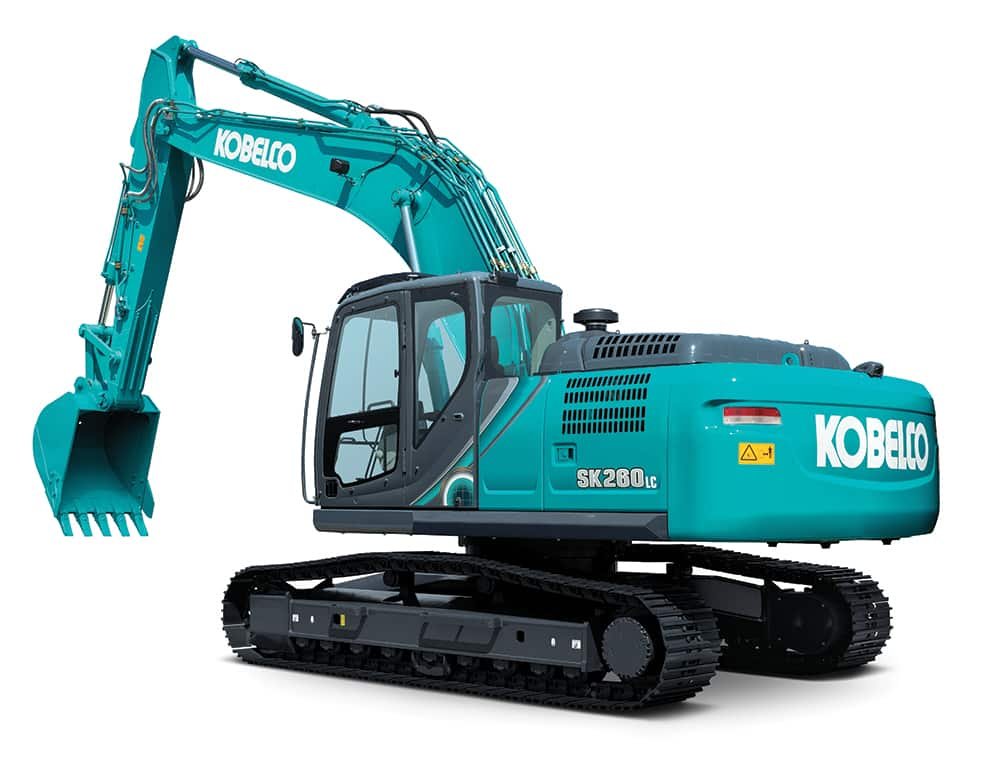

Kobelco SK260LC-9
Series: Kobelco Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kobelco SK Excavators: What the Letters SR, LC and NLC Mean, the Generation Number, and Track Tension as a Used-Buy Check Point
Kobelco marks its crawler excavators with the SK prefix. The "Kobelco Hydraulic Excavator" bucket holds 52 models, from compact machines up to the 850 class (SK850LC), spanning 62 to 380 kW.
Read on 5 more paragraphs
LC denotes a wider, elongated undercarriage (more ground contact on soft terrain), while NLC ("Narrow Long Crawler") is the narrower counterpart for tight jobsites — both appear on models such as the SK350LC or SK480LC. SR ("Short Radius") is Kobelco's own design for minimal rear overhang: on SR models like the "115SR" or "135SR LC", the tail extends only about 185 mm past the tracks, which suits confined urban sites.
A separate ED line, such as the ED150 or ED190, combines an excavator with a 6-way dozer blade in one machine.
The digit after the hyphen (e.g. SK200-8) marks the generation — Kobelco has now reached generation 10 and 11, each bringing revised engine and emissions technology. When buying used, the generation number is worth checking: parts and control software aren't always compatible across generations.
On the track undercarriage itself, a used-buy check should also cover track tension: tracks that are too loose come off the rollers more easily on rough ground and speed up wear on the track links and rollers, while tracks pulled too tight increase load on the drive sprocket and idler wheel.
Cylinder count (3 to 6) and displacement (952 to 15,241 cm³) further indicate the size class.
Sources: SpecCodex register, model data: Kobelco Hydraulic Excavator
Technical data
Engine
| Engine model | HINO J05E-TIcorrect |
|---|---|
| Power | 137.1 kWcorrect |
| Rated speed | 2,100 rpmcorrect |
| Torque | 654 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 5,124.2 cm³correct |
| Coolant capacity | 20.1 lcorrect |
| Engine oil capacity | 21.2 lcorrect |
Dimensions and weights
| Length | 10,302.2 mmcorrect |
|---|---|
| Width | 3,383.3 mmcorrect |
| Unladen weight | 56,230 kgcorrect |
Working data
| Hydraulic oil capacity | 280.1 lcorrect |
|---|---|
| Hydraulic pressure | 342.7 barcorrect |
| Fuel tank capacity | 460.3 lcorrect |
Other data
| Cab height | 3,109 mmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 2.4 kW/t (137 kW / 56.2 t)
Stronger than 68% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kobelco SK260LC-9 have?
The Kobelco SK260LC-9 delivers 137 kW.
How much does the Kobelco SK260LC-9 weigh?
The unladen weight is 56,230 kg.
What engine does the Kobelco SK260LC-9 have?
4 cylinders, 5,124 cm³ displacement.
What are the dimensions of the Kobelco SK260LC-9?
10,302 mm × 3,383 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
