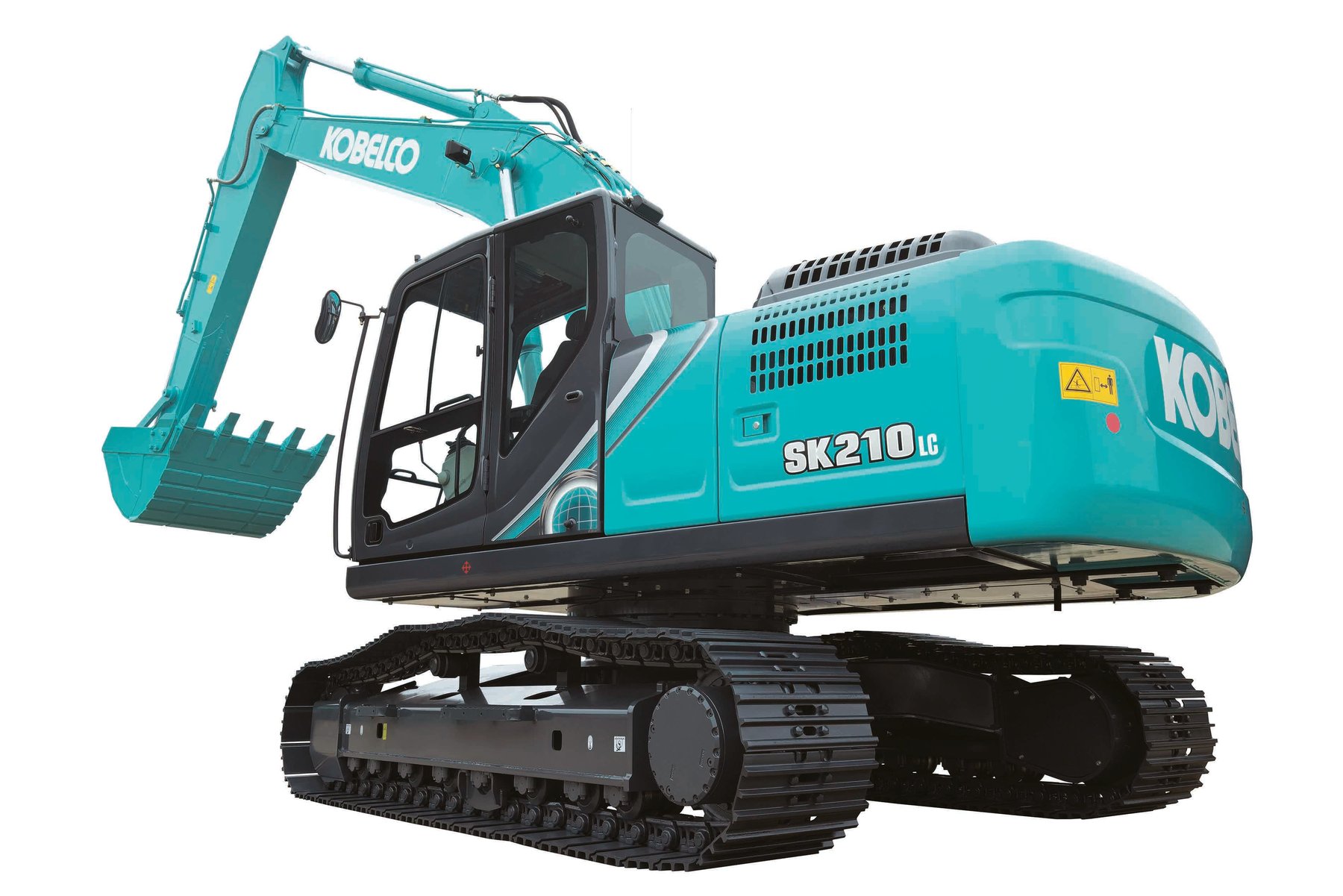

Kobelco SK210 LC

Series: Kobelco Hydraulic Excavator

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kobelco Hydraulic Excavator series from Kobelco includes the SK210 LC. The engine delivers 111.9 kW, with a displacement of 6,702.3 cm³. Rated speed is 2,000 rpm. The unladen weight is 21,681.7 kg. Ground clearance is 451.1 mm. The tank holds 370.2 litres. The pump delivers 440.2 l/min. The hydraulic tank holds 230.2 litres. Working pressure is 342.7 bar. The cooling system holds 26.1 litres. The oil fill is 20.1 litres. The engine fitted is the F4GE9684E-J6. The Kobelco Hydraulic Excavator series covers 52 models. Rated output within it ranges from 62.6 to 380.3 kW; the SK210 LC sits in the lower part of that range with 111.9 kW. Its immediate neighbours are the 235SR LC below it with 110.4 kW and the SK200-8 above it with 114 kW. Unladen weight within it ranges from 13,800 to 97,400 kg; here the SK210 LC sits at the bottom of that range with 21,681.7 kg. 100 Kobelco models across 7 series are on record.

Kobelco SK Excavators: What the Letters SR, LC and NLC Mean, the Generation Number, and Track Tension as a Used-Buy Check Point

Kobelco marks its crawler excavators with the SK prefix. The "Kobelco Hydraulic Excavator" bucket holds 52 models, from compact machines up to the 850 class (SK850LC), spanning 62 to 380 kW.

Read on 5 more paragraphs

LC denotes a wider, elongated undercarriage (more ground contact on soft terrain), while NLC ("Narrow Long Crawler") is the narrower counterpart for tight jobsites — both appear on models such as the SK350LC or SK480LC. SR ("Short Radius") is Kobelco's own design for minimal rear overhang: on SR models like the "115SR" or "135SR LC", the tail extends only about 185 mm past the tracks, which suits confined urban sites.

A separate ED line, such as the ED150 or ED190, combines an excavator with a 6-way dozer blade in one machine.

The digit after the hyphen (e.g. SK200-8) marks the generation — Kobelco has now reached generation 10 and 11, each bringing revised engine and emissions technology. When buying used, the generation number is worth checking: parts and control software aren't always compatible across generations.

On the track undercarriage itself, a used-buy check should also cover track tension: tracks that are too loose come off the rollers more easily on rough ground and speed up wear on the track links and rollers, while tracks pulled too tight increase load on the drive sprocket and idler wheel.

Cylinder count (3 to 6) and displacement (952 to 15,241 cm³) further indicate the size class.

Sources: SpecCodex register, model data: Kobelco Hydraulic Excavator

Technical data

Engine

Engine modelF4GE9684E-J6correct
Power111.9 kWcorrect
Rated speed2,000 rpmcorrect
Displacement6,702.3 cm³correct
Coolant capacity26.1 lcorrect
Engine oil capacity20.1 lcorrect

Dimensions and weights

Ground clearance451.1 mmcorrect
Unladen weight21,681.7 kgcorrect

Working data

Pump flow440.2 l/mincorrect
Hydraulic oil capacity230.2 lcorrect
Hydraulic pressure342.7 barcorrect
Fuel tank capacity370.2 lcorrect

Other data

Cab height2,932.2 mmcorrect

Where this model stands

Power-to-weight ratio: 5.2 kW/t (112 kW / 21.7 t)

Stronger than 50% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kobelco SK210 LC have?

The Kobelco SK210 LC delivers 112 kW.

How much does the Kobelco SK210 LC weigh?

The unladen weight is 21,682 kg.

What engine does the Kobelco SK210 LC have?

6,702 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
