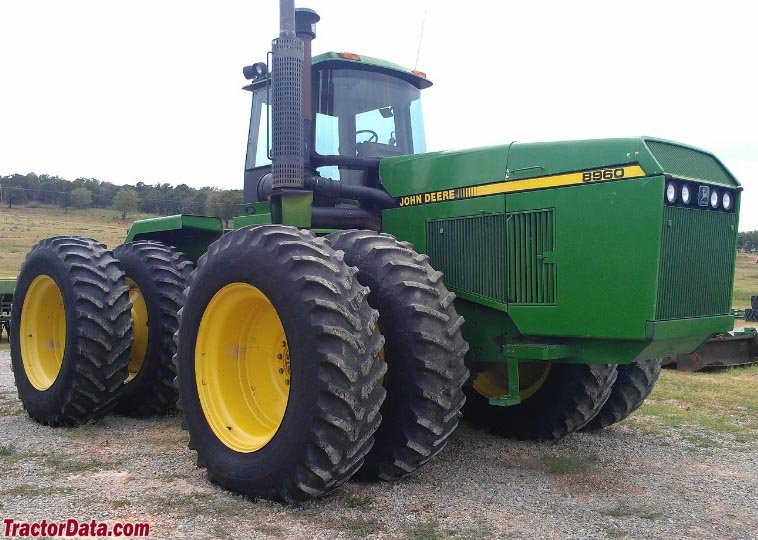

John Deere 8960
Built: 1989–1993 · Series: 60er-Baureihe
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 60 Series - large tractors 4560 to 8960: conventional six-cylinder engines up to 272 kW alongside the articulated 8560, 8760 and 8960, kerb weights up to 15.9 t
The 60 series brings together John Deere's large tractors of the late 1980s in two body styles: the conventional standard tractors 4560, 4760 and 4960 as successors to the 50 series, and the articulated four-wheel-drive tractors 8560, 8760 and 8960, built at the Waterloo, Iowa plant. The type logic orders the power class ascending in the hundreds digit; the A suffix on the smaller models denotes the version with a driven front axle.
Read on 3 more paragraphs
The register lists 6 versions with 125.1 to 272.3 kW from six-cylinder engines of 7,634 to 14,011 cm³, torque of 908 to 945 Nm at 2,100 to 2,200 rpm, kerb weights of 7,185 to 15,925 kg, lengths of 5,420 to 7,266 mm, widths of 2,997 to 3,870 mm and heights of 3,020 to 3,505 mm; every model runs on diesel.
With the 60 series, John Deere covered the entire upper power spectrum - from large standard tractors for North American arable farming to the articulated four-wheel-drive tractors that competed with Case IH's Steiger series and the Versatile models. The 8960, at around 370 horsepower, was for a time John Deere's most powerful production tractor.
On a used example of these large six-cylinder diesels, check the turbocharger and injection pump, the power-shift transmission, on the 8000-series models also the articulation joint with its steering cylinders and four-wheel steering, the hydraulic pump and cylinders, and the large-volume tyres; parts are available through John Deere and specialist used-parts dealers.
Sources: SpecCodex register, model data: John Deere 60er-Baureihe, John Deere (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 370 hp (272.3 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 14,011 cm³correct |
| Bore | 139.7 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 7,266 mmcorrect |
|---|---|
| Width | 3,870 mmcorrect |
| Height | 3,505 mmcorrect |
| Wheelbase | 3,400 mmcorrect |
| Ground clearance | 378 mmcorrect |
| Unladen weight | 15,925 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/6R or 12V/3R and 12V/2Rcorrect |
| Front tyres | 20.8 R 42correct |
| Rear tyres | 20.8 R 42correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 835 lcorrect |
|---|
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.1 kW/t (272 kW / 15.9 t)
Power class: Heavy (> 180 hp)
Stronger than 98% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 8960 have?
The John Deere 8960 delivers 370 hp.
How much does the John Deere 8960 weigh?
The unladen weight is 15,925 kg.
What engine does the John Deere 8960 have?
6 cylinders, 14,011 cm³ displacement, Diesel.
How fast does the John Deere 8960 go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 8960?
7,266 mm × 3,870 mm × 3,505 mm.
When was the John Deere 8960 built?
Production years: 1989–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
