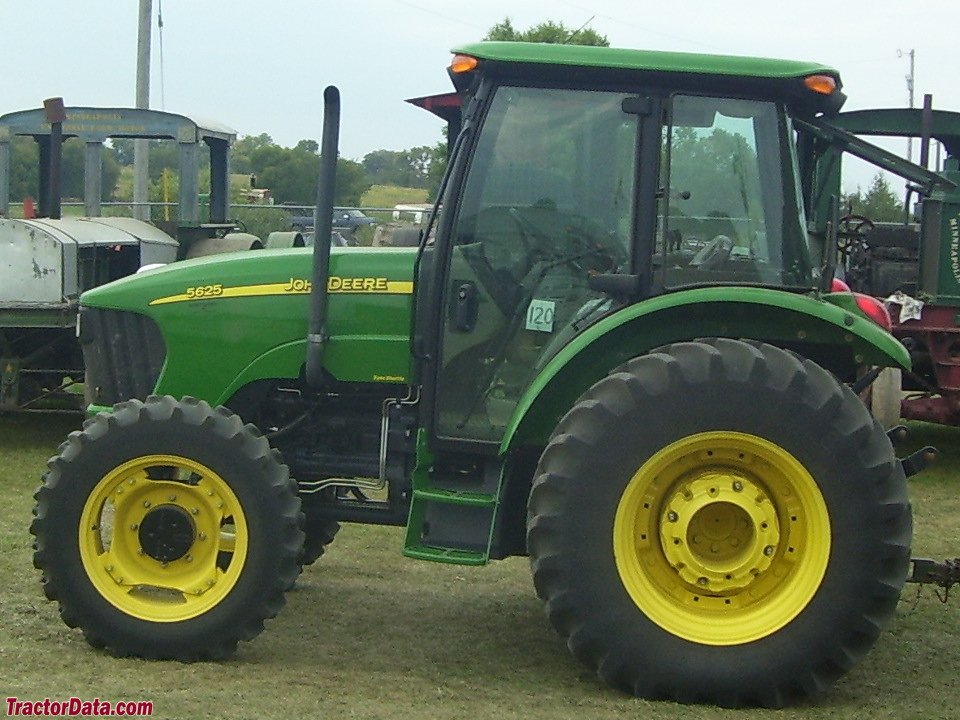

John Deere 5625

Built: 2007–2008 · Series: 5025er-Baureihe

More machines from model year 2007

Source: http://tractordata.com/farm-tractors/005/4/7/5473-john-deere

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere 5625 belongs to the 5025er series. Production: 2007–2008. The engine delivers 99 hp (72.9 kW), has 4 cylinders, with a displacement of 4,517 cm³. Torque is 339 Nm. Rated speed is 2,400 rpm. The machine is 3,848 mm long, 1,882 mm wide and 2,504 mm high. The unladen weight is 2,814 kg. The wheelbase measures 2,178 mm. Ground clearance is 400 mm. Top speed is 30 km/h. The tank holds 94.6 litres. Transmission: 9V/3R or 12V/12R and 24V/24R. The engine is water-cooled. Tyres: front 11.2-24 AS, rear 16.9-30 AS. The fuel is diesel. The bore measures 106.4 mm. The stroke is 127 mm. The compression ratio is 17:1. Maximum torque is reached at 1,602 rpm. Construction: frame construction. The linkage is category I/II. The 5025er-Baureihe series covers 5 models. Rated output within it ranges from 56 to 99 hp; the 5625 sits at the top of that range with 99 hp. Its immediate neighbours are the 5525 (A) below it with 91 hp. Unladen weight within it ranges from 2,719 to 3,084 kg; here the 5625 sits in the lower part of that range with 2,814 kg. 2622 John Deere models across 140 series are on record.

John Deere 5225 A to 5625 – the revised utility range after the 5003 series: a narrower power spread, A as the cab version, Deere four- and five-cylinders of 3.0 to 4.5 litres, 41 to 73 kW

The 5025 series follows the 5003 series in numbering and groups the power classes more tightly: where the 5003 models spread from 33 to 73 kW, the 5025 types from the 5225 to the 5625 sit within a narrower, higher-set band – also visible in operating weights that run consistently somewhat heavier than the 5003 series. The type logic stays the same: the last two digits order the power class in ascending order, and A marks the cab version. Unlike the 5003 series, conceived mainly for simple export markets, the 5025 series targets more established agricultural markets with higher demands on hydraulic output and PTO.

Read on 3 more paragraphs

The register lists 5 versions with engines of 3,050 to 4,517 cm³, 4 to 5 cylinders, outputs of 41.2 to 72.9 kW, torque of 214 to 339 Nm and operating weights of 2,719 to 3,084 kg at a constant 2,400 rpm.

The range's tight spread makes it an all-rounder for grassland, transport, front-loader and light field work on mid-sized farms, where a single tractor has to take on several different jobs across the year.

On used tractors, the condition of clutch and gearbox, leak-free hydraulics, lift and PTO, rust on wings, bonnet and platform, and on the A cab, door seals, glass and ventilation count; parts supply runs smoothly through Deere's dealer network.

Sources: SpecCodex register, model data: John Deere 5025er-Baureihe, John Deere (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	99 hp (72.9 kW)correct
Rated speed	2,400 rpmcorrect
Torque	339 Nmcorrect
Speed at max. torque	1,602 rpmcorrect
Cylinders	4correct
Displacement	4,517 cm³correct
Bore	106.4 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,848 mmcorrect
Width	1,882 mmcorrect
Height	2,504 mmcorrect
Wheelbase	2,178 mmcorrect
Ground clearance	400 mmcorrect
Unladen weight	2,814 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	9V/3R or 12V/12R and 24V/24Rcorrect
Front tyres	11.2-24 AScorrect
Rear tyres	16.9-30 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	94.6 lcorrect

Origin and approval

Construction	frame constructioncorrect

Other data

Linkage category	Cat I/IIcorrect

Where this model stands

Power-to-weight ratio: 25.9 kW/t (73 kW / 2.8 t)

Power class: Universal (40–100 hp)

Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 5625 have?

The John Deere 5625 delivers 99 hp.

How much does the John Deere 5625 weigh?

The unladen weight is 2,814 kg.

What engine does the John Deere 5625 have?

4 cylinders, 4,517 cm³ displacement, Diesel.

How fast does the John Deere 5625 go?

Top speed is 30 km/h.

What are the dimensions of the John Deere 5625?

3,848 mm × 1,882 mm × 2,504 mm.

When was the John Deere 5625 built?

Production years: 2007–2008.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
