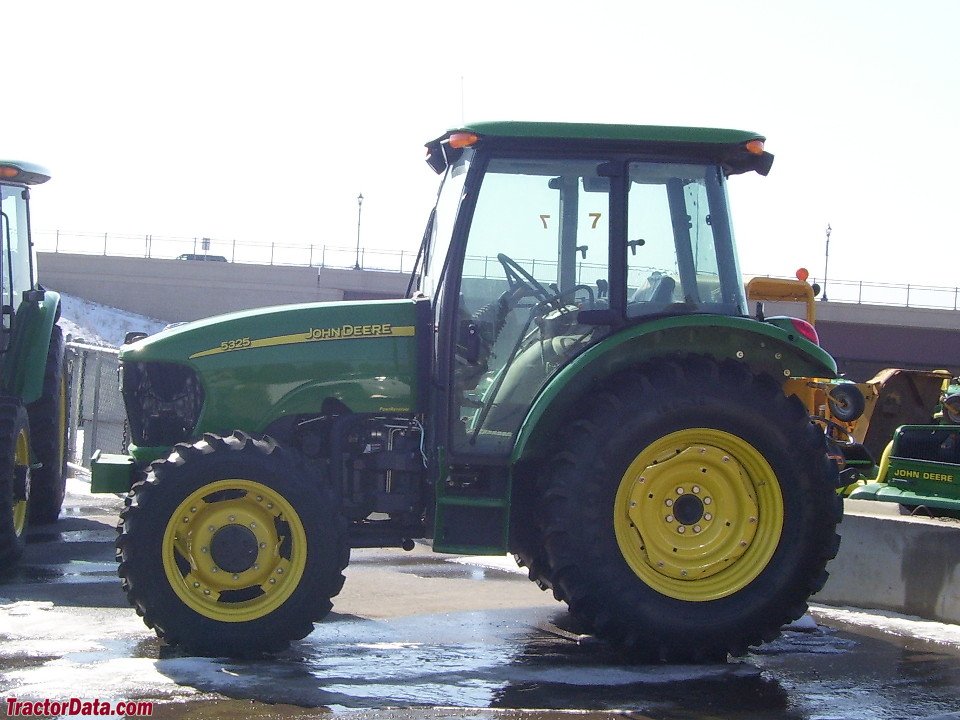

John Deere 5325 (A)
Built: 2005–2008 · Series: 5025er-Baureihe
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 5225 A to 5625 – the revised utility range after the 5003 series: a narrower power spread, A as the cab version, Deere four- and five-cylinders of 3.0 to 4.5 litres, 41 to 73 kW
The 5025 series follows the 5003 series in numbering and groups the power classes more tightly: where the 5003 models spread from 33 to 73 kW, the 5025 types from the 5225 to the 5625 sit within a narrower, higher-set band – also visible in operating weights that run consistently somewhat heavier than the 5003 series. The type logic stays the same: the last two digits order the power class in ascending order, and A marks the cab version. Unlike the 5003 series, conceived mainly for simple export markets, the 5025 series targets more established agricultural markets with higher demands on hydraulic output and PTO.
Read on 3 more paragraphs
The register lists 5 versions with engines of 3,050 to 4,517 cm³, 4 to 5 cylinders, outputs of 41.2 to 72.9 kW, torque of 214 to 339 Nm and operating weights of 2,719 to 3,084 kg at a constant 2,400 rpm.
The range's tight spread makes it an all-rounder for grassland, transport, front-loader and light field work on mid-sized farms, where a single tractor has to take on several different jobs across the year.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics, lift and PTO, rust on wings, bonnet and platform, and on the A cab, door seals, glass and ventilation count; parts supply runs smoothly through Deere's dealer network.
Sources: SpecCodex register, model data: John Deere 5025er-Baureihe, John Deere (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 67 hp (49.3 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 245 Nmcorrect |
| Speed at max. torque | 1,446 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 3,050 cm³correct |
| Bore | 86 mmcorrect |
| Stroke | 105 mmcorrect |
| Compression ratio | 20.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,500 mmcorrect |
|---|---|
| Width | 1,852 mmcorrect |
| Height | 2,454 mmcorrect |
| Wheelbase | 2,178 mmcorrect |
| Ground clearance | 490 mmcorrect |
| Unladen weight | 2,719 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 9V/3R or 12V/12R and 24V/24Rcorrect |
| Front tyres | 7.50-16 ASF (A: 9.5-24 AS)correct |
| Rear tyres | 14.9-28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.1 kW/t (49 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 5325 (A) have?
The John Deere 5325 (A) delivers 67 hp.
How much does the John Deere 5325 (A) weigh?
The unladen weight is 2,719 kg.
What engine does the John Deere 5325 (A) have?
5 cylinders, 3,050 cm³ displacement, Diesel.
How fast does the John Deere 5325 (A) go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 5325 (A)?
3,500 mm × 1,852 mm × 2,454 mm.
When was the John Deere 5325 (A) built?
Production years: 2005–2008.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
