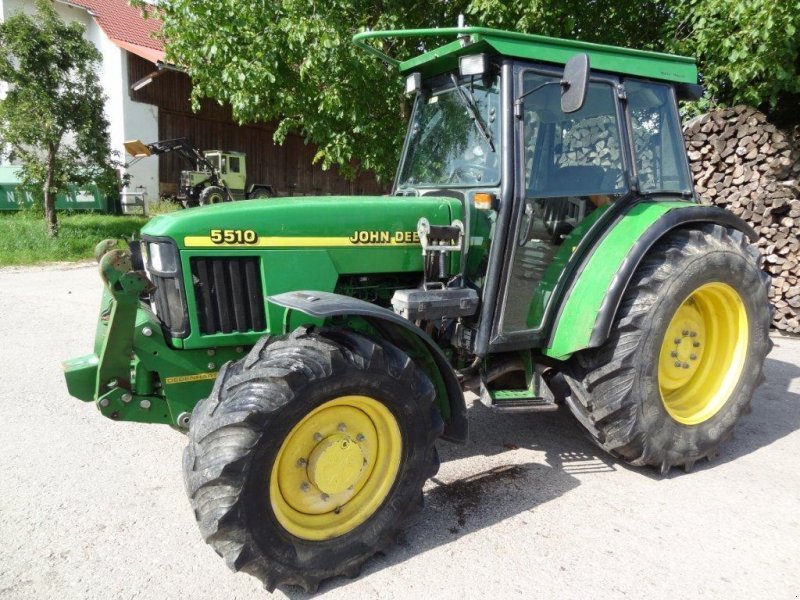

John Deere 5510 (A)

Built: 1997–2000 · Series: 5010er-Baureihe

More machines from model year 1997

Source: http://www.technikboerse.com/view/gebrauchtmaschine/hopfentr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 5510 (A), John Deere offers a model from the 5010er series. Production: 1997–2000. The engine delivers 89 hp (65.5 kW), has 4 cylinders, with a displacement of 4,517 cm³. Torque is 320 Nm. Rated speed is 2,400 rpm. The machine is 3,510 mm long, 1,745 mm wide and 2,540 mm high. The unladen weight is 3,048 kg. The wheelbase measures 2,177 mm. Ground clearance is 460 mm. Top speed is 30 km/h. Transmission: 9V/3R or 12V/12R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2-24 AS), rear 16.9-30 AS. The fuel is diesel. The bore measures 106.4 mm. The stroke is 127 mm. The compression ratio is 17:1. Maximum torque is reached at 1,289 rpm. Construction: frame construction. The 5010er-Baureihe series covers 4 models. Rated output within it ranges from 53 to 89 hp; the 5510 (A) sits at the top of that range with 89 hp. Its immediate neighbours are the 5410 (A) below it with 81 hp. Unladen weight within it ranges from 2,110 to 3,048 kg; here the 5510 (A) sits at the top of that range with 3,048 kg. 2622 John Deere models across 140 series are on record.

John Deere 5010er-Baureihe – the next generation of Augusta-built utility tractors: types 5210 to 5510, three- and four-cylinder diesels of 2,934 to 4,517 cm³, 39 to 65.5 kW

With the 5010 series, John Deere introduced the successor generation to the 5000-series utility tractors at its Augusta plant in Georgia; the types 5210, 5310, 5410 and 5510 recorded in the register carry, like their predecessors, the A suffix denoting the Augusta production site. Compared with the previous series, engine power, displacement and weight of the 5010-series types increased noticeably.

Read on 3 more paragraphs

The register lists 4 versions with 39 to 65.5 kW from three- and four-cylinder diesel engines of 2,934 to 4,517 cm³ displacement, torque from 177 to 320 Nm and a rated speed of 2,400 rpm throughout; unladen weight ranges from 2,110 to 3,048 kg, lengths from 3,198 to 3,540 mm, widths from 1,745 to 1,850 mm, heights from 2,464 to 2,540 mm.

The 5010 series covers the upper end of the utility-tractor segment relative to the 5000 series, and is aimed at operations with more demanding field, feeding and transport tasks that need more power and pulling force than the smaller utility types offer, competing with comparable ranges from Case IH, New Holland and Massey Ferguson.

On a used 5010-series tractor, the condition of the hydraulics and lift linkage, the tightness of the gearbox and axles, the diesel engine's mileage, and rust on the mudguards and bonnet all count; parts are well available through John Deere's dense dealer network.

Sources: SpecCodex register, model data: John Deere 5010er-Baureihe, John Deere (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	89 hp (65.5 kW)correct
Rated speed	2,400 rpmcorrect
Torque	320 Nmcorrect
Speed at max. torque	1,289 rpmcorrect
Cylinders	4correct
Displacement	4,517 cm³correct
Bore	106.4 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,510 mmcorrect
Width	1,745 mmcorrect
Height	2,540 mmcorrect
Wheelbase	2,177 mmcorrect
Ground clearance	460 mmcorrect
Unladen weight	3,048 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	9V/3R or 12V/12Rcorrect
Front tyres	7.50-16 ASF (A: 11.2-24 AS)correct
Rear tyres	16.9-30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	frame constructioncorrect

Where this model stands

Power-to-weight ratio: 21.5 kW/t (66 kW / 3 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 5510 (A) have?

The John Deere 5510 (A) delivers 89 hp.

How much does the John Deere 5510 (A) weigh?

The unladen weight is 3,048 kg.

What engine does the John Deere 5510 (A) have?

4 cylinders, 4,517 cm³ displacement, Diesel.

How fast does the John Deere 5510 (A) go?

Top speed is 30 km/h.

What are the dimensions of the John Deere 5510 (A)?

3,510 mm × 1,745 mm × 2,540 mm.

When was the John Deere 5510 (A) built?

Production years: 1997–2000.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
