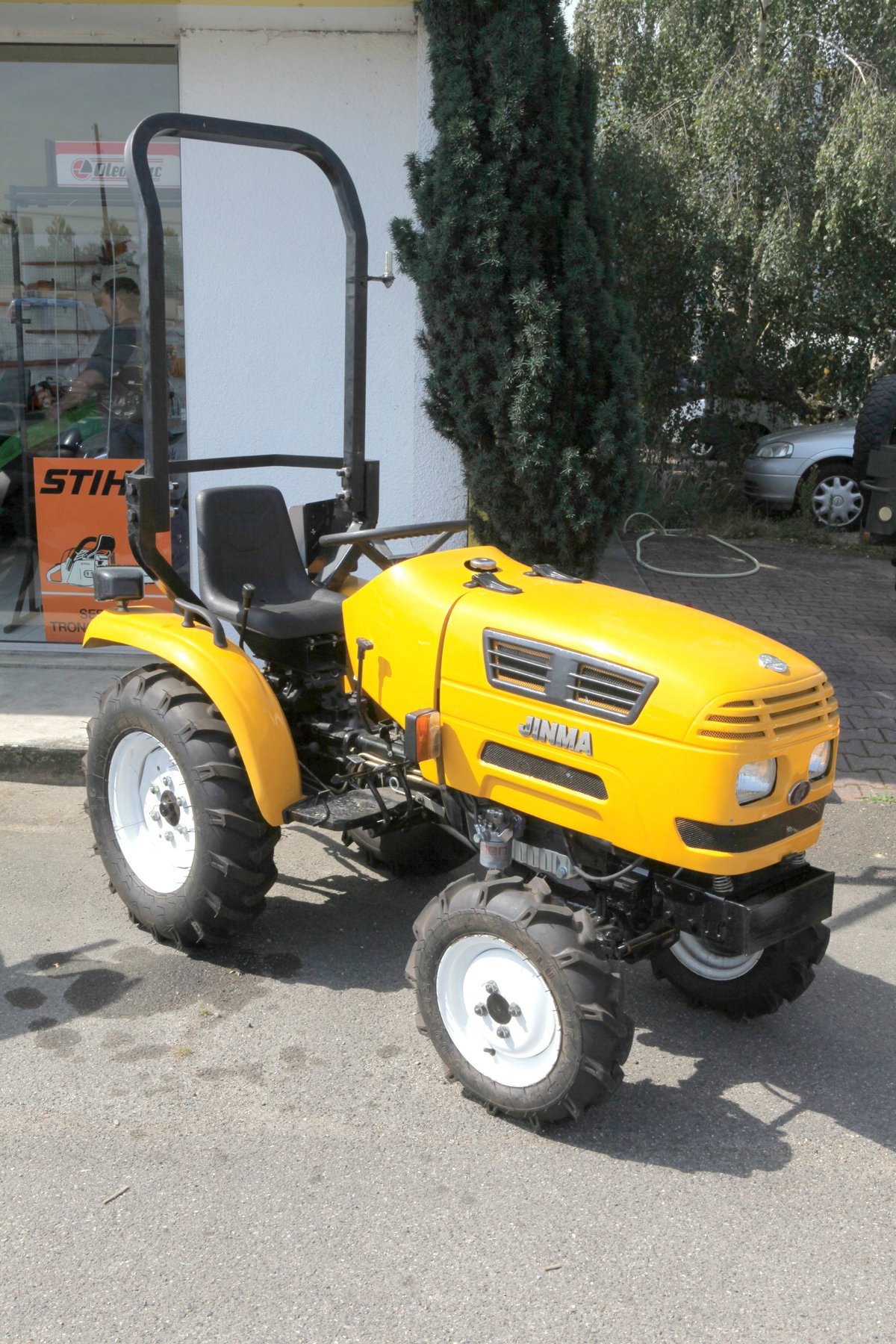

Jinma 350 A
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Jinma – other models: the collective page of tractors outside the named ranges, from the two- to six-cylinder 164 to 954 types to the Orchard version, 12 to 92 kW, Chinese TY and KM diesel engine families
This page gathers the Jinma tractors the register could not assign to a named range. Jinma Industrial Group, based in Luoyang in China's Henan province, is one of the older Chinese tractor makers and exports its models mainly to Africa, South and Central America and Eastern Europe. The type designations mostly track the power class in hp: the 254 denotes about 25 hp, the 354 about 35 hp, the 454 about 45 hp, up to the 954 with about 95 hp; the suffixes A, B and E denote equipment variants, LE the reduced-emission version and Orchard the narrow build for fruit and wine growing. The engines come from several Chinese makers, recognisable by the TY and KM type families.
Read on 3 more paragraphs
The register lists here 71 versions with 11.8 to 92 kW (16 to 125 hp) from two- to six-cylinders of 1,532 to 3,456 cm³, lengths from 3,185 to 4,054 mm and widths from 1,400 to 1,785 mm.
Jinma serves mainly the lower and mid power segment and, in its export markets, is a low-cost alternative to the established Western and Japanese brands.
On used tractors, engine condition and fuel quality count, along with clutch and transmission, hydraulics and PTO, and on the Orchard version the condition of the cab and mudguard panelling; spare parts are usually only available through specialist importers rather than a nationwide factory network.
Sources: SpecCodex register, model data: Jinma (weitere Modelle)
Technical data
Engine
| Engine model | TY3100/4L22Tcorrect |
|---|---|
| Power | 35 hp (25.7 kW)correct |
| Rated speed | 2300/2350 rpmcorrect |
| Cylinders | 3/4correct |
| Displacement | 2.47/2.156correct |
| Bore | 100mm/85mmcorrect |
| Stroke | 105mm/95mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 1,776.5 mmcorrect |
|---|
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 2correct |
Working data
| Lifting capacity | 5,800correct |
|---|
Origin and approval
| Plant | Chinacorrect |
|---|
Other data
| Linkage category | Cat Icorrect |
|---|---|
| PTO speed | 540/720 or 540/1000correct |
Frequently asked questions
How much power does the Jinma 350 A have?
The Jinma 350 A delivers 35 hp.
What engine does the Jinma 350 A have?
3/4 cylinders.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
