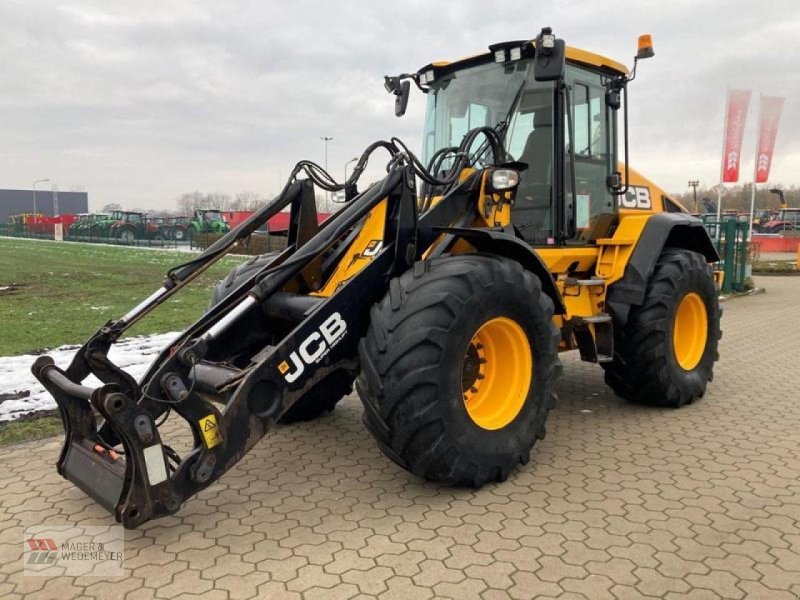

JCB 419S HT

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/jcb-590

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 419S HT, JCB offers a model from the JCB Wheel Loader series. The engine delivers 175.4 hp (136.5 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. Rated speed is 2,100 rpm. The unladen weight is 10,613 kg. The wheelbase measures 2,852.9 mm. Ground clearance is 502.9 mm. The tank holds 250.2 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 180.2 l/min. The hydraulic tank holds 155.2 litres. The electrical system runs on 24 V. The engine fitted is the QSB. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 419S HT sits in the upper part of that range with 175.4 hp. Its immediate neighbours are the 412S below it with 164.6 hp and the 436 Wastemaster above it with 179.5 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSBcorrect
Power175.4 hp (136.5 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationTurbo Chargedcorrect

Dimensions and weights

Wheelbase2,852.9correct
Ground clearance502.9correct
Unladen weight10,613 kgcorrect

Drivetrain and chassis

Gearbox type6 speed non-lock up converter ZFcorrect
Forward gears6correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow180.2 l/mincorrect
Hydraulic oil capacity155.2 lcorrect
Fuel tank capacity250.2 lcorrect

Other data

Height3,191.3correct

Where this model stands

Power-to-weight ratio: 12.9 kW/t (136 kW / 10.6 t)

Stronger than 69% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 419S HT have?

The JCB 419S HT delivers 175 hp.

How much does the JCB 419S HT weigh?

The unladen weight is 10,613 kg.

What engine does the JCB 419S HT have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
