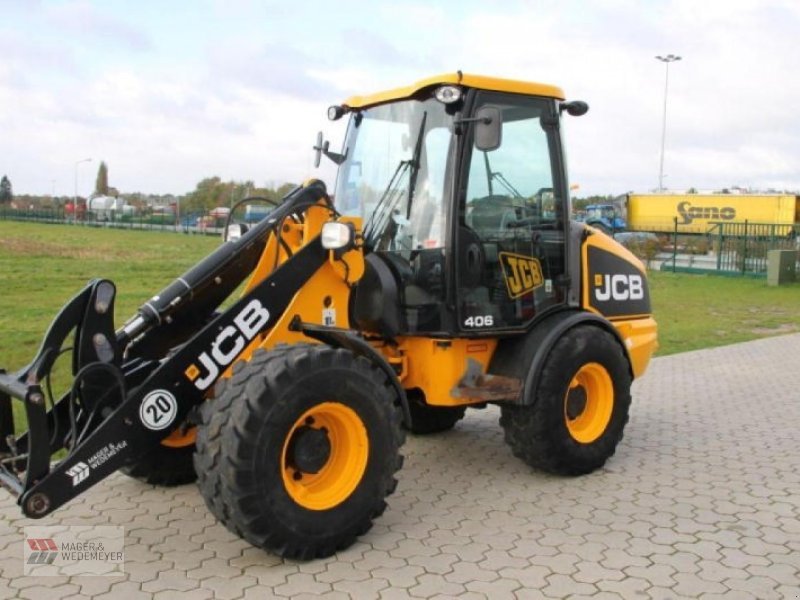

JCB 406

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/view/gebrauchtmaschine/radlade
The 406 from JCB is part of the JCB Wheel Loader series. The engine delivers 49.7 hp (36.5 kW), has 4 cylinders, with a displacement of 2,482.6 cm³. Rated speed is 2,600 rpm. The unladen weight is 4,873 kg. The wheelbase measures 2,100.1 mm. Ground clearance is 313.9 mm. The tank holds 80.3 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 64.4 l/min. The hydraulic tank holds 70 litres. The engine fitted is the JCB Diesel by Kohler - KDI 2504 M. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 406 sits at the bottom of that range with 49.7 hp. Its immediate neighbours are the 403 below it with 36.5 hp and the 407 above it with 64.9 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelJCB Diesel by Kohler - KDI 2504 Mcorrect
Power49.7 hp (36.5 kW)correct
Rated speed2,600 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement2,482.6 cm³correct
Aspirationnaturally aspiratedcorrect

Dimensions and weights

Wheelbase2,100.1correct
Ground clearance313.9correct
Unladen weight4,873 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect

Working data

Pump flow64.4 l/mincorrect
Hydraulic oil capacity70 lcorrect
Fuel tank capacity80.3 lcorrect

Other data

Height2,502.4correct

Where this model stands

Power-to-weight ratio: 7.5 kW/t (36 kW / 4.9 t)

Stronger than 6% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 406 have?

The JCB 406 delivers 49.7 hp.

How much does the JCB 406 weigh?

The unladen weight is 4,873 kg.

What engine does the JCB 406 have?

4 cylinders, 2,483 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
