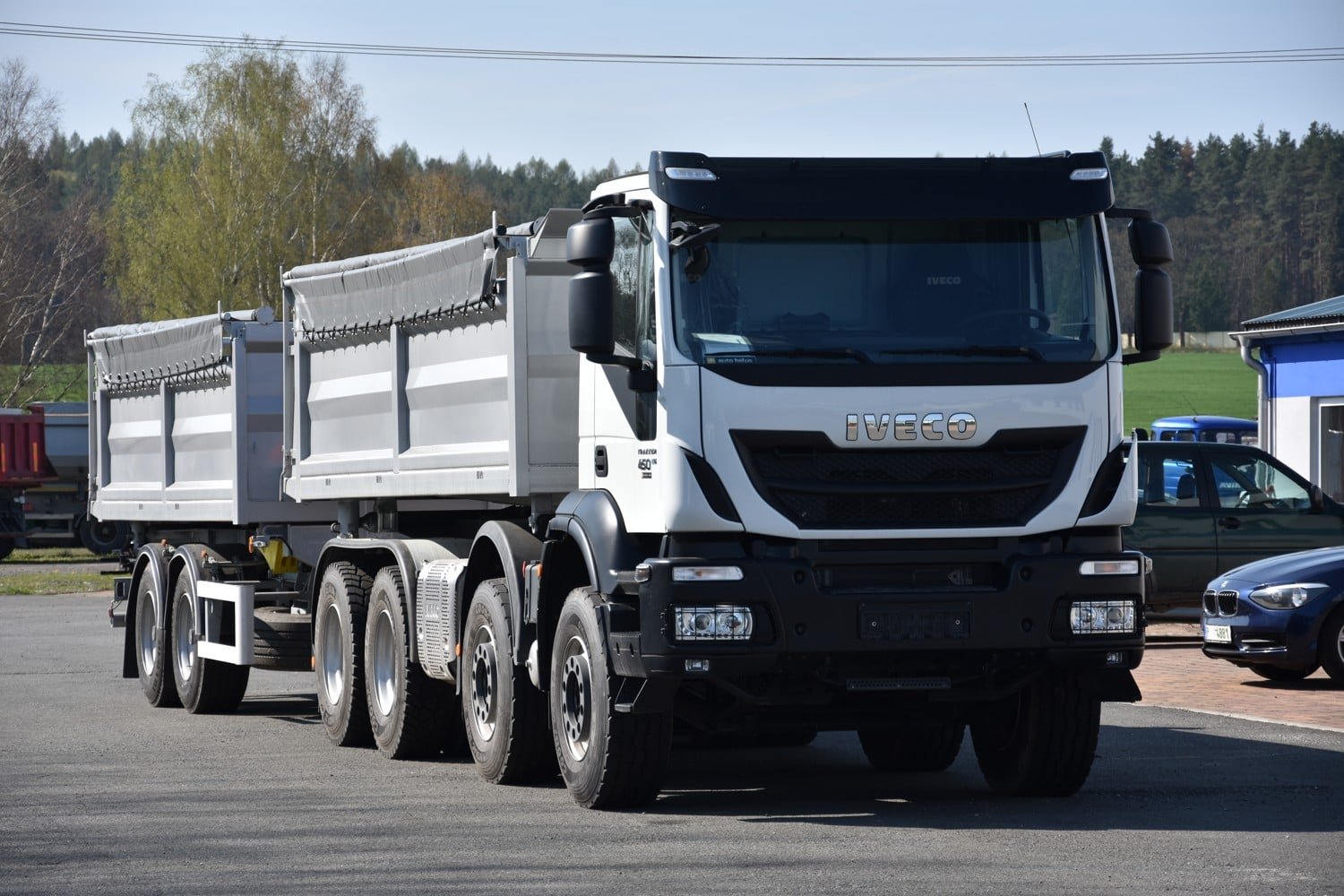

Iveco TRAKKER 340 M/U P
Built: 2018 · Series: Trakker
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Iveco Trakker – the construction and off-road truck: AD and AT cabs from AD260T33 to AT440T45, Cursor six-cylinder engines from 302 to 368 kW, 19.5 to 51.5 tonnes gross vehicle weight
The Trakker is Iveco's heavy construction and off-road range, replacing the EuroTrakker predecessor since 2004 and built in various axle configurations, up to multi-axle special versions such as 8x4 or 10x8. The trucks are powered by Iveco's Cursor six-cylinder engines. In the type designation, the AD or AT cab code is followed by a number for engine power in PS and, after the "T", a number for the maximum permissible combination or gross weight in tonnes – an AT440T45, for instance, is rated for 45 tonnes.
Read on 3 more paragraphs
The register lists 13 versions here with 302 to 368 kW from six-cylinder engines of 7,790 to 12,882 cm³, unladen weights from 10,676 to 24,910 kg, gross vehicle weights from 19,500 to 51,500 kg, lengths from 7,450 to 13,000 mm and widths from 2,500 to 2,800 mm.
As a rugged representative of the construction sector, the Trakker competes with the Mercedes-Benz Arocs, MAN TGS and Volvo FMX; it is used as a tipper, concrete-mixer chassis, crane carrier and heavy tractor unit in mining and construction work, where off-road capability and payload matter more than road comfort.
When buying used, check the operating hours of the engine and power take-off, the condition of the transfer cases and differential locks on multi-axle versions, corrosion on the frame and body mounts, and wear on brakes and suspension from construction-site duty; spare parts run through the Iveco service network.
Sources: SpecCodex register, model data: Iveco Trakker, Iveco (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,882 cm³correct |
Dimensions and weights
| Length | 8,900 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,150 mmcorrect |
| Unladen weight | 13,950 kgcorrect |
| Gross vehicle weight | 32,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Iveco TRAKKER 340 M/U P weigh?
The unladen weight is 13,950 kg.
What is the gross vehicle weight of the Iveco TRAKKER 340 M/U P?
32,000 kg.
What engine does the Iveco TRAKKER 340 M/U P have?
6 cylinders, 12,882 cm³ displacement.
How fast does the Iveco TRAKKER 340 M/U P go?
Top speed is 90 km/h.
What are the dimensions of the Iveco TRAKKER 340 M/U P?
8,900 mm × 2,550 mm.
When was the Iveco TRAKKER 340 M/U P built?
Production years: 2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
