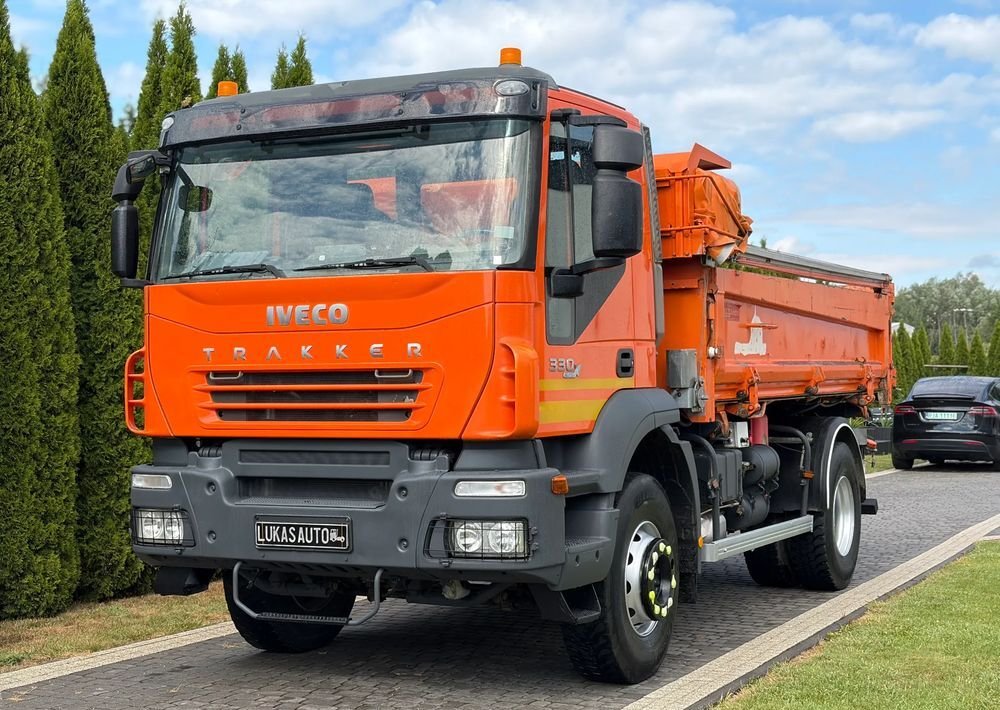

Iveco TRAKKER 330
Built: 2009-2009 · Series: Trakker
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Iveco Trakker – the construction and off-road truck: AD and AT cabs from AD260T33 to AT440T45, Cursor six-cylinder engines from 302 to 368 kW, 19.5 to 51.5 tonnes gross vehicle weight
The Trakker is Iveco's heavy construction and off-road range, replacing the EuroTrakker predecessor since 2004 and built in various axle configurations, up to multi-axle special versions such as 8x4 or 10x8. The trucks are powered by Iveco's Cursor six-cylinder engines. In the type designation, the AD or AT cab code is followed by a number for engine power in PS and, after the "T", a number for the maximum permissible combination or gross weight in tonnes – an AT440T45, for instance, is rated for 45 tonnes.
Read on 3 more paragraphs
The register lists 13 versions here with 302 to 368 kW from six-cylinder engines of 7,790 to 12,882 cm³, unladen weights from 10,676 to 24,910 kg, gross vehicle weights from 19,500 to 51,500 kg, lengths from 7,450 to 13,000 mm and widths from 2,500 to 2,800 mm.
As a rugged representative of the construction sector, the Trakker competes with the Mercedes-Benz Arocs, MAN TGS and Volvo FMX; it is used as a tipper, concrete-mixer chassis, crane carrier and heavy tractor unit in mining and construction work, where off-road capability and payload matter more than road comfort.
When buying used, check the operating hours of the engine and power take-off, the condition of the transfer cases and differential locks on multi-axle versions, corrosion on the frame and body mounts, and wear on brakes and suspension from construction-site duty; spare parts run through the Iveco service network.
Sources: Kennwerte der Modelle Iveco Trakker, Iveco (Hersteller)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 7,790 cm³correct |
Dimensions and weights
| Length | 7,450 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 3,800 mmcorrect |
| Unladen weight | 10,676 kgcorrect |
| Gross vehicle weight | 19,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the Iveco TRAKKER 330 weigh?
The unladen weight is 10,676 kg.
What is the gross vehicle weight of the Iveco TRAKKER 330?
19,500 kg.
What engine does the Iveco TRAKKER 330 have?
6 cylinders, 7,790 cm³ displacement.
What are the dimensions of the Iveco TRAKKER 330?
7,450 mm × 2,550 mm.
When was the Iveco TRAKKER 330 built?
Production years: 2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
