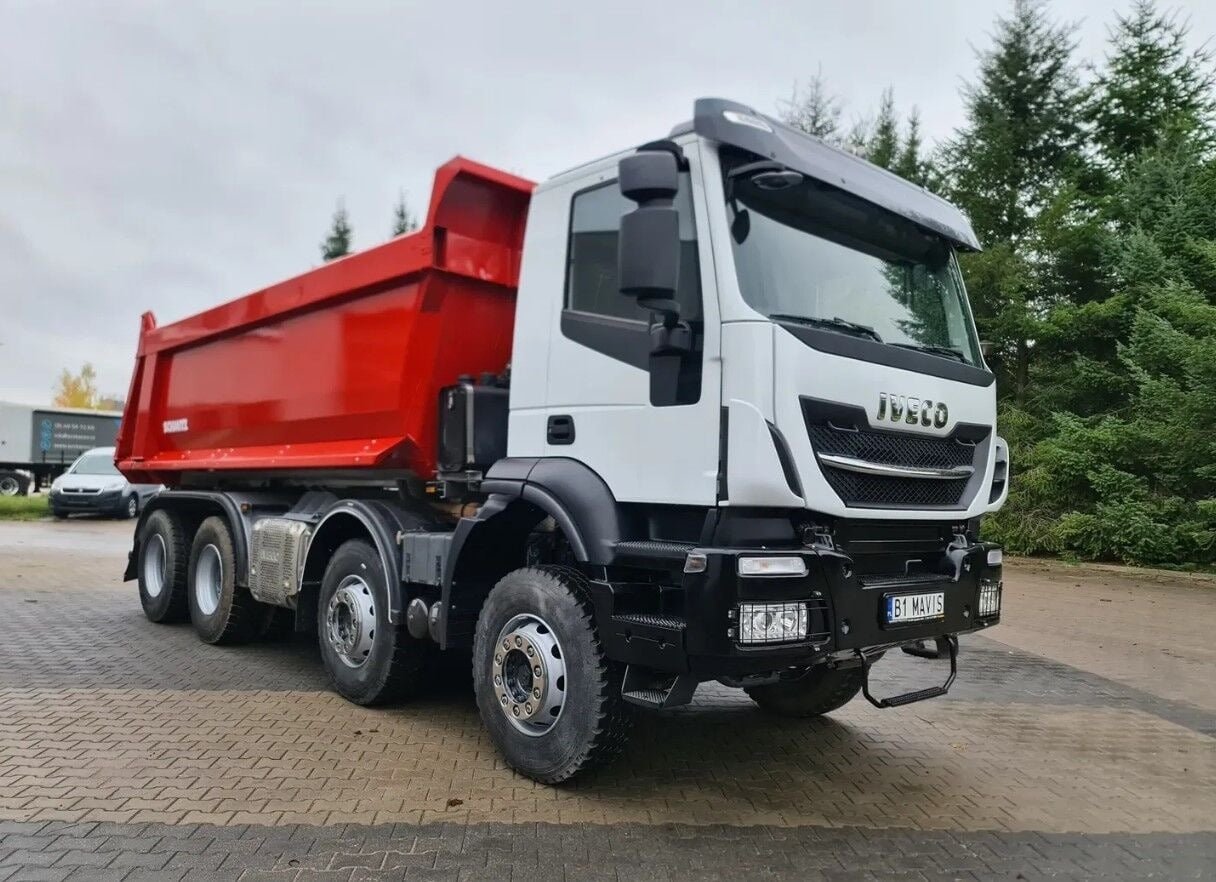

Iveco AD 410T/F
Built: 2016 · Series: AD
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Iveco AD – heavy tipper and construction-site chassis with 6x6 and 8x8 drive, a uniform 12.9-litre six-cylinder engine at 302 to 368 kW, up to 50 tonnes gross vehicle weight
The AD range denotes Iveco's heavy multi-axle truck chassis for construction, mining and quarry work, appearing in the register under designations from AD 340T to AD 410TW; suffixes such as WSG and Midlift refer to drive and axle variants. These vehicles are powered throughout by a six-cylinder diesel engine of 12,882 cm³, also used in other heavy Iveco ranges of this power class, and are built for four-wheel drive up to 8x8 and high payloads.
Read on 3 more paragraphs
The register lists 19 versions with the uniform six-cylinder engine of 12,882 cm³ and 302 to 368 kW, kerb weights from 11,000 to 31,700 kg, gross vehicle weights from 28,000 to 50,000 kg, lengths from 6,835 to 12,000 mm and widths from 2,400 to 2,550 mm.
As heavy construction-site vehicles, the AD chassis compete with comparable tippers from Mercedes-Benz Arocs, Volvo FMX and MAN TGS and are mostly delivered with tipper, skip or concrete-mixer bodies. Four-wheel drive up to 8x8 makes them particularly suited to unpaved ground in quarries and large construction sites.
Buying one of these construction vehicles used, what matters above all is frame cracking from sustained off-road duty, the condition of the tipping hydraulics and axle differentials, and the engine's operating hours and service records. Brakes, cab condition and the tightness of the axle gearboxes also belong on the checklist; spare parts are supplied through the Iveco commercial-vehicle network.
Sources: SpecCodex register, model data: Iveco AD, Iveco (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,882 cm³correct |
Dimensions and weights
| Length | 10,250 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,440 mmcorrect |
| Unladen weight | 16,850 kgcorrect |
| Gross vehicle weight | 49,000 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|
Frequently asked questions
How much does the Iveco AD 410T/F weigh?
The unladen weight is 16,850 kg.
What is the gross vehicle weight of the Iveco AD 410T/F?
49,000 kg.
What engine does the Iveco AD 410T/F have?
6 cylinders, 12,882 cm³ displacement.
What are the dimensions of the Iveco AD 410T/F?
10,250 mm × 2,550 mm.
When was the Iveco AD 410T/F built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
