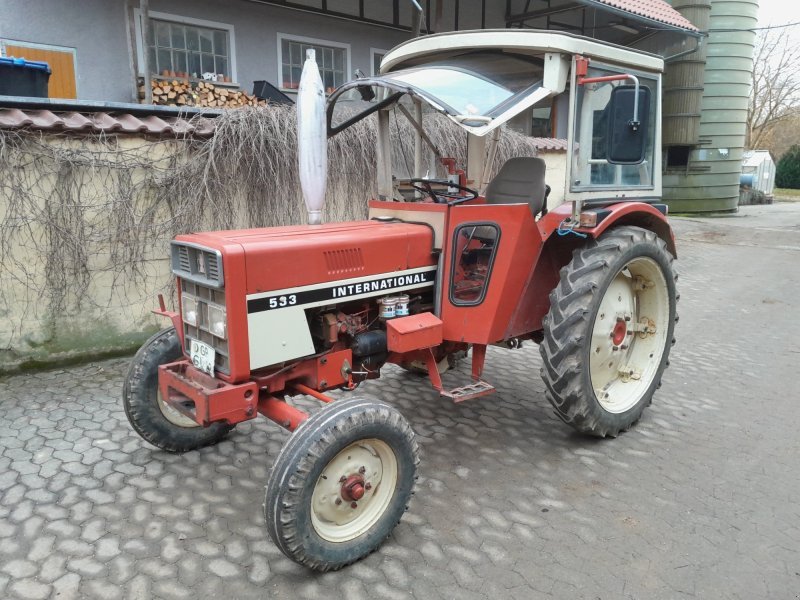

International Harvester 533 V/E
Built: 7/1973–2/1975 · Series: A-Familie
More machines from model year 1973
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Harvester A Family - Europe's small IH series 433 to 633 (V/E) in the tradition of the Farmall small tractors, three-cylinder engines of 2.5 to 2.9 litres, 26 to 38 kW, 1.5 to 2.1 t
The A family sits below International Harvester's large standard tractors in the model hierarchy - the successor to the small Farmall A, B and C tractors with which IH held the lower power segment for smallholdings and specialty crops from 1939 into the 1950s. The types listed here, 433, 533 and 633, carry the additional V/E designation for different equipment variants, some in a second version (533 V/E II) and as the special variant V 433/II. The type logic follows IH's scheme: the first digit rises with the power class, the following two with displacement.
Read on 3 more paragraphs
The register lists 6 versions with 25.6 to 38.1 kW from three-cylinder engines of 2,536 to 2,934 cm³, torque of 145 to 188 Nm at around 2,050 to 2,200 rpm, kerb weights of 1,545 to 2,115 kg, lengths of 2,950 to 3,390 mm, widths of 998 to 1,644 mm and heights of 1,229 to 2,280 mm; every model runs on diesel.
Tractors of this class were the workhorses of smaller farms and of viticulture, orchards and vegetable growing, where narrow track width and compact dimensions between rows mattered. Compared with the US Farmall models, the 433 to 633 are tailored to the tighter conditions of European farming.
On a used example of these small three-cylinder diesels, check compression and the injection pump, the clutch, front-axle bearings and kingpins on the narrow-track versions, brakes and the hydraulic pump; parts for engine and driveline are still available through IH specialists and independent farm-machinery dealers.
Sources: SpecCodex register, model data: International Harvester A-Familie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (32.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 161 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,536 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 111.1 mmcorrect |
| Injection pressure | 200 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,976 mmcorrect |
|---|---|
| Width | 1,145 mmcorrect |
| Height | 1,229 mmcorrect |
| Wheelbase | 1,920 mmcorrect |
| Ground clearance | 355 mmcorrect |
| Unladen weight | 1,545 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V/2Rcorrect |
| Front tyres | 4.50-16 (E: 5, 50-16)correct |
| Rear tyres | 10-24 (E: 10-28)correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 305 (E: 159)correct |
Where this model stands
Power-to-weight ratio: 21.3 kW/t (33 kW / 1.5 t)
Power class: Universal (40–100 hp)
Stronger than 28% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester 533 V/E have?
The International Harvester 533 V/E delivers 45 hp.
How much does the International Harvester 533 V/E weigh?
The unladen weight is 1,545 kg.
What engine does the International Harvester 533 V/E have?
3 cylinders, 2,536 cm³ displacement, Diesel.
How fast does the International Harvester 533 V/E go?
Top speed is 20 km/h.
What are the dimensions of the International Harvester 533 V/E?
2,976 mm × 1,145 mm × 1,229 mm.
When was the International Harvester 533 V/E built?
Production years: 7/1973–2/1975.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
