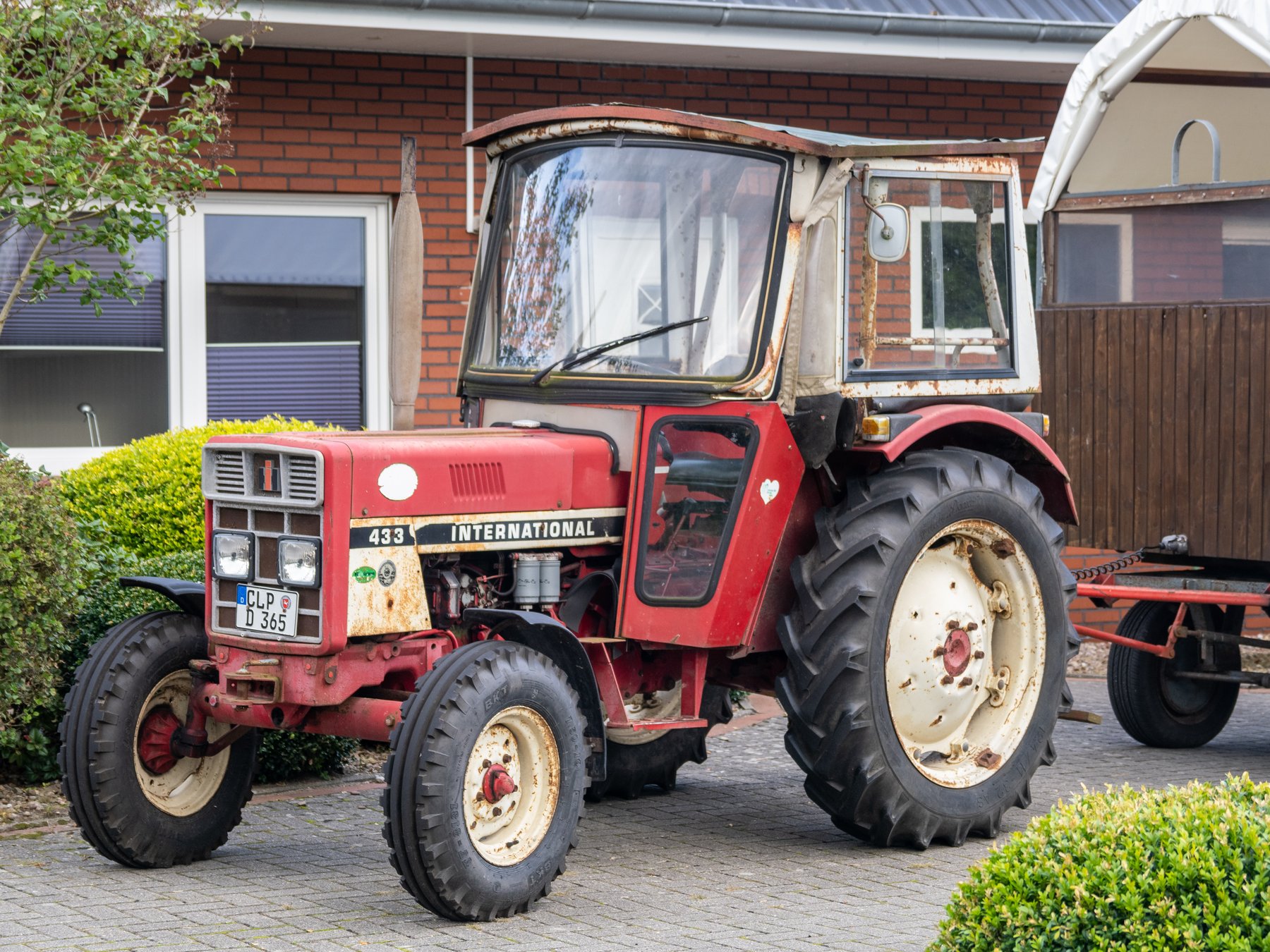

International Harvester 433
Built: January 1975–March 1990 · Series: A-Familie
More machines from model year 1975
International Harvester A Family - Europe's small IH series 433 to 633 (V/E) in the tradition of the Farmall small tractors, three-cylinder engines of 2.5 to 2.9 litres, 26 to 38 kW, 1.5 to 2.1 t
The A family sits below International Harvester's large standard tractors in the model hierarchy - the successor to the small Farmall A, B and C tractors with which IH held the lower power segment for smallholdings and specialty crops from 1939 into the 1950s. The types listed here, 433, 533 and 633, carry the additional V/E designation for different equipment variants, some in a second version (533 V/E II) and as the special variant V 433/II. The type logic follows IH's scheme: the first digit rises with the power class, the following two with displacement.
Read on 3 more paragraphs
The register lists 6 versions with 25.6 to 38.1 kW from three-cylinder engines of 2,536 to 2,934 cm³, torque of 145 to 188 Nm at around 2,050 to 2,200 rpm, kerb weights of 1,545 to 2,115 kg, lengths of 2,950 to 3,390 mm, widths of 998 to 1,644 mm and heights of 1,229 to 2,280 mm; every model runs on diesel.
Tractors of this class were the workhorses of smaller farms and of viticulture, orchards and vegetable growing, where narrow track width and compact dimensions between rows mattered. Compared with the US Farmall models, the 433 to 633 are tailored to the tighter conditions of European farming.
On a used example of these small three-cylinder diesels, check compression and the injection pump, the clutch, front-axle bearings and kingpins on the narrow-track versions, brakes and the hydraulic pump; parts for engine and driveline are still available through IH specialists and independent farm-machinery dealers.
Sources: SpecCodex register, model data: International Harvester A-Familie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.6 kW)correct |
| Rated speed | 2,050 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,539 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,390 mmcorrect |
|---|---|
| Width | 1,644 mmcorrect |
| Height | 2,280 mmcorrect |
| Wheelbase | 2,070 mmcorrect |
| Ground clearance | 433 mmcorrect |
| Unladen weight | 2,115 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | IH-Synchron 8+4correct |
| Front tyres | 6.00-16 AS, 6 PR 7.50-16 AScorrect |
| Rear tyres | 12.4-28 AS, 6 PR 12.4-32 AS Breitreifen 16.9-28 AS oder 18.4-26 AScorrect |
| Top speed | 27 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 17,487correct |
Where this model stands
Power-to-weight ratio: 12.1 kW/t (26 kW / 2.1 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester 433 have?
The International Harvester 433 delivers 35 hp.
How much does the International Harvester 433 weigh?
The unladen weight is 2,115 kg.
What engine does the International Harvester 433 have?
3 cylinders, 2,539 cm³ displacement, Diesel.
How fast does the International Harvester 433 go?
Top speed is 27 km/h.
What are the dimensions of the International Harvester 433?
3,390 mm × 1,644 mm × 2,280 mm.
When was the International Harvester 433 built?
Production years: Januar 1975–März 1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
