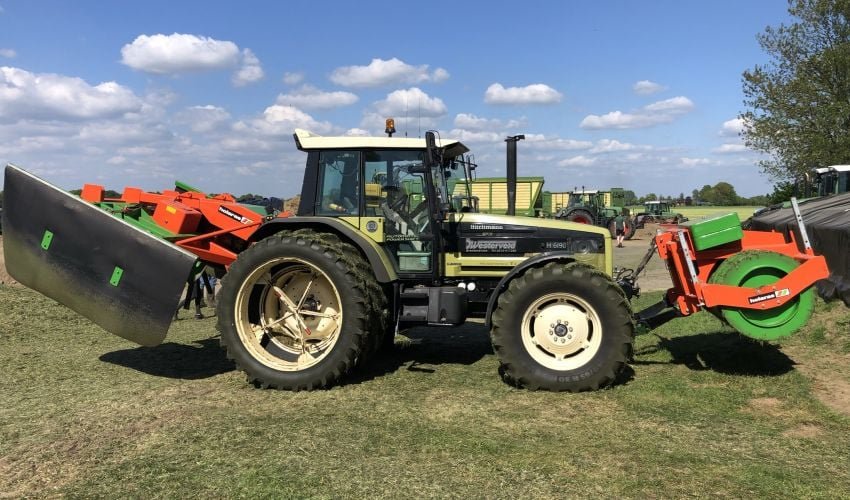

Hürlimann / Slh H-6190 MASTER – specifications
Built: 1992–2001 · Series: MASTER-Baureihe
With the H-6190 MASTER, Hürlimann / Slh offers a model from the MASTER series. Production: 1992–2001. The engine delivers 189 hp (139 kW), has 6 cylinders, with a displacement of 6,000 cm³. Rated speed is 2,350 rpm. The machine is 4,780 mm long, 2,470 mm wide and 2,930 mm high. The unladen weight is 6,000 kg. The wheelbase measures 2,850 mm. Ground clearance is 550 mm. Top speed is 40 km/h. Transmission: 27 V/27 R. The engine is water-cooled. Tyres: front 16.9 R 30 AS, rear 20.8 R 38 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Construction: unit construction (no separate frame). Rated output across the Hürlimann / Slh range ranges from 110 to 189 hp; the H-6190 MASTER sits at the top of that range with 189 hp. Its immediate neighbours are the H-6170 (A) below it with 165 hp. Rated output across the Hürlimann / Slh range ranges from 80.9 to 139 kW; here the H-6190 MASTER sits at the top of that range with 139 kW. 5 Hürlimann / Slh models across 2 series are on record.
Data for the version built 1992–2001 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann Master series: large six-cylinder tractors from Wil, Switzerland, H-6165 and H-6190 MASTER, 121 to 139 kW, under the SAME group
The Master series formed the flagship of Hürlimann's line-up, the Swiss tractor maker founded in 1929 in Wil, canton St. Gallen, which has belonged to Italy's SAME group since 1979. Within the SAME Deutz-Fahr group, Hürlimann formed the third independent tractor brand alongside Same and Deutz-Fahr, with its own plant in Wil. The H-6165 and H-6190 MASTER are large six-cylinder tractors whose type designation names the engine family and power class.
Read on 3 more paragraphs
The register lists 2 versions here with 120.6 to 139 kW from six-cylinder engines of 6,000 cm³, torque of around 633 Nm at a rated speed of 2,350 rpm, and unladen weights of 5,830 to 6,000 kg, with lengths of 4,750 to 4,780 mm, widths of 2,240 to 2,470 mm and heights of 2,880 to 2,930 mm.
As the flagship series, Master targeted large arable farms in Switzerland and the rest of Europe, competing there with the large models from Fiat, Same and Deutz-Fahr, with which Hürlimann increasingly shared technology after joining the SAME group. The cab offered the ride comfort typical of large tractors in this class.
When buying one of these large six-cylinder tractors, attention should go to the condition of the engine and injection system, the tightness of the hydraulics, rust on the fenders and cab floor, and the condition of the clutch and transmission, as well as the tightness of the cab mounts and the function of the pto; spare parts for the Hürlimann brand are available through the SDF dealer network.
Sources: SpecCodex register, model data: Hürlimann Master-Baureihe, Hürlimann (SDF-Marke, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 189 hp (139 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,780 mmcorrect |
|---|---|
| Width | 2,470 mmcorrect |
| Height | 2,930 mmcorrect |
| Wheelbase | 2,850 mmcorrect |
| Ground clearance | 550 mmcorrect |
| Unladen weight | 6,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 27 V/27 Rcorrect |
| Front tyres | 16.9 R 30 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 23.2 kW/t (139 kW / 6 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
