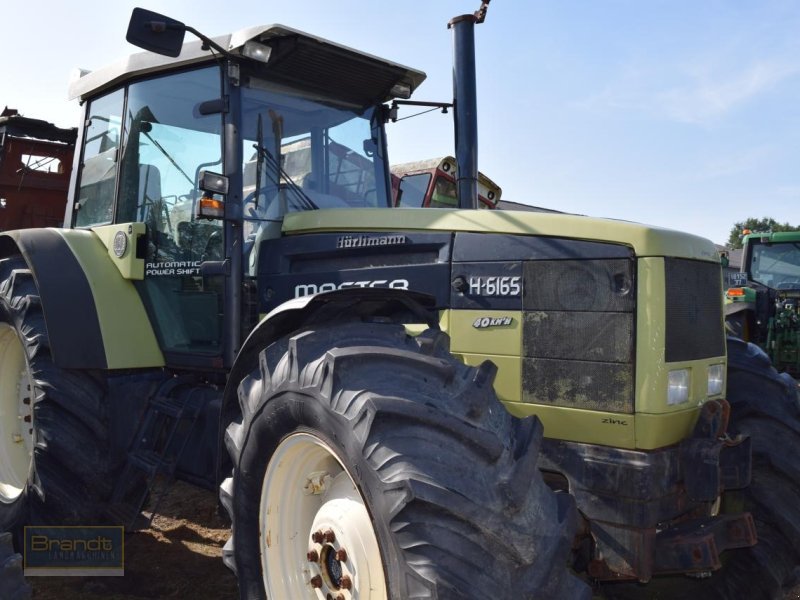

Hürlimann / Slh H-6165 MASTER
Built: 1991–2001 · Series: MASTER-Baureihe
More machines from model year 1991
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann Master series: large six-cylinder tractors from Wil, Switzerland, H-6165 and H-6190 MASTER, 121 to 139 kW, under the SAME group
The Master series formed the flagship of Hürlimann's line-up, the Swiss tractor maker founded in 1929 in Wil, canton St. Gallen, which has belonged to Italy's SAME group since 1979. Within the SAME Deutz-Fahr group, Hürlimann formed the third independent tractor brand alongside Same and Deutz-Fahr, with its own plant in Wil. The H-6165 and H-6190 MASTER are large six-cylinder tractors whose type designation names the engine family and power class.
Read on 3 more paragraphs
The register lists 2 versions here with 120.6 to 139 kW from six-cylinder engines of 6,000 cm³, torque of around 633 Nm at a rated speed of 2,350 rpm, and unladen weights of 5,830 to 6,000 kg, with lengths of 4,750 to 4,780 mm, widths of 2,240 to 2,470 mm and heights of 2,880 to 2,930 mm.
As the flagship series, Master targeted large arable farms in Switzerland and the rest of Europe, competing there with the large models from Fiat, Same and Deutz-Fahr, with which Hürlimann increasingly shared technology after joining the SAME group. The cab offered the ride comfort typical of large tractors in this class.
When buying one of these large six-cylinder tractors, attention should go to the condition of the engine and injection system, the tightness of the hydraulics, rust on the fenders and cab floor, and the condition of the clutch and transmission, as well as the tightness of the cab mounts and the function of the pto; spare parts for the Hürlimann brand are available through the SDF dealer network.
Sources: SpecCodex register, model data: Hürlimann Master-Baureihe, Hürlimann (SDF-Marke, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 164 hp (120.6 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 633 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,750 mmcorrect |
|---|---|
| Width | 2,240 mmcorrect |
| Height | 2,880 mmcorrect |
| Wheelbase | 2,850 mmcorrect |
| Ground clearance | 515 mmcorrect |
| Unladen weight | 5,830 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 27 V/27 Rcorrect |
| Front tyres | 16.9 R 30 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.7 kW/t (121 kW / 5.8 t)
Power class: Large (100–180 hp)
Stronger than 86% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann / Slh H-6165 MASTER have?
The Hürlimann / Slh H-6165 MASTER delivers 164 hp.
How much does the Hürlimann / Slh H-6165 MASTER weigh?
The unladen weight is 5,830 kg.
What engine does the Hürlimann / Slh H-6165 MASTER have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the Hürlimann / Slh H-6165 MASTER go?
Top speed is 40 km/h.
What are the dimensions of the Hürlimann / Slh H-6165 MASTER?
4,750 mm × 2,240 mm × 2,880 mm.
When was the Hürlimann / Slh H-6165 MASTER built?
Production years: 1991–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
