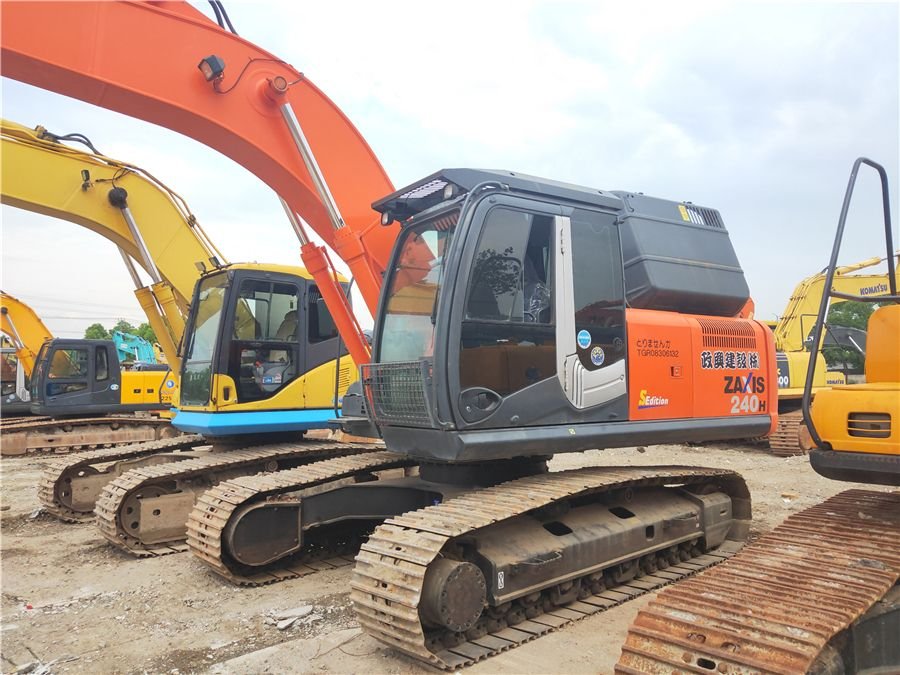

Hitachi ZX240H – specifications
Series: Hitachi Hydraulic Excavator
The ZX240H from Hitachi is part of the Hitachi Hydraulic Excavator series. The engine delivers 124.5 kW, has 6 cylinders, with a displacement of 6,494.2 cm³. Torque is 637.1 Nm. Rated speed is 2,100 rpm. The unladen weight is 18,500 kg. Ground clearance is 460.2 mm. The tank holds 380.1 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 408.1 l/min. The hydraulic tank holds 303.2 litres. Working pressure is 343.4 bar. The cooling system holds 23.1 litres. The oil fill is 25.4 litres. The engine fitted is the CC-6BG1T. The Hitachi Hydraulic Excavator series covers 158 models. Rated output within it ranges from 42.4 to 481.7 kW; the ZX240H sits in the lower part of that range with 124.5 kW. Its immediate neighbours are the ZX225US-3 below it with 122.3 kW and the EX280H-5 above it with 125.1 kW. Unladen weight within it ranges from 8,143 to 108,000 kg; here the ZX240H sits at the bottom of that range with 18,500 kg. 357 Hitachi models across 24 series are on record.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hitachi ZX – what the number and letters reveal about weight class, LC/US/W undercarriage variants and the adjustable boom option across the ZAXIS range
Hitachi codes usually start with ZX, short for the ZAXIS line. The following number places the model in an approximate operating-weight class, letters such as LC, US or W describe the undercarriage and configuration, and a dash number at the end marks the generation.
Read on 5 more paragraphs
LC marks a widened undercarriage for extra stability, US denotes ultra-short-tail models with a compact rear overhang for tight jobsites, and W marks wheeled machines. Current models run as ZAXIS-7, while older stock is still labelled -3, -5 or -6.
Alongside these sits the older EX line, such as the EX700: mechanically simpler than the ZX models, with less electronics, but built rugged for heavy continuous duty.
Alongside the one-piece monoboom, many ZX models offer a two-piece adjustable boom whose knuckle can swing sideways; this allows digging along walls or pipelines without having to square the machine itself up to them, though at somewhat lower breakout force than the rigid monoboom.
The collective entry spans small excavators from around 42 kW up to large machines above 480 kW. When buying used, check the hour meter along with the slew ring, boom-and-bucket linkage bushings and any leaks at the hydraulic cylinders.
In short: ZX plus size number plus undercarriage letter plus generation digit make up the full code, as seen on models like ZX120, ZX200 or ZX330.
Sources: SpecCodex register, model data: Hitachi Hydraulic Excavator
Technical data
Engine
| Engine model | CC-6BG1Tcorrect |
|---|---|
| Power | 124.5 kWcorrect |
| Rated speed | 2,100 rpmcorrect |
| Torque | 637.1 Nmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,494.2 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 23.1 lcorrect |
| Engine oil capacity | 25.4 lcorrect |
Dimensions and weights
| Ground clearance | 460.2 mmcorrect |
|---|---|
| Unladen weight | 18,500 kgcorrect |
Working data
| Pump flow | 408.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 303.2 lcorrect |
| Hydraulic pressure | 343.4 barcorrect |
| Fuel tank capacity | 380.1 lcorrect |
Other data
| Cab height | 3,020.6 mmcorrect |
|---|
Frequently asked questions
More machines with this engine (CC-6BG1T, 5)
Where this model stands
Power-to-weight ratio: 6.7 kW/t (124 kW / 18.5 t)
Stronger than 60% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
