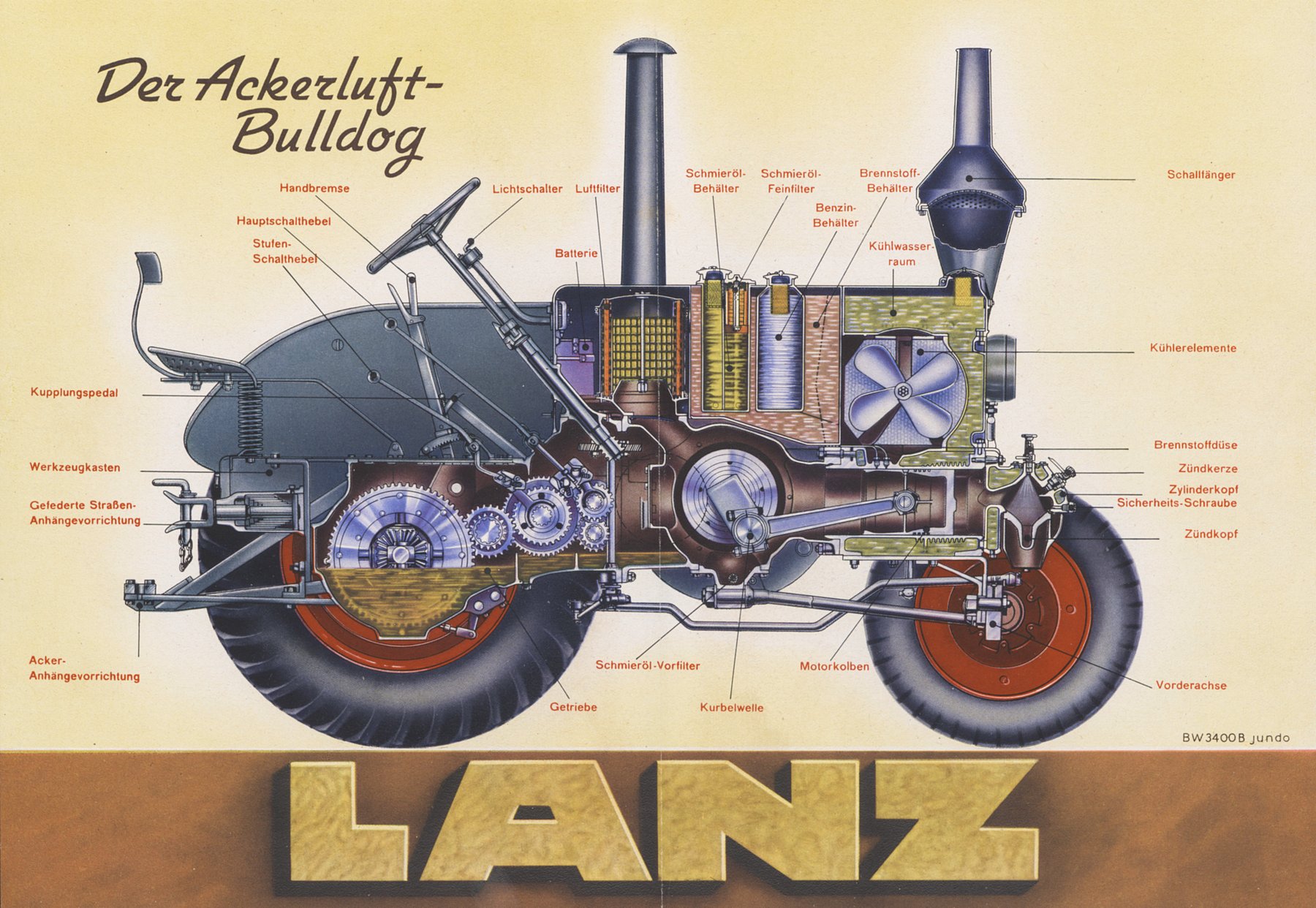

Heinrich Lanz D 8531
Lata produkcji: 1934–1944 · Seria: HR 7
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 1 |
| Displacement cm3 | 10338 cm3 |
| Drive type | Hinterradantrieb |
| Fuel | Vielstoff |
| Gearbox | 6V/2R |
| Ground clearance mm | 270 mm |
| Height mm | 1860 mm |
| Length mm | 3300 mm |
| Power km | 30 KM |
| Power kw | 22 kW |
| Rated rpm | 540 obr./min |
| Tires front | 7.00-20 |
| Tires rear | 10.50-24 |
| Top speed kmh | 21.5 km/h |
| Weight kg | 3800 kg |
| Wheelbase mm | 1940 mm |
| Width mm | 1800 mm |
Inne modele tej serii
Źródła: [1]
