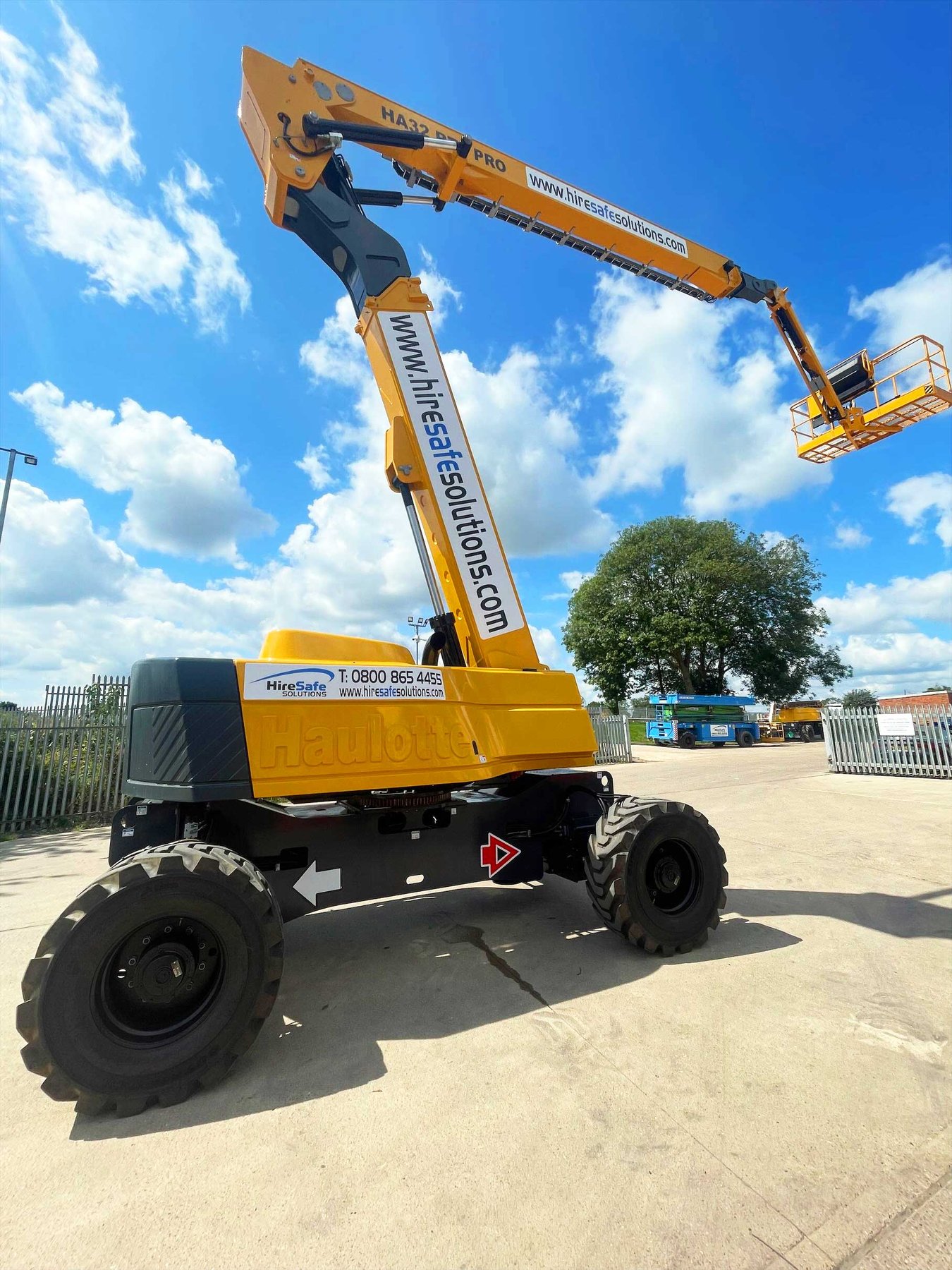

Haulotte HA32 CJ PLUS – specifications
Series: Haulotte Boom Lift
The HA32 CJ PLUS is a work platform manufactured by Haulotte, belonging to the Boom Lift series. This model falls under the category of aerial work platforms. The machine has an overall length of 5,669 mm, a width of 950 mm, and a height of 2,010 mm. With an empty weight of 7,111.4 kg, it is positioned in the mid-range segment of the series. The ground clearance is 127 mm, which is relevant for overcoming uneven terrain at the job site.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The platform offers a load capacity of 226.8 kg and measures 1,188.7 mm in length and 823 mm in width. These dimensions allow for the transport of tools and materials for elevated access. The machine is powered by a 48 V electrical system with a battery capacity of 320 Ah. The maximum speed is 6 km/h, determining its use on construction sites or in indoor facilities. The gradeability of 25% allows it to handle inclined surfaces. The hydraulic oil volume of 15.1 l powers the boom movements. The tire size 23.5x7.5 ensures the necessary stability during operation.
Within the series comparison, the HA32 CJ PLUS ranks 28th out of 49 models in terms of empty weight. The next smaller model, the HA16SPX, weighs 6,850 kg, while the next larger model, the HA15IP, weighs 7,300 kg. The weight of the HA32 CJ PLUS is practically identical to that of the HA16PX, HA32 CJ, and HA43 JE models. The entire weight range of the series spans from 645 to 23,904.3 kg. This classification illustrates its positioning within the portfolio, without specifying further technical differences between the mentioned weight groups.
Haulotte Boom Lifts: What TX, TPX and TJ Actually Mean
Models like the H14 TX, H16 TPX or H28 TJ carry an "H" for telescopic boom lift, a number, and a suffix. Comparing the manufacturer's own datasheets shows the H14 TX reaches a working height of 14.07 m and the H16 TPX 15.44 m — so the number roughly tracks working height in metres.
Read on 4 more paragraphs
The key difference between TX and TPX sits in the boom tip: per the datasheet, the H16 TPX adds a pivoting jib with ±70° of vertical movement that the H14 TX simply doesn't have. Models carrying a "J" in the name, like the H28 TJ, likewise carry such a jib for fine basket positioning. Articulating models marked "HA", such as the HA16X, use a knuckle boom instead of pure telescoping.
Platform capacity stays constant across the category: both recorded values in the SpecCodex data sit at 230 kg, matching the manufacturer's own figure for the H14 TX/H16 TPX line.
When buying used, check the jib joint's condition, hydraulic hoses running inside the telescoping sections, the 4WD and differential-lock function, and hours on the clock. Since recorded weight spans from 645 kg to 23.9 tonnes, always confirm the exact model before ordering parts.
In short: the number is a rough working height, while TX/TPX/TJ describe the boom tip and terrain equipment.
Sources: SpecCodex register, model data: Haulotte Boom Lift, — Haulotte: Datenblatt H14 TX / H16 TPX, — Haulotte France: Gamme nacelles télescopiques
Technical data
Dimensions and weights
| Length | 5,669 mmcorrect |
|---|---|
| Width | 950 mmcorrect |
| Height | 2,010 mmcorrect |
| Ground clearance | 127 mmcorrect |
| Unladen weight | 7,111.4 kgcorrect |
| Platform length | 1,188.7 mmcorrect |
| Platform width | 823 mmcorrect |
Drivetrain and chassis
| Tyre size | 23.5x7.5correct |
|---|---|
| Top speed | 6 km/hcorrect |
Working data
| Hydraulic oil capacity | 15.1 lcorrect |
|---|---|
| Platform capacity | 226.8 kgcorrect |
| Gradeability | 25 %correct |
Electrical data
| Battery capacity | 320 Ahcorrect |
|---|
Other data
| System voltage | 48 Vcorrect |
|---|
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
