Haulotte H14TX
Series: Haulotte Boom Lift

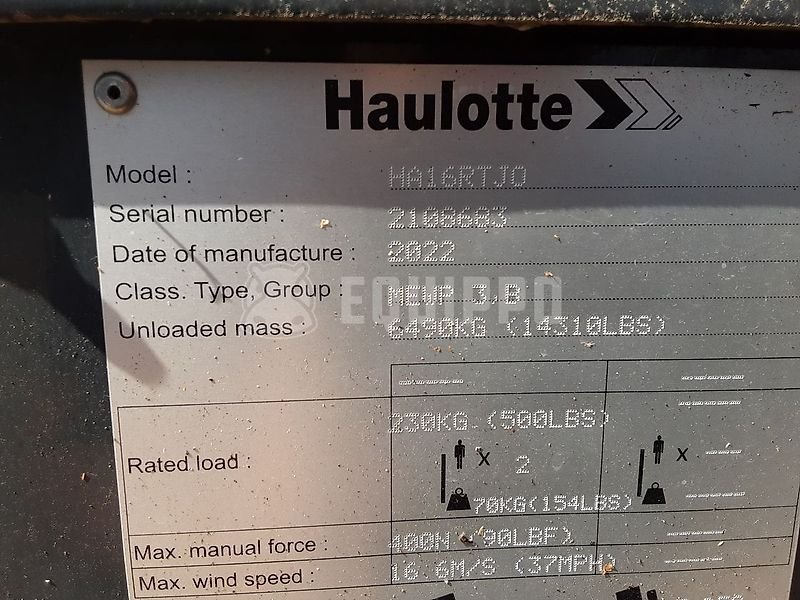

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Haulotte Boom Lifts: What TX, TPX and TJ Actually Mean
Models like the H14 TX, H16 TPX or H28 TJ carry an "H" for telescopic boom lift, a number, and a suffix. Comparing the manufacturer's own datasheets shows the H14 TX reaches a working height of 14.07 m and the H16 TPX 15.44 m — so the number roughly tracks working height in metres.
Read on 4 more paragraphs
The key difference between TX and TPX sits in the boom tip: per the datasheet, the H16 TPX adds a pivoting jib with ±70° of vertical movement that the H14 TX simply doesn't have. Models carrying a "J" in the name, like the H28 TJ, likewise carry such a jib for fine basket positioning. Articulating models marked "HA", such as the HA16X, use a knuckle boom instead of pure telescoping.
Platform capacity stays constant across the category: both recorded values in the SpecCodex data sit at 230 kg, matching the manufacturer's own figure for the H14 TX/H16 TPX line.
When buying used, check the jib joint's condition, hydraulic hoses running inside the telescoping sections, the 4WD and differential-lock function, and hours on the clock. Since recorded weight spans from 645 kg to 23.9 tonnes, always confirm the exact model before ordering parts.
In short: the number is a rough working height, while TX/TPX/TJ describe the boom tip and terrain equipment.
Sources: SpecCodex register, model data: Haulotte Boom Lift, — Haulotte: Datenblatt H14 TX / H16 TPX, — Haulotte France: Gamme nacelles télescopiques
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 42.2 hp (31 kW)correct |
Dimensions and weights
| Length | 7,600 mmcorrect |
|---|---|
| Width | 2,301.2 mmcorrect |
| Wheelbase | 2,002.5 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 6,040 kgcorrect |
Drivetrain and chassis
| Tyre size | 14-17.5correct |
|---|---|
| Top speed | 6.1 km/hcorrect |
| Turning radius | 4,800 mmcorrect |
Working data
| Hydraulic oil capacity | 150.3 lcorrect |
|---|---|
| Fuel tank capacity | 150.3 lcorrect |
Where this model stands
Power-to-weight ratio: 5.1 kW/t (31 kW / 6 t)
Stronger than 41% of the aerial work platforms in the register — out of 205 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Haulotte H14TX have?
The Haulotte H14TX delivers 42.2 hp.
How much does the Haulotte H14TX weigh?
The unladen weight is 6,040 kg.
How fast does the Haulotte H14TX go?
Top speed is 6.1 km/h.
What are the dimensions of the Haulotte H14TX?
7,600 mm × 2,301 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
