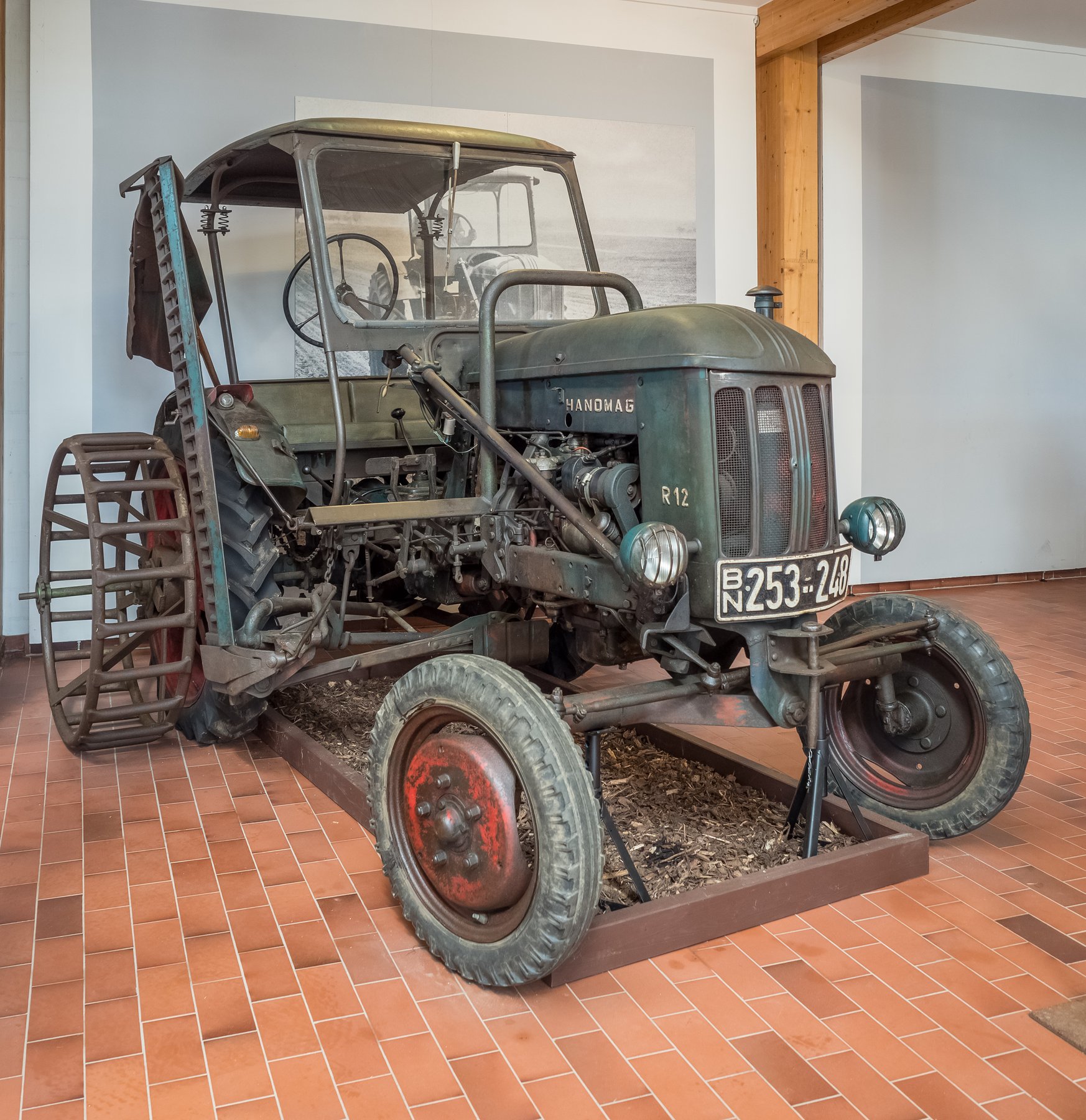

Hanomag R12
Series: Other models
The Hanomag R12 is a tractor from Hanomag. 8.9 kW is available.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 8.9 to 63 kW; with 8.9 kW, the R12 sits at the bottom end. The next one up is the Greif C 115 with 10 kW.
Hanomag – other models: collective page of German tractors outside the named ranges, from the R types through Granit, Brillant and Perfekt to the articulated Combitrac, 8.8 to 63 kW
This page gathers the Hanomag tractors the register could not assign to a named range, from the early pre-war R types to the post-war Granit, Brillant, Perfekt and Robust ranges and the articulated Combitrac models. Hanomag, the Hannoversche Maschinenbau AG, sold its farm-equipment division to Massey-Ferguson in 1971 and ended tractor production afterwards. The R types such as the R16, R22 or R40 carry roughly their power in hp in the number, while Combitrac models such as the C218 and R440 Combitrac are articulated four-wheel-drive tractors for use in vineyards and orchards.
Read on 3 more paragraphs
The register lists here 56 versions with 8.8 to 63 kW from one- to six-cylinder engines of 511 to 5,702 cm³, unladen weights of 800 to 3,750 kg, lengths of 2,340 to 3,990 mm, widths of 1,480 to 2,110 mm and heights of 1,450 to 2,390 mm; torque ranges from 117 to 265 Nm at rated speeds of 1,100 to 2,600 rpm. Most models run on diesel, a few early types on crude oil, and the R40 Holzgas on a wartime wood-gas unit.
In the 1950s and 1960s Hanomag was among the significant German tractor makers alongside Fendt, Deutz and Eicher, focused on mid-sized yard and field tractors as well as the specialised articulated Combitrac for special crops.
When buying used, on the older R types the cooling system, injection pump and gearbox condition matter, on the Combitrac models additionally the articulation joint and four-wheel-drive bearings; parts are now only found through Hanomag specialists and reproduction-parts makers.
Technical data
Engine
| Engine make | Hanomagcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 12 hp (8.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 511 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,730 mmcorrect |
|---|---|
| Wheelbase | 1,800 mmcorrect |
| Unladen weight | 800 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 6/2-manual gearbox gearboxcorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Top speed | 19 km/hcorrect |
Origin and approval
| Plant | Germanycorrect |
|---|
Other data
| PTO speed | 575/1484 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 11.1 kW/t (9 kW / 0.8 t)
Power class: Compact (< 40 hp)
Stronger than 2% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag R12 have?
The Hanomag R12 delivers 12 hp.
How much does the Hanomag R12 weigh?
The unladen weight is 800 kg.
What engine does the Hanomag R12 have?
1 cylinders, 511 cm³ displacement, Diesel.
How fast does the Hanomag R12 go?
Top speed is 19 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
