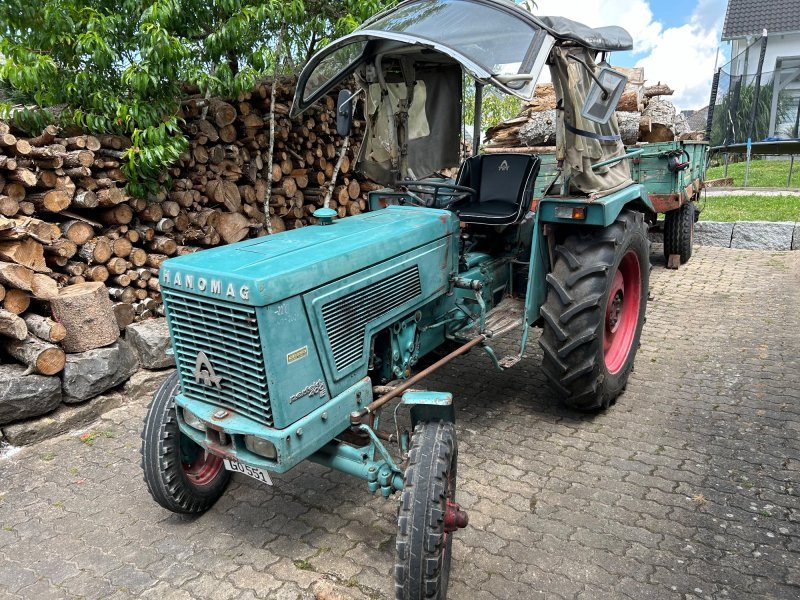

Hanomag Perfekt 400
Built: 1963–1964 · Series: Perfekt
More machines from model year 1963
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hanomag Perfekt 301 to 401E (1950s) – the four-cylinder standard tractors from Hanover: E for electric start, S for special equipment, throughout a 1.8-litre diesel, 19 to 25 kW, 1.68 to 1.78 t
The Perfekt range was Hanomag's mid-segment standard tractor of the 1950s, built at the Hanover-Linden plant, which had made tractors since the 1930s. All Perfekt models share the same four-cylinder diesel engine of 1.8 litres; the type logic differentiates little by output through the number, but chiefly by equipment: E stands for the version with electric starter instead of a hand crank, S for upgraded special equipment, and the combination 401E(S) unites both in the latest development stage.
Read on 3 more paragraphs
The register lists 5 versions with a uniform 1,797 cm³ displacement, outputs of 19 to 25 kW and rated speeds of 2,400 to 2,600 rpm. Service weights range from 1,675 to 1,780 kg, and among the four measured models lengths run from 3,300 to 3,380 mm and widths from 1,560 to 1,580 mm.
As a uniformly engined range, the Perfekt stood for the typical West German post-war mechanisation of mid-size farms, competing with Deutz, Fendt and Eicher, who entered the same market segment with comparable power classes. After the Perfekt, Hanomag followed with the stronger Granit models.
On used tractors, operating hours, the condition of injection pump, cylinder head and clutch, the function of the electric starter on E models, rust on wings and bonnet, and linkage and PTO count; spare parts, as with all early Hanomag tractors, are largely the domain of specialist vintage-tractor dealers.
Sources: SpecCodex register, model data: Hanomag Perfekt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 32 hp (23.4 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 101 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 1,797 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,560 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 2,030 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,770 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2-Getriebecorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 5.00-16, 5.50-16, 6.00-16correct |
| Rear tyres | 9-32, 9-36, 10-28, 11-28correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Plant | Germanycorrect |
|---|---|
| Construction | frameless unit constructioncorrect |
| Units built | 2,450correct |
Other data
| PTO speed | 570 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.2 kW/t (23 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 18% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag Perfekt 400 have?
The Hanomag Perfekt 400 delivers 32 hp.
How much does the Hanomag Perfekt 400 weigh?
The unladen weight is 1,770 kg.
What engine does the Hanomag Perfekt 400 have?
4 cylinders, 1,797 cm³ displacement, Diesel.
How fast does the Hanomag Perfekt 400 go?
Top speed is 20 km/h.
What are the dimensions of the Hanomag Perfekt 400?
3,300 mm × 1,560 mm × 1,540 mm.
When was the Hanomag Perfekt 400 built?
Production years: 1963–1964.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
