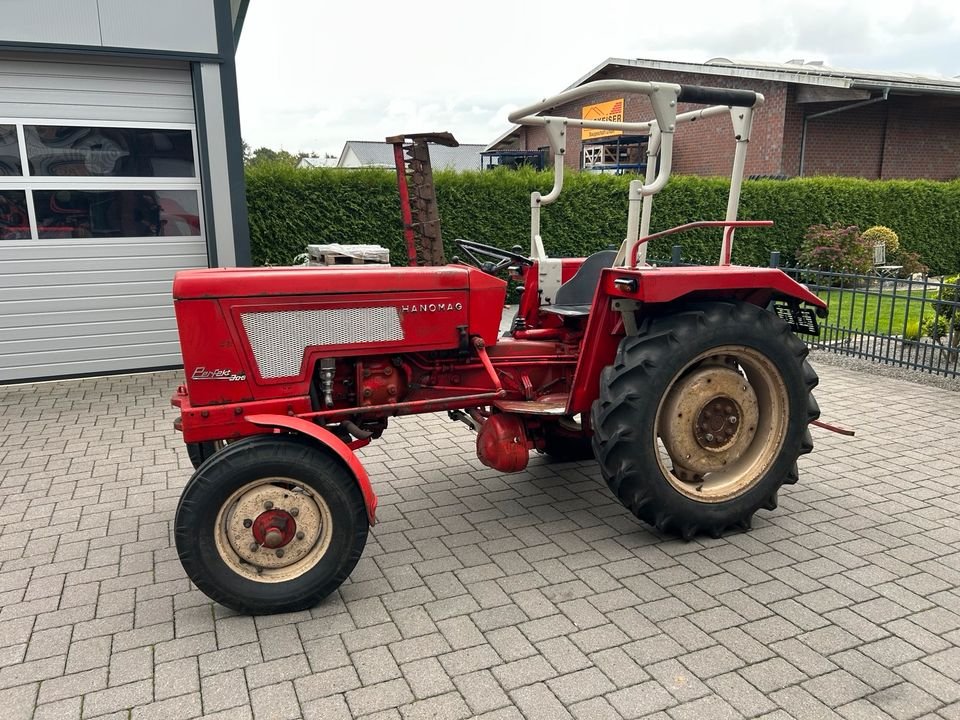

Hanomag Perfekt 301 (S)
Built: 1964–1968 · Series: Perfekt
More machines from model year 1964
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hanomag Perfekt 301 to 401E (1950s) – the four-cylinder standard tractors from Hanover: E for electric start, S for special equipment, throughout a 1.8-litre diesel, 19 to 25 kW, 1.68 to 1.78 t
The Perfekt range was Hanomag's mid-segment standard tractor of the 1950s, built at the Hanover-Linden plant, which had made tractors since the 1930s. All Perfekt models share the same four-cylinder diesel engine of 1.8 litres; the type logic differentiates little by output through the number, but chiefly by equipment: E stands for the version with electric starter instead of a hand crank, S for upgraded special equipment, and the combination 401E(S) unites both in the latest development stage.
Read on 3 more paragraphs
The register lists 5 versions with a uniform 1,797 cm³ displacement, outputs of 19 to 25 kW and rated speeds of 2,400 to 2,600 rpm. Service weights range from 1,675 to 1,780 kg, and among the four measured models lengths run from 3,300 to 3,380 mm and widths from 1,560 to 1,580 mm.
As a uniformly engined range, the Perfekt stood for the typical West German post-war mechanisation of mid-size farms, competing with Deutz, Fendt and Eicher, who entered the same market segment with comparable power classes. After the Perfekt, Hanomag followed with the stronger Granit models.
On used tractors, operating hours, the condition of injection pump, cylinder head and clutch, the function of the electric starter on E models, rust on wings and bonnet, and linkage and PTO count; spare parts, as with all early Hanomag tractors, are largely the domain of specialist vintage-tractor dealers.
Sources: SpecCodex register, model data: Hanomag Perfekt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (19 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,797 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,560 mmcorrect |
| Height | 1,510 mmcorrect |
| Wheelbase | 2,030 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,675 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2-manual gearbox gearboxcorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 5-16; 5, 5-16; 6-16correct |
| Rear tyres | 9-32; 9-36; 10-28; 11-28correct |
| Top speed | 19.3 km/hcorrect |
Working data
| Lifting capacity | 1,300 kgcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 5,001correct |
Where this model stands
Power-to-weight ratio: 11.3 kW/t (19 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 13% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag Perfekt 301 (S) have?
The Hanomag Perfekt 301 (S) delivers 25 hp.
How much does the Hanomag Perfekt 301 (S) weigh?
The unladen weight is 1,675 kg.
What engine does the Hanomag Perfekt 301 (S) have?
4 cylinders, 1,797 cm³ displacement, Diesel.
How fast does the Hanomag Perfekt 301 (S) go?
Top speed is 19.3 km/h.
How much does the rear linkage of the Hanomag Perfekt 301 (S) lift?
The rear linkage lifts 1,300 kg.
What are the dimensions of the Hanomag Perfekt 301 (S)?
3,300 mm × 1,560 mm × 1,510 mm.
When was the Hanomag Perfekt 301 (S) built?
Production years: 1964–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
