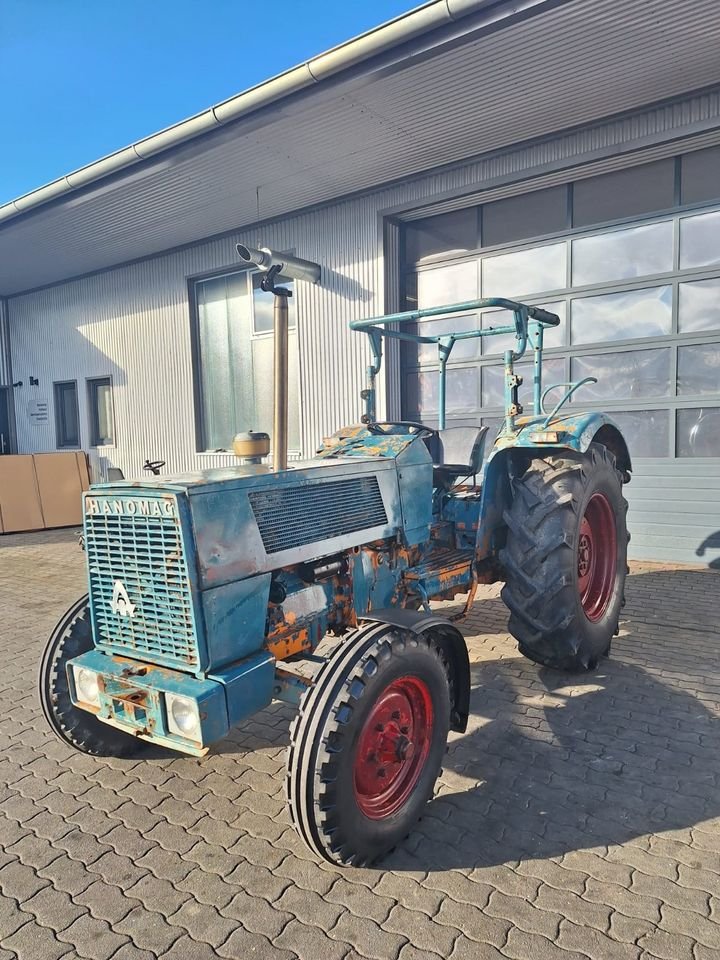

Hanomag Brillant 601 (S)
Lata produkcji: 1967–1969 · Seria: Brillant
Dane techniczne
| Construction | rahmenlose Blockbauweise |
| Cooling | Wasser |
| Cylinders | 4 |
| Displacement cm3 | 3142 cm3 |
| Drive type | Hinterradantrieb |
| Fuel | Diesel |
| Gearbox | 12/3-Gruppenschaltgetriebe |
| Ground clearance mm | 360 mm |
| Height mm | 1910 mm |
| Length mm | 3750 mm |
| Power km | 58 KM |
| Power kw | 42.5 kW |
| Rated rpm | 2600 U obr./min |
| Tires front | 6.00-20, 7.50-18, 7.50-20 |
| Tires rear | 11-36, 12-36, 14-30, 15-30, 15.5-38 |
| Top speed kmh | 19.87 km/h |
| Units built | 3500 |
| Weight kg | 3240 kg |
| Wheelbase mm | 2270 mm |
| Width mm | 1850 mm |
Inne modele tej serii
Brillant 600 (S)
Brillant 601 A (S)
Brillant 601 L (S)
Brillant 700 (S)
Brillant 700 A (S)
Brillant 701 (S)
Brillant 701 A (S)
Źródła: [1]
