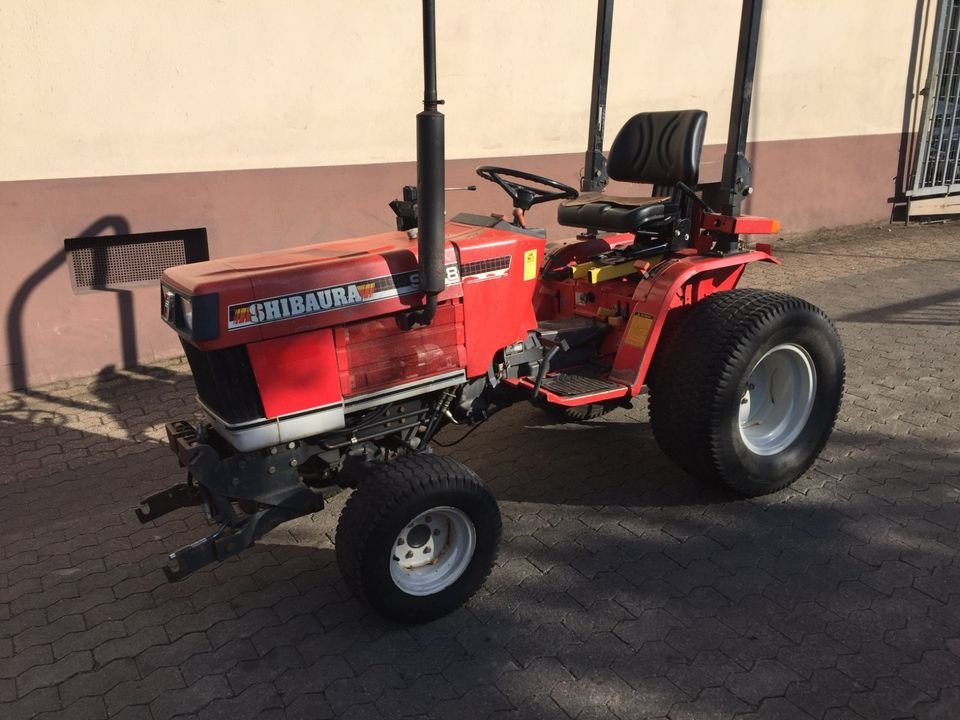

Ford/shibaura 1000
Built: 1973–1976 · Series: 100 er-Baureihe
More machines from model year 1973
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/Shibaura 100 series (1970s and 1980s) – the Japanese compact tractors in Ford blue: 1000 to 1900, the number as size class, A for four-wheel drive, Shibaura two- and three-cylinders of 0.7 to 1.4 litres, 9 to 21 kW
The 100 series is the result of one of the earliest partnerships between a Western tractor group and a Japanese maker: from 1973 Ford had compact tractors for horticulture, municipalities and hobby farms built by Shibaura in Matsumoto and sold them in North America and Europe in Ford blue as Ford 1000 to 1900 – Shibaura, in tractor building since 1950, supplied design and engines, Ford sales and name. The type logic: the number orders the size in ascending order – 1000 and 1100 the smallest two-cylinders, 1200 to 1900 the three-cylinders – A marks four-wheel drive, in demand in this class for front loader and mowing on slopes. The engines are Shibaura's own small diesels of 0.7 to 1.4 litres at high rated speeds of 2,500 to 2,800 rpm.
Read on 3 more paragraphs
The register lists 8 versions with 9.2 to 21.1 kW from two- and three-cylinders of 706 to 1,434 cm³, unladen weights from 560 to 1,220 kg, lengths from 2,410 to 3,010 mm, widths from 1,070 to 1,460 mm and heights from 1,380 to 2,190 mm.
The Ford–Shibaura partnership lasted through the 20 series into the New Holland era and lives on today: New Holland's compact tractors (Boomer) still come from Japan, and Shibaura has belonged to IHI since the 1990s.
On used tractors, operating hours, compression and injection of the Shibaura engine, clutch, gearbox and four-wheel-drive clutch on A models, PTO and hydraulics for mower and front loader count; parts run through New Holland and Shibaura specialists, wear parts are readily available.
Sources: SpecCodex register, model data: Ford/Shibaura 100er-Baureihe, Shibaura (IHI Shibaura Machinery, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.4 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,272 cm³correct |
| Bore | 90 mmcorrect |
| Stroke | 100 mmcorrect |
| Compression ratio | 21correct |
| Injection pressure | 118 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,560 mmcorrect |
|---|---|
| Height | 1,380 mmcorrect |
| Wheelbase | 1,590 mmcorrect |
| Ground clearance | 340 mmcorrect |
| Unladen weight | 1,220 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 9 V/3 Rcorrect |
| Front tyres | 5.00-15 ASFcorrect |
| Rear tyres | 11.2-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (18 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/shibaura 1000 have?
The Ford/shibaura 1000 delivers 25 hp.
How much does the Ford/shibaura 1000 weigh?
The unladen weight is 1,220 kg.
What engine does the Ford/shibaura 1000 have?
2 cylinders, 1,272 cm³ displacement, Diesel.
How fast does the Ford/shibaura 1000 go?
Top speed is 20 km/h.
What are the dimensions of the Ford/shibaura 1000?
2,560 mm × 1,380 mm.
When was the Ford/shibaura 1000 built?
Production years: 1973–1976.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
