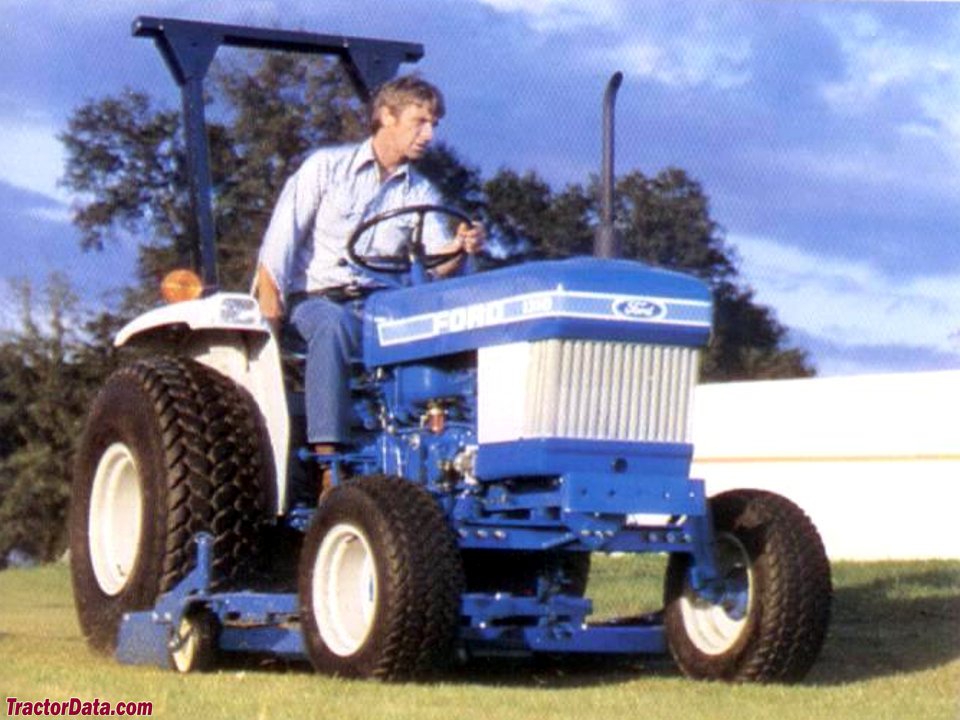

Ford/shibaura 1910 (A)
Built: 1983–1986 · Series: 10 er Compact-Baureihe
More machines from model year 1983
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/Shibaura 10 compact series (1983–1987) – the middle generation of the Japanese compact tractors in Ford blue: 1110 to 2110, the first digits as size class, 10 as series, A for four-wheel drive
The 10 compact series sits between the 100 series of 1973 and the 20 series of 1987 – the middle of the three generations in which Ford sourced compact tractors from Shibaura of Matsumoto in Japan and sold them in North America and Europe under its own name. The type logic: the first digits order the size in ascending order – 1110 the smallest two-cylinder, 1310 to 1710 the three-cylinders, 1910 and 2110 the four-cylinders of up to 38 hp – 10 marks the series, A four-wheel drive, which became the rule on the larger models. The engines are Shibaura diesels of 0.7 to 2.3 litres at 2,500 to 2,800 rpm, air-cooled in the smallest and water-cooled in the other models; the transmissions were manual gearboxes with up to twelve speeds, the hydrostatic transmission only came with the 20 series.
Read on 3 more paragraphs
The register lists 7 versions with 9.6 to 27.9 kW from two- to four-cylinders of 706 to 2,296 cm³, torque from 49 to 121 Nm, unladen weights from 580 to 1,660 kg, lengths from 2,560 to 3,320 mm, widths from 1,090 to 1,560 mm and heights from 1,280 to 2,200 mm.
In North America the 10s are the typical compact tractors of hobby farms and municipalities of their time; their technology lives on in New Holland's compact tractors from Japan to this day.
On used tractors, operating hours, compression and injection, clutch, gearbox and four-wheel-drive clutch, PTO and hydraulics for mower and front loader, tyres count; parts run through New Holland and Shibaura specialists.
Sources: SpecCodex register, model data: Ford/Shibaura 10er-Kompaktbaureihe, Shibaura (IHI Shibaura Machinery, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 32 hp (23.5 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 96.1 Nmcorrect |
| Speed at max. torque | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,702 cm³correct |
| Bore | 84.99 mmcorrect |
| Stroke | 100 mmcorrect |
| Compression ratio | 21correct |
| Injection pressure | 117.6 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,110 mmcorrect |
|---|---|
| Width | 1,460 mmcorrect |
| Height | 2,200 mmcorrect |
| Wheelbase | 1,684 mmcorrect |
| Ground clearance | 340 mmcorrect |
| Unladen weight | 1,379 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 Rcorrect |
| Front tyres | 5.50-16 ASF (A: 6.00-16 AS)correct |
| Rear tyres | 13.6-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17 kW/t (24 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/shibaura 1910 (A) have?
The Ford/shibaura 1910 (A) delivers 32 hp.
How much does the Ford/shibaura 1910 (A) weigh?
The unladen weight is 1,379 kg.
What engine does the Ford/shibaura 1910 (A) have?
3 cylinders, 1,702 cm³ displacement, Diesel.
How fast does the Ford/shibaura 1910 (A) go?
Top speed is 20 km/h.
What are the dimensions of the Ford/shibaura 1910 (A)?
3,110 mm × 1,460 mm × 2,200 mm.
When was the Ford/shibaura 1910 (A) built?
Production years: 1983–1986.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
