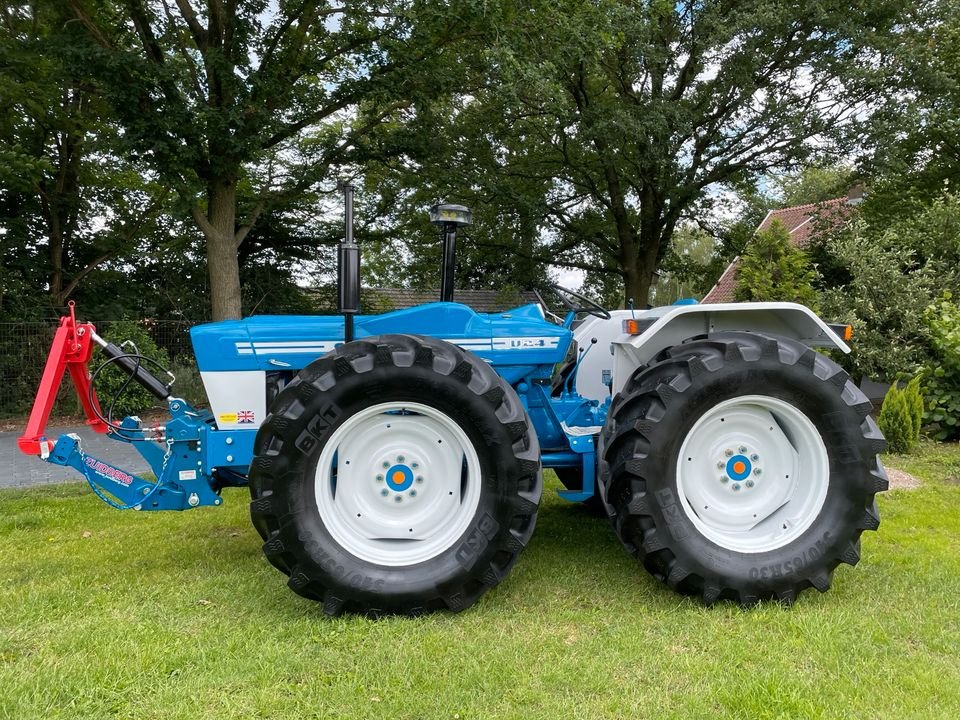

Ford/county SUPER-6 (954)
Built: 1966–1968 · Series: Super-Reihe
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/County Super 654 to 1454 (1970s) – the factory-built four-wheel-drive tractors from Fleet, Hampshire: Ford base with County four-wheel-drive conversion, four- to six-cylinder, 46 to 102 kW, up to 6.9 t
County Commercial Cars of Fleet in Hampshire built four-wheel-drive tractors on a Ford tractor base from the 1950s into the 1980s: the Ford base vehicle supplied engine, gearbox and cab, County added four-wheel drive through its own front-axle and transfer-case system, and the machines were sold through the Ford dealer network as a distinct brand. The 'Super' range of the 1970s stands for the version with twin-fitted front tyres and a reinforced frame; the type designation combines the Ford base (654, 754, 954, 1004, 1454) with the suffix 'Super' or 'Super-6' for the six-cylinder version.
Read on 3 more paragraphs
The register lists 5 versions with engines of 3,814 to 6,582 cm³, 4 to 6 cylinders and outputs of 45.6 to 101.5 kW at rated speeds of 2,100 to 2,200 rpm. Operating weights range from 3,645 to 6,948 kg, lengths from 3,550 to 4,610 mm.
County tractors were, in Britain, the alternative to Ford's own factory four-wheel-drive models and to rivals such as Doe and Muir-Hill, who likewise converted Ford base vehicles; they were used chiefly in forestry, on steep slopes and in coastal areas, where four-wheel drive secured traction that two-wheel drive could not. County ended tractor production in 1984.
On used tractors, operating hours, the condition of the County front drive case and the driveshafts to the front wheel, tyre matching on the front axle, rust on frame and wings and parts supply count: engine and gearbox parts run through Ford/New Holland, the County-specific four-wheel-drive parts are scarcer and run through specialist vintage-tractor dealers.
Sources: SpecCodex register, model data: Ford/County Super-Reihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 95 hp (69.9 kW)correct |
| Rated speed | 2,150 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,409 cm³correct |
| Compression ratio | 16.5correct |
| Injection pressure | 192 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,090 mmcorrect |
|---|---|
| Width | 2,080 mmcorrect |
| Height | 2,260 mmcorrect |
| Wheelbase | 1,818 mmcorrect |
| Ground clearance | 402 mmcorrect |
| Unladen weight | 3,885 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 7 V/2 R or 8 V/2 Rcorrect |
| Front tyres | 11-36 AScorrect |
| Rear tyres | 11-36 AScorrect |
| Top speed | 20 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18 kW/t (70 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/county SUPER-6 (954) have?
The Ford/county SUPER-6 (954) delivers 95 hp.
How much does the Ford/county SUPER-6 (954) weigh?
The unladen weight is 3,885 kg.
What engine does the Ford/county SUPER-6 (954) have?
6 cylinders, 5,409 cm³ displacement, Diesel.
How fast does the Ford/county SUPER-6 (954) go?
Top speed is 20 km/h.
What are the dimensions of the Ford/county SUPER-6 (954)?
4,090 mm × 2,080 mm × 2,260 mm.
When was the Ford/county SUPER-6 (954) built?
Production years: 1966–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
