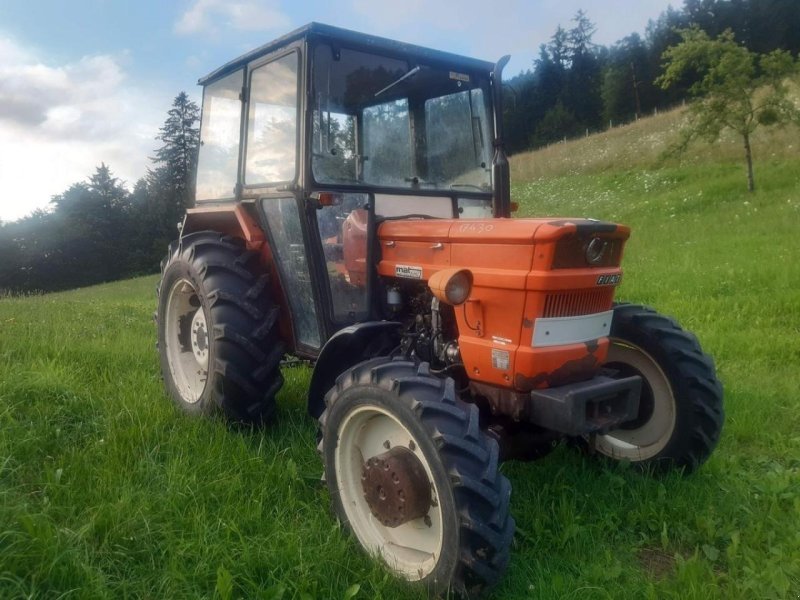

Fiat Trattori 540 V/E
Lata produkcji: 1973–1982 · Seria: NASTRO D'ORO-Baureihe
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 3 |
| Displacement cm3 | 2592 cm3 |
| Drive type | Heckantrieb |
| Fuel | Diesel |
| Gearbox | 8 V/2 R oder 12 V/3 R |
| Ground clearance mm | 330 mm |
| Height mm | 1460 mm |
| Length mm | 3180 mm |
| Power km | 54 KM |
| Power kw | 39.7 kW |
| Rated rpm | 2.600 obr./min |
| Tires front | 5.00-15 ASF (E: 6.00-16 ASF) |
| Tires rear | 11.2-28 AS (E: 13.6-28 AS) |
| Top speed kmh | 20 km/h |
| Weight kg | 1600 kg |
| Wheelbase mm | 1885 mm |
| Width mm | 989 mm |
