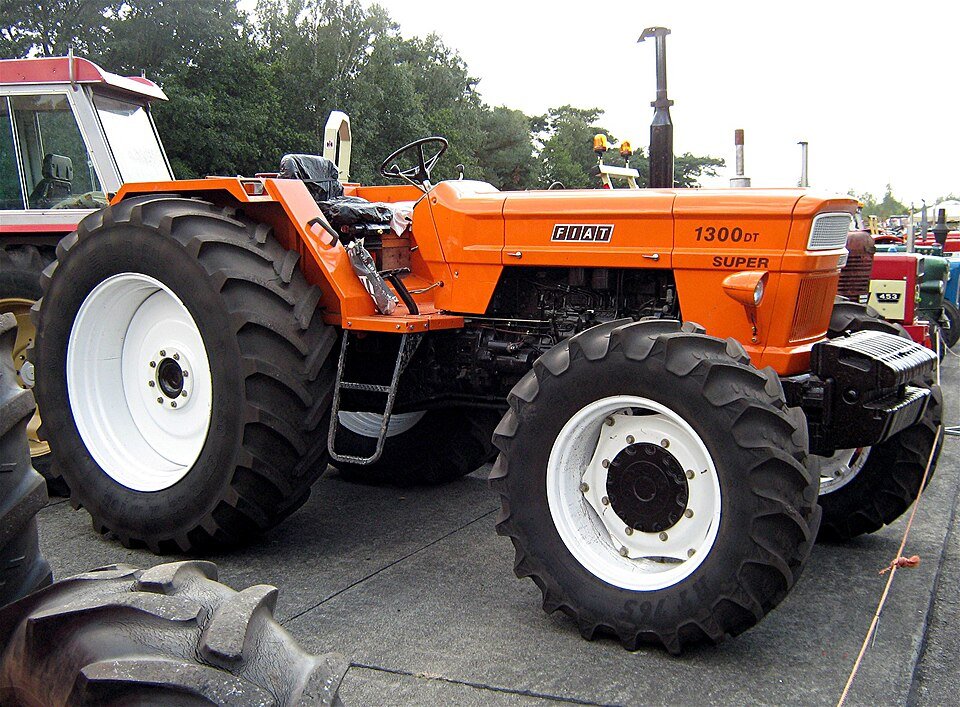

Fiat Trattori 1300 (DT)
Built: 1974–1977 · Series: NASTRO D'ORO-Baureihe
More machines from model year 1974
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat Nastro d'Oro – the 'Golden Ribbon' of 1968: Fiat's standard tractors from the 250 to the 1300
Nastro d'Oro, 'Golden Ribbon', was the name under which Fiat Trattori marketed its completely renewed tractor programme from 1968. The range replaced the boxy post-war models and introduced a uniform design with the characteristic grille, together with Fiat's own engines with two to six cylinders. For years it was Italy's best-selling tractor and, through licences and exports, spread across Europe and beyond.
Read on 3 more paragraphs
The type number follows engine output in coarse steps: the 250 marks the lower end, the 1000 and 1300 the top. Suffixes denote versions – DT stands for Doppia Trazione, i.e. four-wheel drive, V for the narrow vineyard version, Super for the revised successors of the late 1970s, Spezial and E for differing equipment. In the register the models run from 18.4 to 110.3 kW, from 1,559 to 7,412 cm³ of displacement and from 1,220 to 5,650 kg unladen; top speed for all lies between 20 and 30 km/h.
Production of the individual models stretches from 1968 into the 1980s; the late Super types formed the transition to the next generation, with which Fiat eventually merged into Fiatagri and later New Holland.
Used Nastro d'Oro tractors are robust, simply built machines with good parts supply, above all in southern Europe. Check the gearbox and clutch on four-wheel-drive versions and the condition of the cabs, which on many examples were retrofitted.
Sources: SpecCodex register, model data: Fiat Trattori Nastro d'Oro, Fiat Trattori (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 130 hp (95.6 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 482 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,412 cm³correct |
| Bore | 110 mmcorrect |
| Stroke | 130 mmcorrect |
| Compression ratio | 17.4correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,580 mmcorrect |
|---|---|
| Width | 2,170 mmcorrect |
| Height | 2,930 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 635 mmcorrect |
| Unladen weight | 5,650 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 R or 16 V/4 Rcorrect |
| Front tyres | 11.00-16 ASF (DT: 12.4-28 AS)correct |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.9 kW/t (96 kW / 5.7 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat Trattori 1300 (DT) have?
The Fiat Trattori 1300 (DT) delivers 130 hp.
How much does the Fiat Trattori 1300 (DT) weigh?
The unladen weight is 5,650 kg.
What engine does the Fiat Trattori 1300 (DT) have?
6 cylinders, 7,412 cm³ displacement, Diesel.
How fast does the Fiat Trattori 1300 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Fiat Trattori 1300 (DT)?
4,580 mm × 2,170 mm × 2,930 mm.
When was the Fiat Trattori 1300 (DT) built?
Production years: 1974–1977.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
