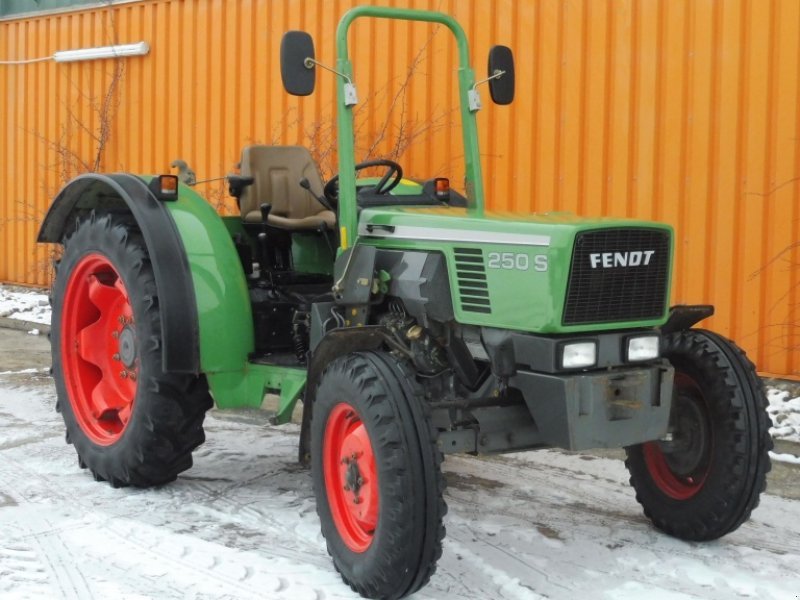

Fendt Farmer 250 S/SA
Built: 1988 ( A: 1987 )–2003 ( A: 2001 ) · Series: Farmer 200er-Reihe
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 200 series – 1980s range with vineyard and four-wheel-drive versions: three- to four-cylinder diesels, 36.6 to 55 kW, V, S and A variants
The Farmer 200 series emerged in the 1980s and, with the 203, 250, 260 and 275 types, spanned a wide range within one series. The letter V marks the narrow-track vineyard version, S the standard-track version, and the appended A suffix the four-wheel-drive variant.
Read on 3 more paragraphs
The register lists here four versions with 36.6 to 55 kW (50 to 75 hp) from three- to four-cylinder engines of 2,826 to 4,086 cm3 displacement. Unladen weight ranges from 1,625 to 2,680 kg, overall length from 2,780 to 3,646 mm. Width stretches from 920 mm on the narrow vineyard version to 1,880 mm on the standard version, and height from 1,280 to 2,320 mm. Torque ranges from 176 to 265 Nm at a rated speed of 2,300 to 2,400 rpm.
With parallel standard and vineyard versions, the Farmer 200 series covered both classic arable farms and specialist viticulture in narrow vine rows, a modular principle typical of Fendt built on shared drivetrain technology and adapted track width.
On a used purchase, the vineyard versions in particular call for checking the frame and axles for distortion from steep-slope work; on all versions, the clutch, gearbox, tightness of the hydraulics and lift linkage, and rust on the frame and mudguards should be checked. Spare parts are still supplied by the Fendt/AGCO network and by specialist viticultural-machinery dealers for the V versions.
Sources: SpecCodex register, model data: Fendt Farmer 200er-Reihe, Fendt (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 50 hp (36.6 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 176 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 19correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,535 mmcorrect |
|---|---|
| Width | 1,740 mmcorrect |
| Height | 2,310 mmcorrect |
| Wheelbase | 2,050 mmcorrect |
| Ground clearance | 378 mmcorrect |
| Unladen weight | 2,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 7.50-18 ( A: 11.2 R 20 )correct |
| Rear tyres | 14.9 R 30correct |
| Top speed | 36 km/hcorrect |
Working data
| Fuel tank capacity | 60 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 838 ( A: 811 )correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/750 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.6 kW/t (37 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 250 S/SA have?
The Fendt Farmer 250 S/SA delivers 50 hp.
How much does the Fendt Farmer 250 S/SA weigh?
The unladen weight is 2,500 kg.
What engine does the Fendt Farmer 250 S/SA have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Fendt Farmer 250 S/SA go?
Top speed is 36 km/h.
What are the dimensions of the Fendt Farmer 250 S/SA?
3,535 mm × 1,740 mm × 2,310 mm.
When was the Fendt Farmer 250 S/SA built?
Production years: 1988 ( A: 1987 )–2003 ( A: 2001 ).
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
