Start › Tractors › Fendt › Farmer 200 series › Farmer 203 V/VA

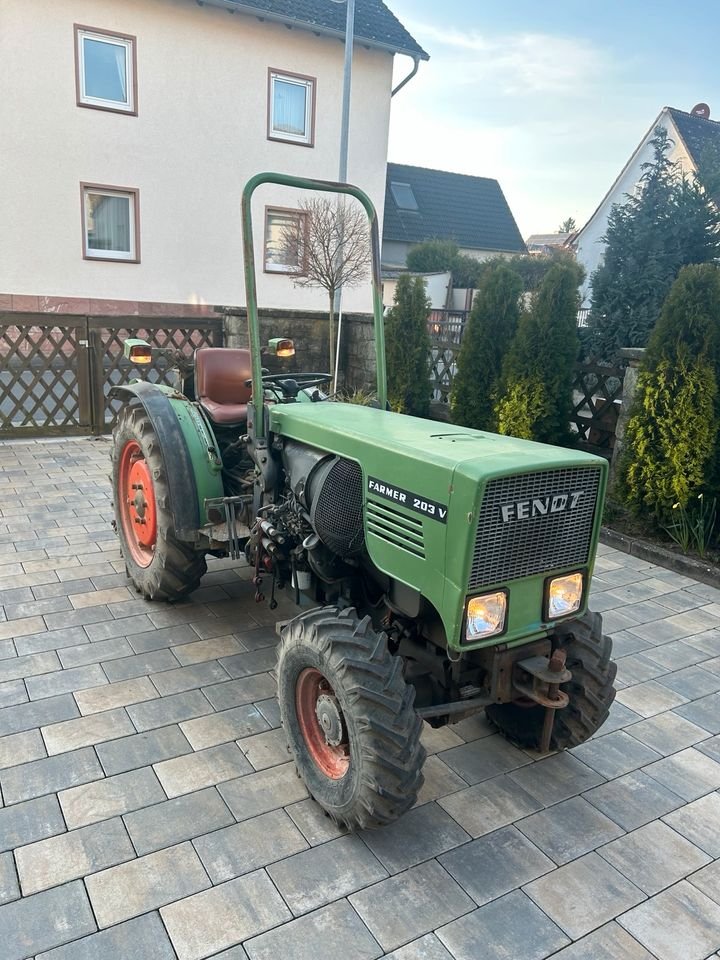

Fendt Farmer 203 V/VA

Built: 1974–1984 ( A: 1985 ) · Series: Farmer 200er-Reihe

More machines from model year 1974

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Farmer 203 V/VA from Fendt is part of the Farmer 200er-Reihe series. Production: 1974–1984 ( A: 1985 ). The engine delivers 50 hp (36.6 kW), has 3 cylinders, with a displacement of 2,826 cm³. Torque is 186 Nm. Rated speed is 2,300 rpm. The machine is 2,780 mm long, 920 mm wide and 1,280 mm high. The unladen weight is 1,625 kg. The wheelbase measures 1,918 mm. Ground clearance is 310 mm. Top speed is 22 km/h. The tank holds 37 litres. Transmission: 13V/4R. The engine is air-cooled. Tyres: front 5.00-16 ( A: 6.00-16 ), rear 11.2/10-24. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The linkage is category I. The PTO runs at 540/1000 rpm. Around 1120 ( A: 2300 ) units were built. The Farmer 200er-Reihe series covers 4 models. Rated output within it ranges from 50 to 75 hp; the Farmer 203 V/VA sits at the bottom of that range with 50 hp. Its immediate neighbours are the Farmer 260 P/PA above it with 60 hp. Unladen weight within it ranges from 1,625 to 2,680 kg; here the Farmer 203 V/VA sits at the bottom of that range with 1,625 kg. 1545 Fendt models across 89 series are on record.

Fendt Farmer 200 series – 1980s range with vineyard and four-wheel-drive versions: three- to four-cylinder diesels, 36.6 to 55 kW, V, S and A variants

The Farmer 200 series emerged in the 1980s and, with the 203, 250, 260 and 275 types, spanned a wide range within one series. The letter V marks the narrow-track vineyard version, S the standard-track version, and the appended A suffix the four-wheel-drive variant.

Read on 3 more paragraphs

The register lists here four versions with 36.6 to 55 kW (50 to 75 hp) from three- to four-cylinder engines of 2,826 to 4,086 cm3 displacement. Unladen weight ranges from 1,625 to 2,680 kg, overall length from 2,780 to 3,646 mm. Width stretches from 920 mm on the narrow vineyard version to 1,880 mm on the standard version, and height from 1,280 to 2,320 mm. Torque ranges from 176 to 265 Nm at a rated speed of 2,300 to 2,400 rpm.

With parallel standard and vineyard versions, the Farmer 200 series covered both classic arable farms and specialist viticulture in narrow vine rows, a modular principle typical of Fendt built on shared drivetrain technology and adapted track width.

On a used purchase, the vineyard versions in particular call for checking the frame and axles for distortion from steep-slope work; on all versions, the clutch, gearbox, tightness of the hydraulics and lift linkage, and rust on the frame and mudguards should be checked. Spare parts are still supplied by the Fendt/AGCO network and by specialist viticultural-machinery dealers for the V versions.

Sources: SpecCodex register, model data: Fendt Farmer 200er-Reihe, Fendt (AGCO, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	50 hp (36.6 kW)correct
Rated speed	2,300 rpmcorrect
Torque	186 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Displacement	2,826 cm³correct
Bore	100 mmcorrect
Stroke	120 mmcorrect
Cooling	air-cooledcorrect

Dimensions and weights

Length	2,780 mmcorrect
Width	920 mmcorrect
Height	1,280 mmcorrect
Wheelbase	1,918 mmcorrect
Ground clearance	310 mmcorrect
Unladen weight	1,625 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	13V/4Rcorrect
Front tyres	5.00-16 ( A: 6.00-16 )correct
Rear tyres	11.2/10-24correct
Top speed	22 km/hcorrect

Working data

Fuel tank capacity	37 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	1120 ( A: 2300 )correct

Other data

Linkage category	Cat Icorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 22.5 kW/t (37 kW / 1.6 t)

Power class: Universal (40–100 hp)

Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt Farmer 203 V/VA have?

The Fendt Farmer 203 V/VA delivers 50 hp.

How much does the Fendt Farmer 203 V/VA weigh?

The unladen weight is 1,625 kg.

What engine does the Fendt Farmer 203 V/VA have?

3 cylinders, 2,826 cm³ displacement, Diesel.

How fast does the Fendt Farmer 203 V/VA go?

Top speed is 22 km/h.

What are the dimensions of the Fendt Farmer 203 V/VA?

2,780 mm × 920 mm × 1,280 mm.

When was the Fendt Farmer 203 V/VA built?

Production years: 1974–1984 ( A: 1985 ).

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
