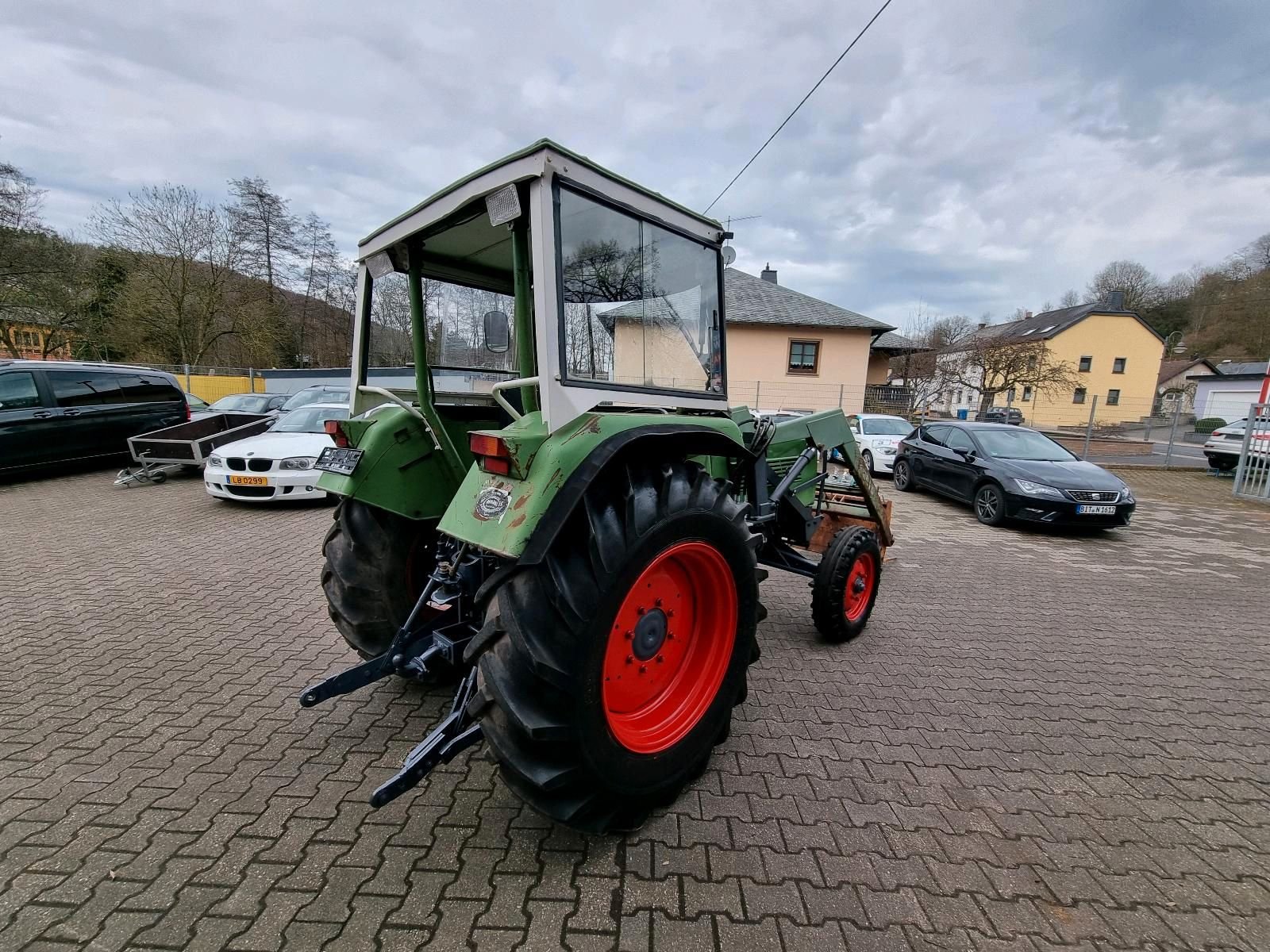

Fendt Farmer 104 LS/LSA
Built: 1978–1982 · Series: Farmer 100er-Reihe
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 100 Series – Mid-Range of the 1970s and 1980s: three- and four-cylinder diesels with 31 to 55 kW (48 to 75 hp), 2,550 to 4,154 cm³ displacement, air- or water-cooled
The Farmer 100 series formed Fendt's mid-range class between compact and large models from 1970 to 1987. Output of the recorded models ranges from 31 to 55 kW, with models rated in horsepower spanning 48 to 75 hp, using three- and four-cylinder engines with displacement from 2,550 to 4,154 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,215 to 3,110 kg, wheelbase from 2,062 to 2,247 mm, and top speed of the listed models spans 25 to 30 km/h. The S and LS suffixes in model names distinguished standard from luxury versions with a more extensive cab.
The Farmer 100 series targeted medium arable and mixed farms and competed at the time with comparable models from Deutz and John Deere. For a used model, check the cab version, as simple open platforms and enclosed LS cabs were offered in parallel.
Within the Farmer 100 series, individual models offered a choice of air or water cooling; water-cooled engines usually reach higher continuous output at the same displacement and tolerate turbocharging better, but require a radiator, water pump, thermostat and regularly changed coolant with frost protection. The PTO in this power class usually ran two-speed at 540 and 1,000 rpm, and the three-point hitch matched category I under ISO 730. When sourcing cooling-system parts on the used market, matching mounts and hoses need attention, as these are not identical between the two versions.
Sources: SpecCodex register, model data: Fendt Farmer 100er-Reihe, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 55 hp (40.1 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 208 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,116 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,680 mmcorrect |
|---|---|
| Width | 1,890 mmcorrect |
| Height | 2,473 mmcorrect |
| Wheelbase | 2,143 mmcorrect |
| Ground clearance | 440 mmcorrect |
| Unladen weight | 2,515 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 13V/4Rcorrect |
| Front tyres | 6.50-20 ( A: 10.5-20 )correct |
| Rear tyres | 13.6/12-36correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 73 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 587 ( A: 286 )correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.9 kW/t (40 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 38% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 104 LS/LSA have?
The Fendt Farmer 104 LS/LSA delivers 55 hp.
How much does the Fendt Farmer 104 LS/LSA weigh?
The unladen weight is 2,515 kg.
What engine does the Fendt Farmer 104 LS/LSA have?
3 cylinders, 3,116 cm³ displacement, Diesel.
How fast does the Fendt Farmer 104 LS/LSA go?
Top speed is 30 km/h.
What are the dimensions of the Fendt Farmer 104 LS/LSA?
3,680 mm × 1,890 mm × 2,473 mm.
When was the Fendt Farmer 104 LS/LSA built?
Production years: 1978–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
