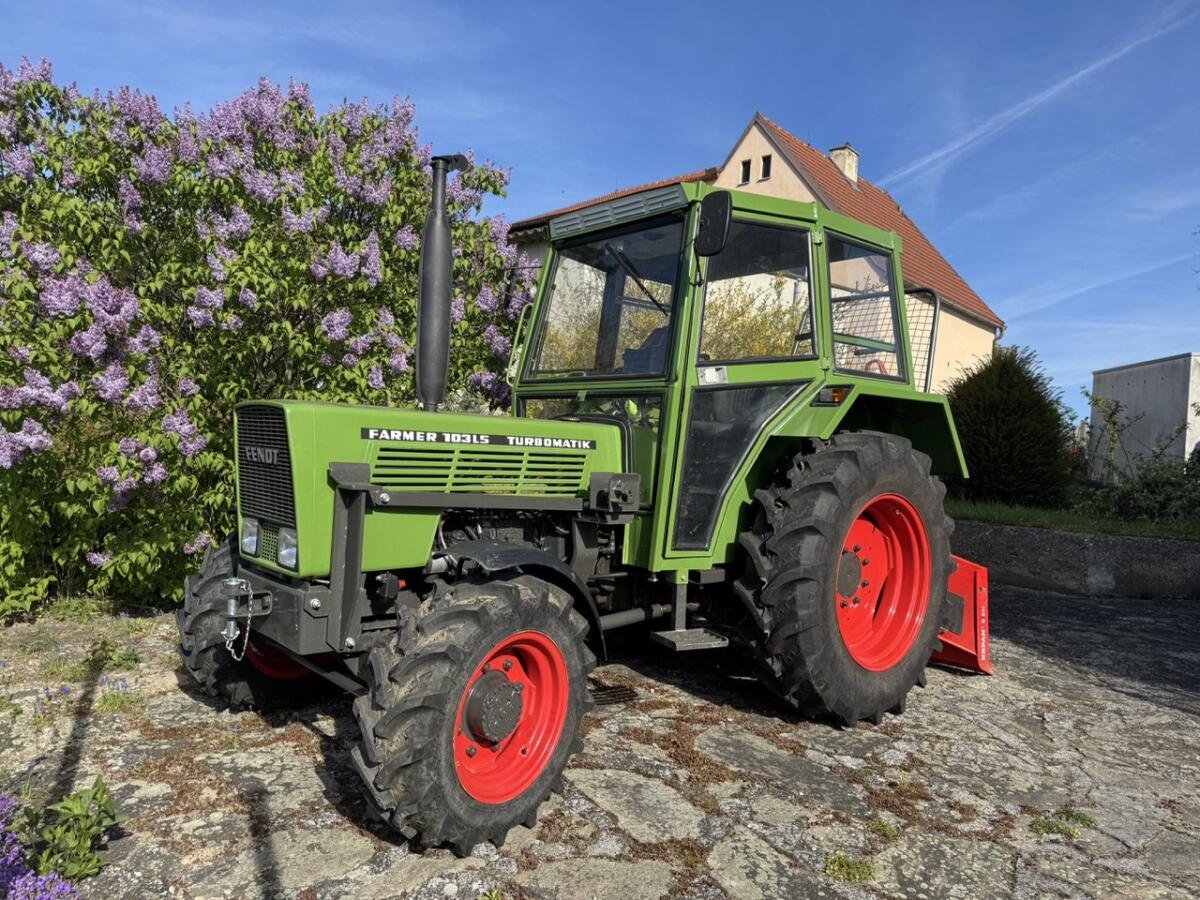

Fendt Farmer 103 LS/LSA – specifications
Built: 1978–1982 · Series: Farmer 100er-Reihe
The Farmer 103 LS/LSA from Fendt is part of the Farmer 100er-Reihe series. Production: 1978–1982. The engine delivers 56 hp (36.6 kW), has 3 cylinders, with a displacement of 3,116 cm³. Rated speed is 2,175 rpm. The machine is 3,680 mm long, 1,890 mm wide and 2,453 mm high. The unladen weight is 2,515 kg. The wheelbase measures 2,143 mm. Ground clearance is 440 mm. Top speed is 30 km/h. The tank holds 73 litres. Transmission: 13V/4R. The engine is water-cooled. Tyres: front 6.00-16 ( A: 10.5-20 ), rear 12.4/11-32 ( A: 12.4/11-36 ). The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. Construction: unit construction (no separate frame). Injection pressure is 180 bar. The linkage is category I. The PTO runs at 540/1000 rpm. Around 946 ( A: 318 ) units were built. The Farmer 100er-Reihe series covers 13 models. Rated output within it ranges from 42 to 75 hp; the Farmer 103 LS/LSA sits in the middle of that range with 56 hp. Its immediate neighbours are the Farmer 104 LS/LSA below it with 55 hp and the Farmer 105 above it with 58 hp. Unladen weight within it ranges from 2,215 to 3,110 kg; here the Farmer 103 LS/LSA sits in the lower part of that range with 2,515 kg. 1545 Fendt models across 89 series are on record.
Data for the version built 1978–1982 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 100 Series – Mid-Range of the 1970s and 1980s: three- and four-cylinder diesels with 31 to 55 kW (48 to 75 hp), 2,550 to 4,154 cm³ displacement, air- or water-cooled
The Farmer 100 series formed Fendt's mid-range class between compact and large models from 1970 to 1987. Output of the recorded models ranges from 31 to 55 kW, with models rated in horsepower spanning 48 to 75 hp, using three- and four-cylinder engines with displacement from 2,550 to 4,154 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,215 to 3,110 kg, wheelbase from 2,062 to 2,247 mm, and top speed of the listed models spans 25 to 30 km/h. The S and LS suffixes in model names distinguished standard from luxury versions with a more extensive cab.
The Farmer 100 series targeted medium arable and mixed farms and competed at the time with comparable models from Deutz and John Deere. For a used model, check the cab version, as simple open platforms and enclosed LS cabs were offered in parallel.
Within the Farmer 100 series, individual models offered a choice of air or water cooling; water-cooled engines usually reach higher continuous output at the same displacement and tolerate turbocharging better, but require a radiator, water pump, thermostat and regularly changed coolant with frost protection. The PTO in this power class usually ran two-speed at 540 and 1,000 rpm, and the three-point hitch matched category I under ISO 730. When sourcing cooling-system parts on the used market, matching mounts and hoses need attention, as these are not identical between the two versions.
Sources: SpecCodex register, model data: Fendt Farmer 100er-Reihe, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56 hp (36.6 kW)correct |
| Rated speed | 2,175 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,116 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,680 mmcorrect |
|---|---|
| Width | 1,890 mmcorrect |
| Height | 2,453 mmcorrect |
| Wheelbase | 2,143 mmcorrect |
| Ground clearance | 440 mmcorrect |
| Unladen weight | 2,515 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 13V/4Rcorrect |
| Front tyres | 6.00-16 ( A: 10.5-20 )correct |
| Rear tyres | 12.4/11-32 ( A: 12.4/11-36 )correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 73 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 946 ( A: 318 )correct |
Other data
| Linkage category | Cat Icorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14.6 kW/t (37 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
